12 6 720 607 090
11.5 Unfasten the two retaining screws and lift the case
clear.
11.6 Remove the flue hood from the appliance by undoing
the three fixing screws and lift the hood clear.

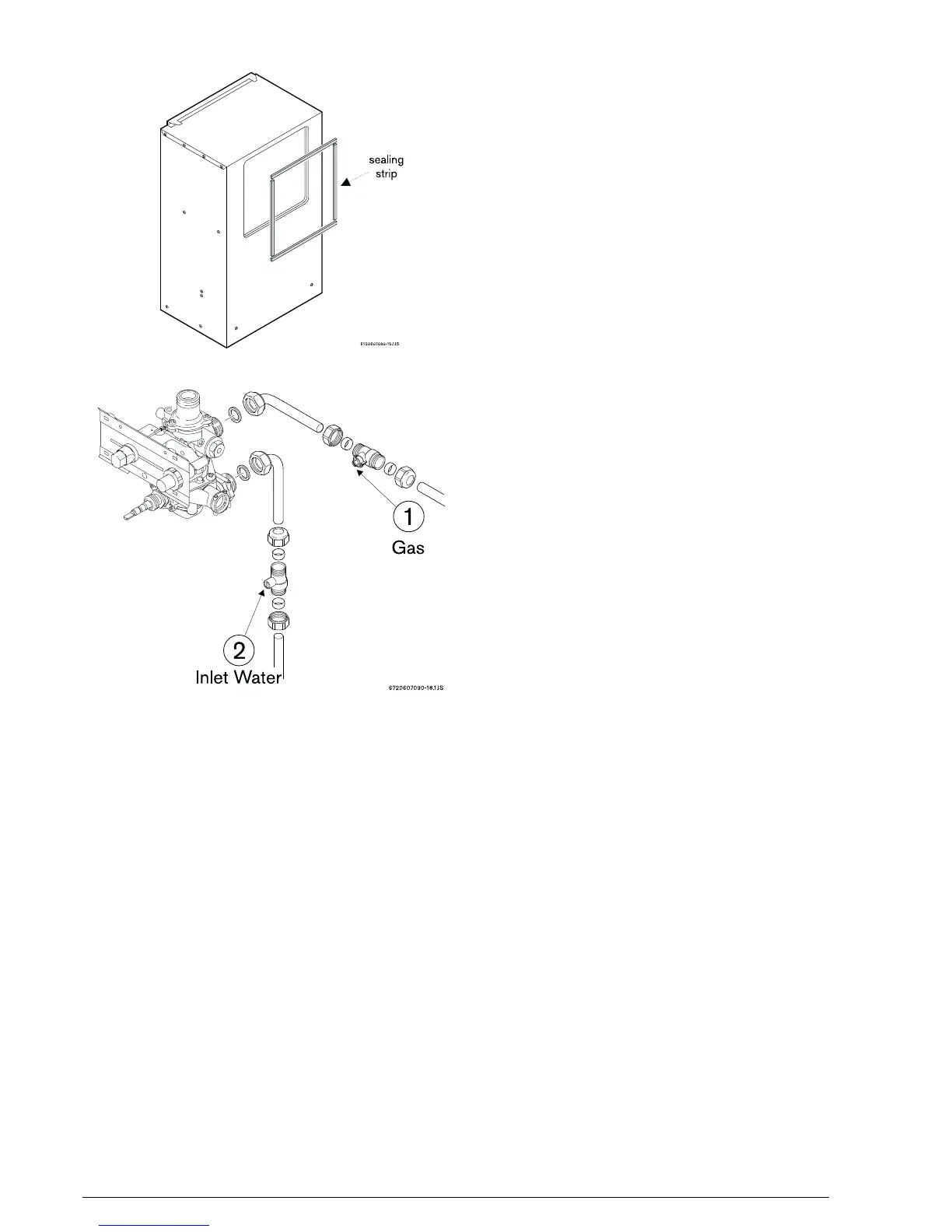

11.7 Place the appliance on its side, obtain the flue
terminal sealing strip from the kit and fit into the recess
around the flue aperture in the back of the appliance.
(fig. 10).
11.8 Lift the appliance and locate onto the four flue terminal
mounting studs. Secure in position using the four slotted
nuts and washers provided.
11.9 Re-fit the flue hood making sure that the spigot of
the collector hood enters the flue terminal duct. Tighten
the three collector hood fixing screws.
Note: The whole of the gas installation should be inspected
and tested for soundness and purged in accordance with
the recommendations of BS 6891.
11.10 Make up the gas supply to the upper connection on
the gas control assembly using the fibre washer provided.
Fit the gas isolation valve as close as possible to the
appliance (fig. 11, pos. 1).
11.11 Connect the appliance to the incoming cold water
supply using the copper Inlet Elbow and Isolation Valve.
A fibre washer is provided (fig. 11, pos. 2).
11.12 Connect the appliance to the domestic water remote
draw off points via the outlet fitting.
11.13 Turn on the water supply to the appliance. Open the
isolation valve on the inlet fitting to the appliance and
then open the highest hot water tap in the installation
until all air is removed from the system.
Fig. 10
Fig. 11
