7. Siting the Appliance
7.1 The appliance is NOT suitable for external installation.
7.2 This appliance is suitable for installation in conjunction
with a “SEDUCT” flue system that complies with the
requirements of BS 5440 - 1 2000 & IS 813:2002.
7.3 The appliance is suitable for replacement onto four
stud flue terminals as shown (check dimensions on page 7).
The following Appliance Models will have a compatible flue
terminal: Severn4/5, Avon, Trent, Thames, Medina/DL,
Medway, Bristol and Mersey. It is advisable to examine the
condition of the flue and replace if necessary.
7.4 If the appliance is to be fixed to a suitable existing
flue terminal (four mounting studs) first isolate and remove
the old appliance. Leave the flue terminal in place. Make
good any damage to the brickwork or plaster around the
terminal. Cut off the existing pipework at a convenient point
below the appliance.
7.5 The appliance does not require any special wall
protection.
7.6 The wall must be capable of supporting the weight of
the appliance. See Technical Data – Table 1.
7.7 If the appliance is to be fitted in a timber framed
building, refer to the Institute of Gas Engineers, “Guide for
gas installations in timber framed housing” IGE/UP/7.
7.8 The minimum clearances required for Installation and
Servicing:
7.9 The minimum clearances required for Operation are:
7.10 The appliance can be installed in a cupboard used
for airing clothes provided that requirements of BS 6798
and BS 5440:2 are strictly followed. See section 9 for further
detail.
7.11 The airing space must be separated from the
appliance space by a perforated non-combustible partition.
Expanded metal or rigid wire mesh are acceptable provided
that the major dimension is less than 13 mm.
See BS 6798.
Above 30 mm
In front 60 mm
Below 75 mm
Right hand side 5 mm
Left hand side 5 mm
Above 30 mm
In front 600 mm
Below 75 mm
Right hand side 5 mm
Left hand side 5 mm

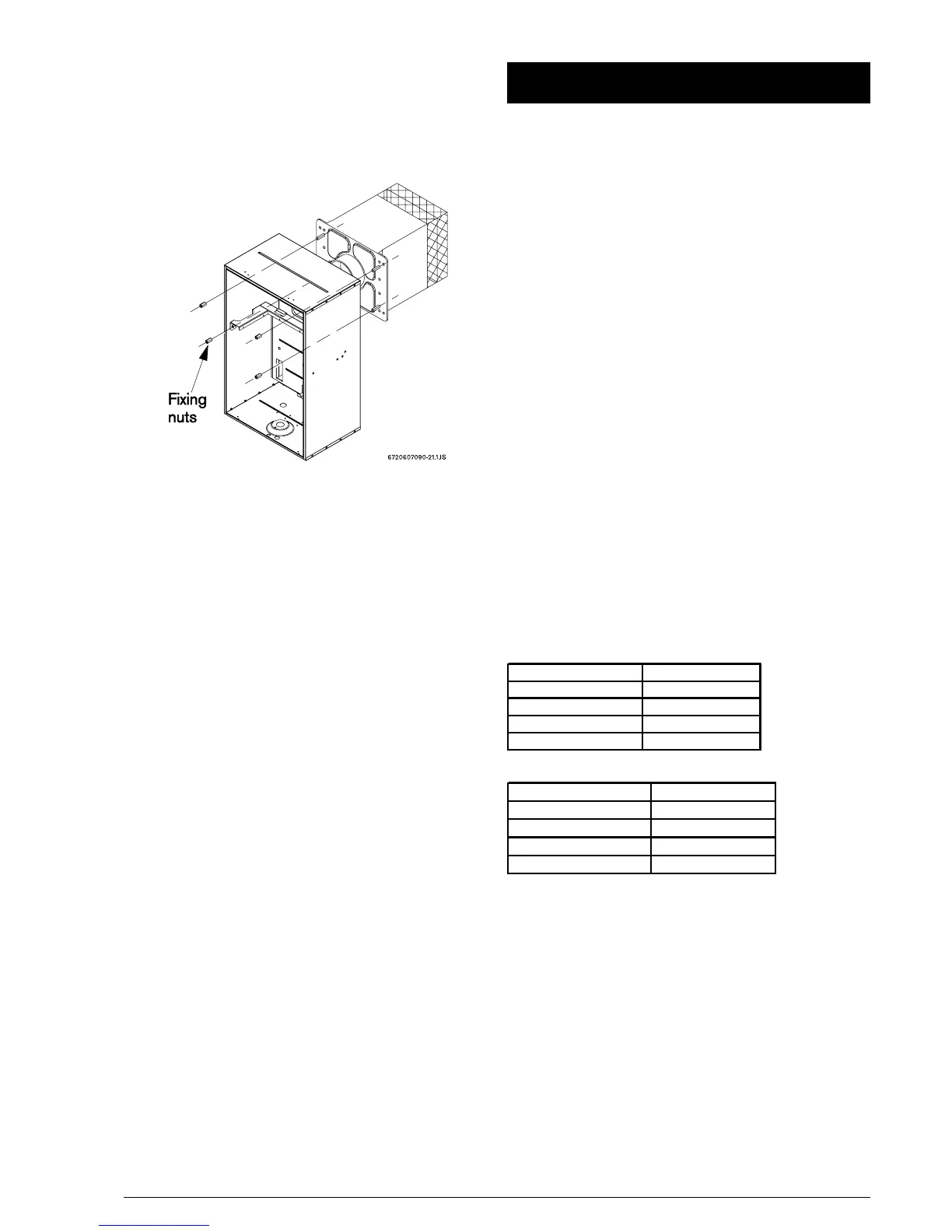

Fig. 6
