INSTALLATION INSTRUCTIONS
TOOLS NEEDED FOR INSTALLATION:
• Screwdrivers: Phillips and fl at head.
• Power Drill: 1/8” (3.2mm) diameter drill bit
• Pencil
• Measuring Tape
• Scissors
• Carpenter’s Level
NOTE: Save the shipping carton and packing materials for future storage or transportation. From
the carton, remove the plastic bag containing the installation hardware kit necessary for the in-
stallation of your air conditioner. Please check the contents of the hardware kit against the corre-
sponding model check list, prior to installation of the unit. See Fig. 1.
ELECTRIC SHOCK HAZARD
To avoid the possibility of personal
injury, disconnect power to the unit
before installing or servicing.
NOTE: Your Room Air Conditioner is designed for easy
installation in a single or double-hung window. This unit
is NOT designed for vertical (slider type) windows and/or
through-the-wall applications.
Because the compressor is located on the controls side of the unit (left side), this side
will be heavier and more awkward to manipulate. Inadequate support on control side of
the unit can result in personal injury and damage to your unit and property. Therefore, it
is recommended that you have someone assist you during the installation of this unit.
CAUTION

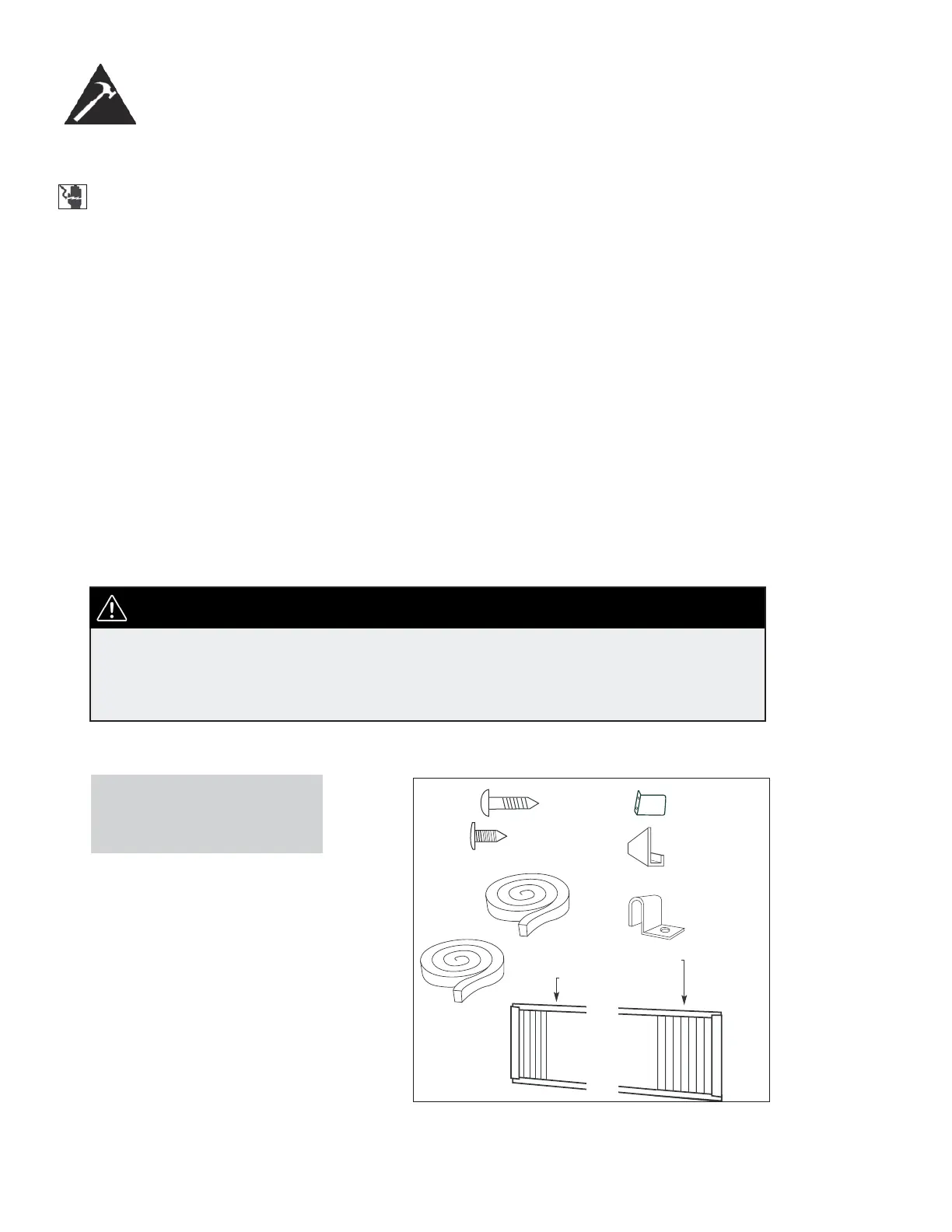

INSTALLATION
HARDWARE
1/2in. (13 mm)
screws (7)
Safety Lock (1)
3/8in. (9.5mm) screws
(4) *Factory installed
on some models
“L” Shaped
mounting
bracket (1)
* Factory installed
on some models
Sash bracket (2)
Adhesive
Foam Seal(1)
Side Curtain LH (1)
Side Curtain RH (1)
Regular
Foam Seal(1)
Fig. 1
