28
Majestic • RUBY25IN, RUBY25IL, RUBY30IN, RUBY30IL, RUBY35IN, RUBY35IL Owner’s Manual • 2542-981 Rev. K • 5/21
Beginning Manufacturing Date: March 2019
Ending Manufacturing Date: Active

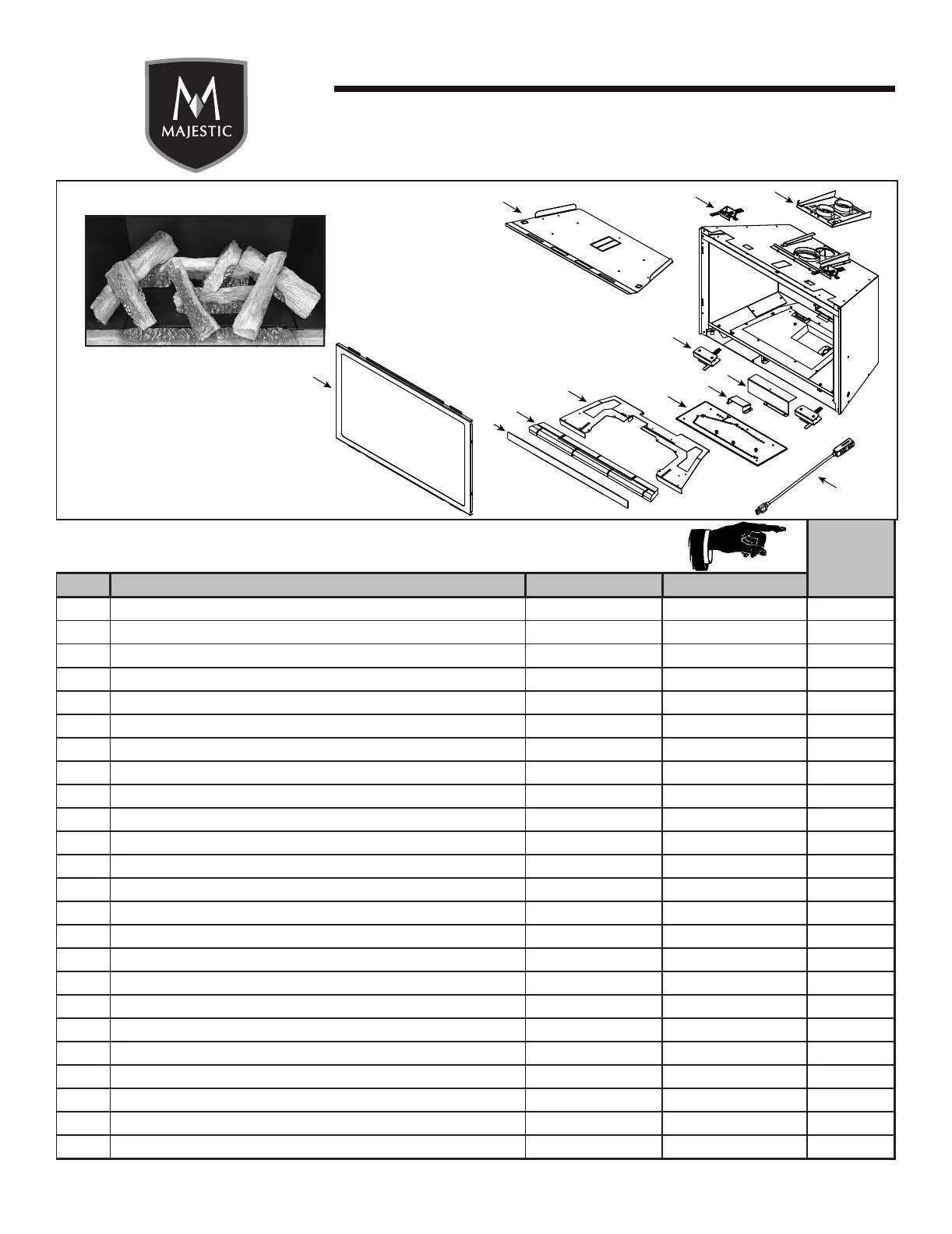

Service Parts
1
2
3
4
5
6
7
8
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor.
Hearth and
Home Technologies does not sell directly to consumers
. Provide model number and serial number when
requesting service parts from your dealer or distributor.
Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
Log Assembly (Hearth Refractory not Included)
LOGS-2542
Y
1 Log 1
SRV2542-711
2 Log 2
SRV2544-715
3 Log 3
SRV2542-712
4 Log 4
SRV2542-715
5 Log 5
SRV2542-717
6 Log 6
SRV2542-714
7 Log 7
SRV2542-717
8 Log 8
SRV2542-718
9 Slide Plate Assembly 2532-014
Tool, Slide Plate (Multi-purpose) 2532-140
Gasket 2532-113
10 Glass Clip Assembly, Top Qty 2 req 2155-046
11 Ba󰀪e, Firebox 2532-138
12 Glass Clip Assembly, Bottom Qty 2 req 2532-009
13 Air Scoop 2532-135
14 Pilot Shield 2532-153
15 Burner Assembly 2542-007 Y
16 Base Pan 2542-130
17 Hearth Refractory
(Not for use with BRICKMI30TB/BRICKMI30CR) SRV2542-704
18 Seal, Glass Frame 2532-122
19
Glass Door Assembly
GLA-2532 Y
20
Power Cord
2201-024 Y
Fan
GFK-160A Y
Additional service part numbers appear on following page.
5/21
Log Set Assembly
Ruby 30” Gas Insert - DV
RUBY30IN, RUBY30IL
9
10
12
13
15
16
17
18
19
11
20
14
