Make Noise MMG - MMG Panel Controls; Input Controls; Mode Controls

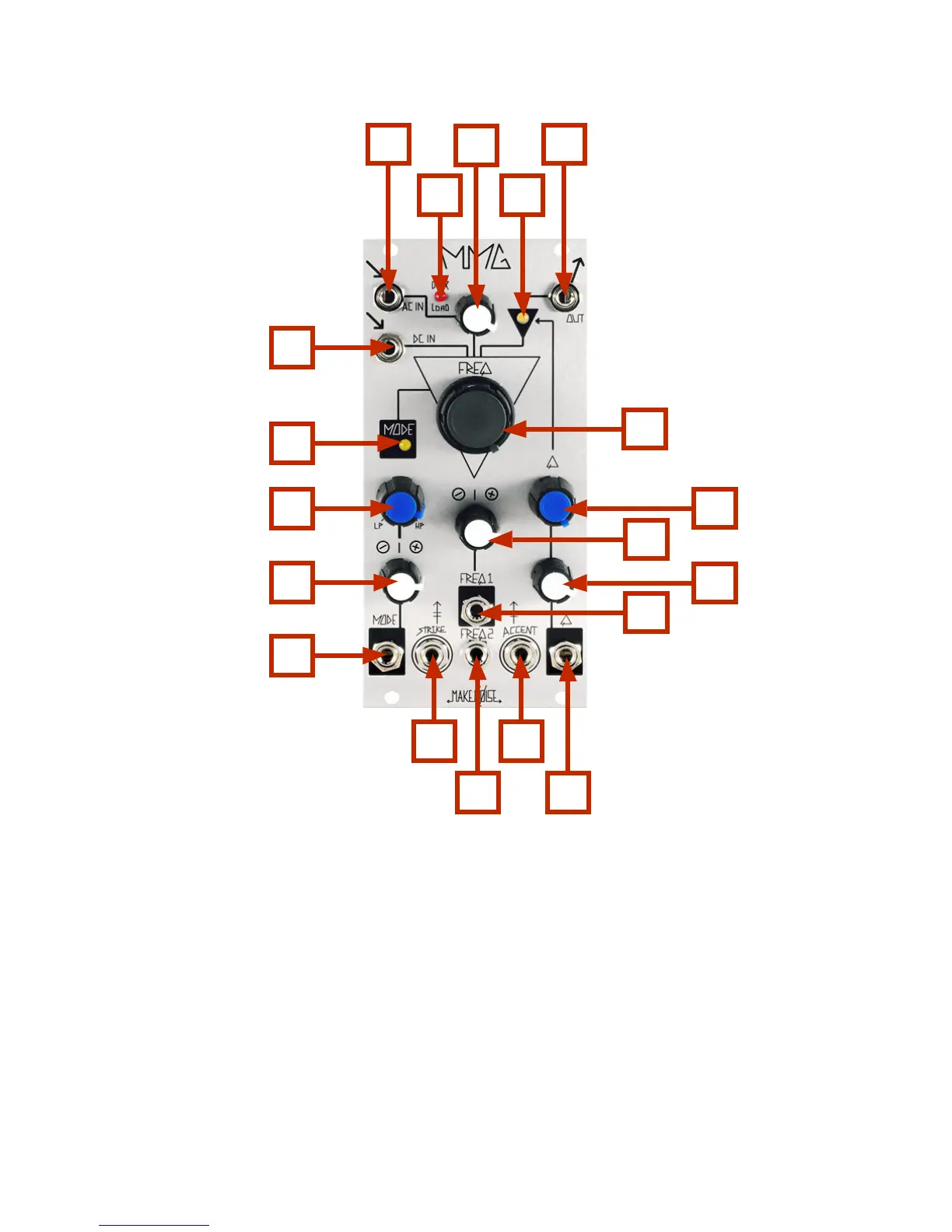

MMG Panel Controls
INPUT
1A DC IN: Direct Coupled Input. Expects 10Vpp.
2A AC IN: AC coupled Input. Expects 10Vpp.
3A Over Load Indicator: Lights when inputs exceed ideal levels for circuit.
4A AC IN Drive: Sets input level for AC IN.
MODE
1B MODE Indicator: Lights as circuit sweeps from LP to HP modes.
2B MODE Panel Control: Uni-polar control for mode of filter. LP at 0% to HP at 100%
3B MODE CV Attenuator: Bi-Polar attenuator for MODE CV input (4B).
4B MODE CV IN: Control signal input for MODE. Normalled to FREQuency control signal. Set MODE CV
attenuator (3B) to 50% to dis-able normalization. Range 8V.
2A
3A
1A
1B
2B
3B
4C
1C
4A
1D
1E
4B
3C
5D
3D
5C
2D
2C
4D
