Makeblock HaloCode - Connect Alligator Clips to HaloCode

1 2
DO NOT use an alligator clip to connect the 3.3V pin to the GND pin, otherwise a short
circuit might happen and HaloCode might be damaged.

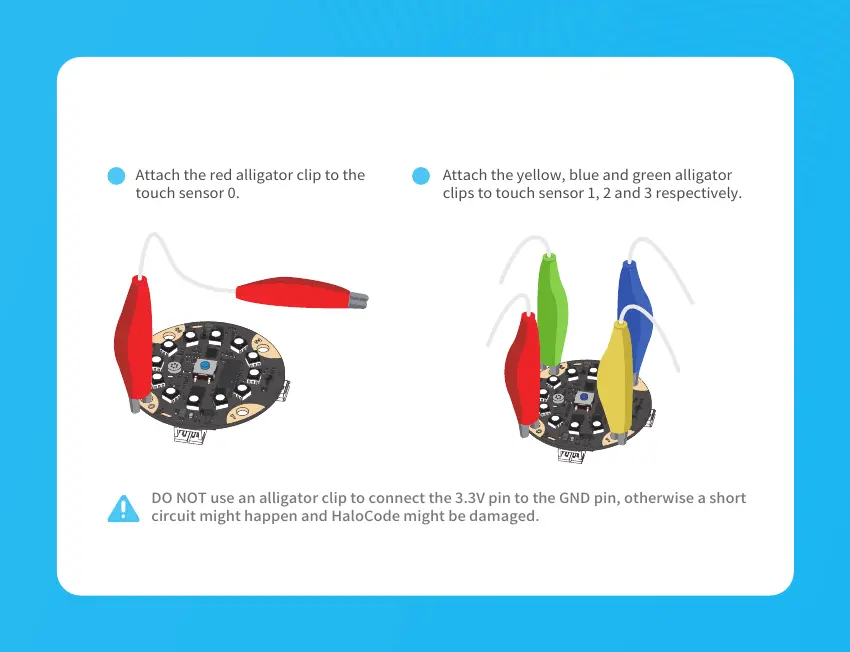

Attach the red alligator clip to the
touch sensor 0.
Attach the yellow, blue and green alligator
clips to touch sensor 1, 2 and 3 respectively.
2 Attach the alligator clips.
