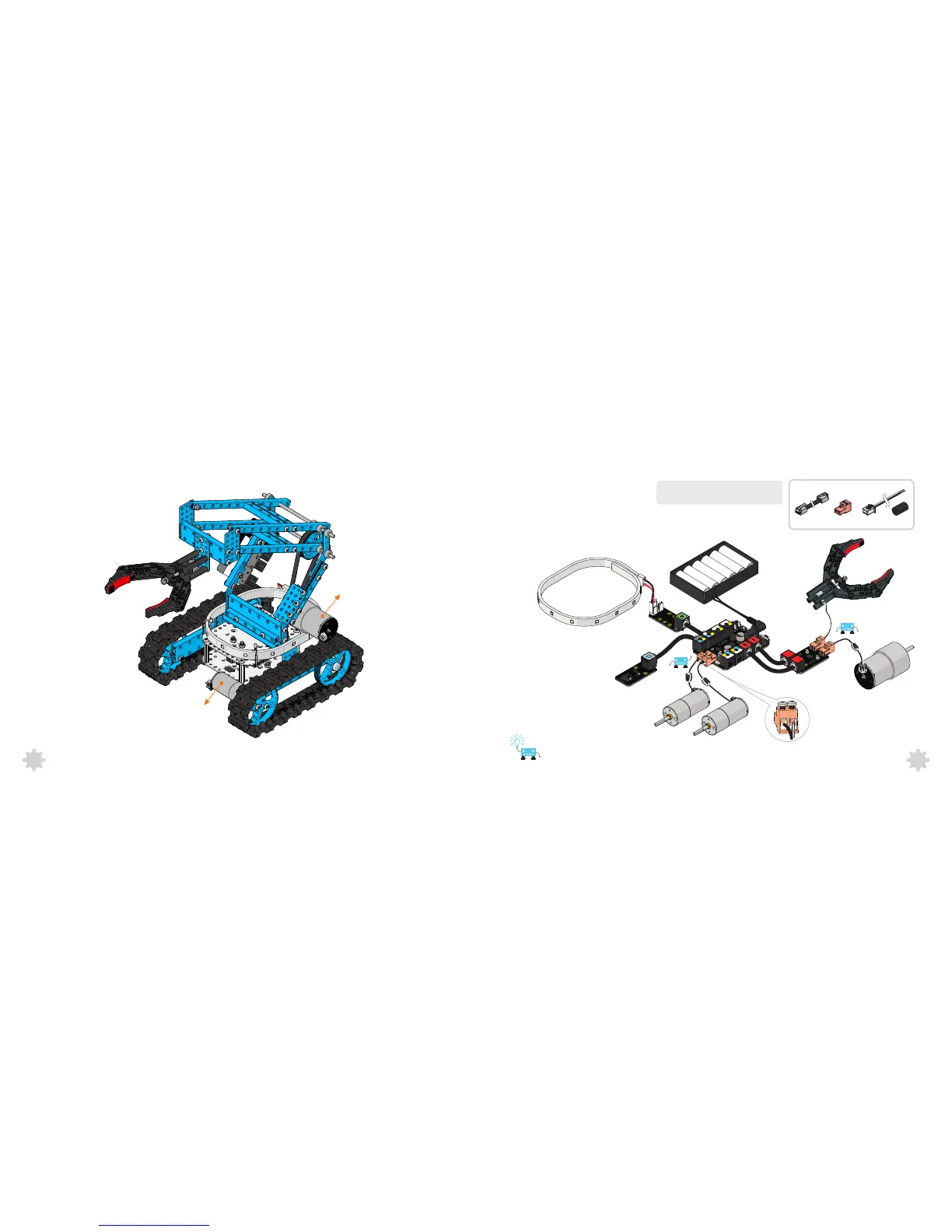

Wiring
To reduce the electromagnetic interference,
please consider to add the ferrite ring to the
wires which connnected to motors.
DC Motor-37
DC Motor-25(M1)
Me Bluetooth Module
Me Dual Motor Driver
DC Motor-37
Me RJ25 Adapter
LED RGB Strip Addressable
DC Motor-25(M2)
DC Motor-25(M1)
?
?
Makeblock Orion
Battery Holder(6×AA battery， )not included
Robot Gripper
22
21
You may need to switch the order of two
wires to correct the rotation direction.
4×
4×
4× 3×
To Next Page
