MakeKit Air:bit 2 - Mounting the Motors

17

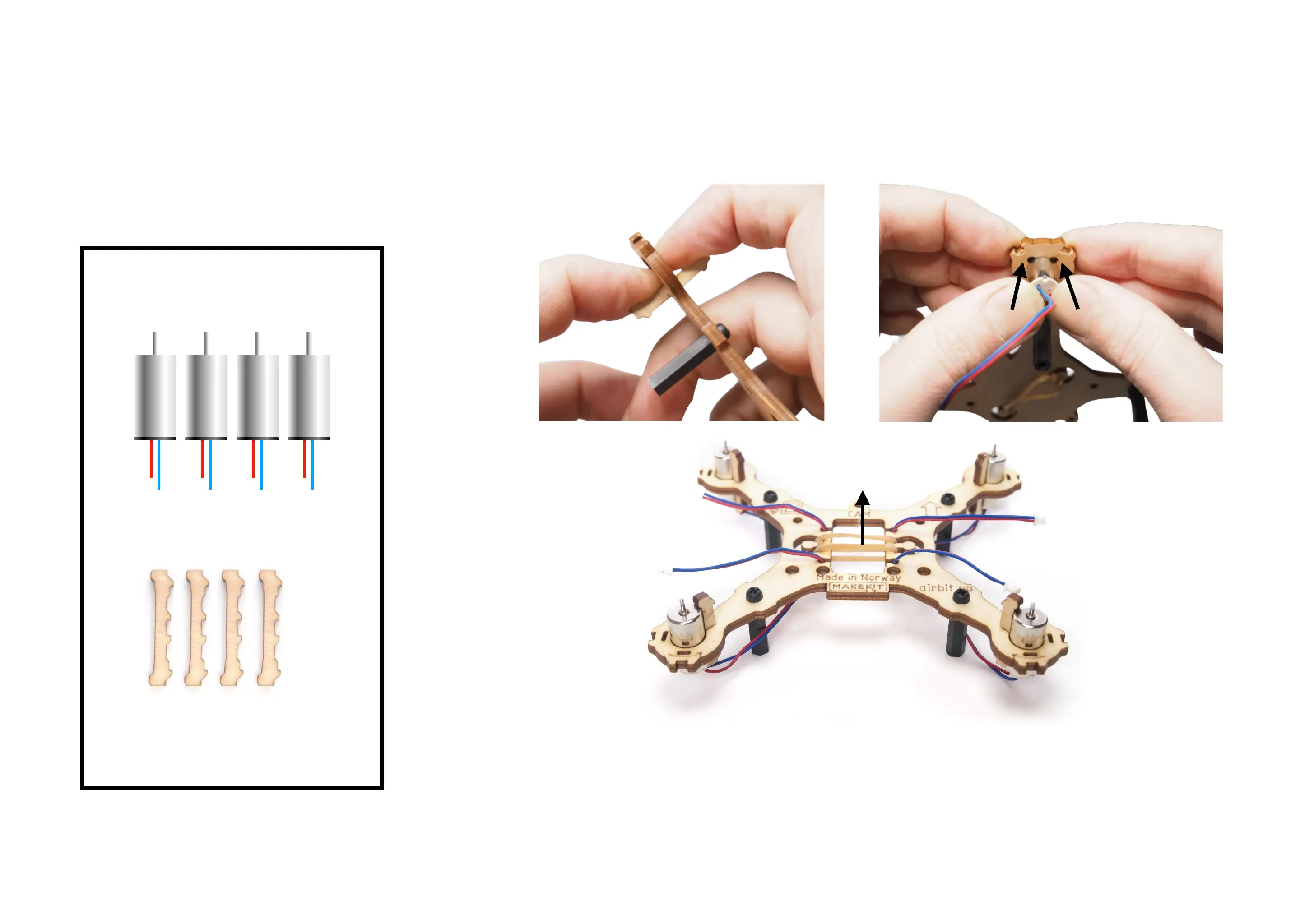

Mounting the motors
4 wedges
4 motors
Parts:
Forward
• First insert a wedge and wiggle it in place into the frame,
• Then push the motor upwards to click into place. (All 4 motors). Use both hands and
both thumbs to push the motor forward.
• Then pull the motor cables trough each notch to tidy them up a bit. Lay the cables to
the sides.
