M2 ASSEMBLY GUIDE
STEP 2:

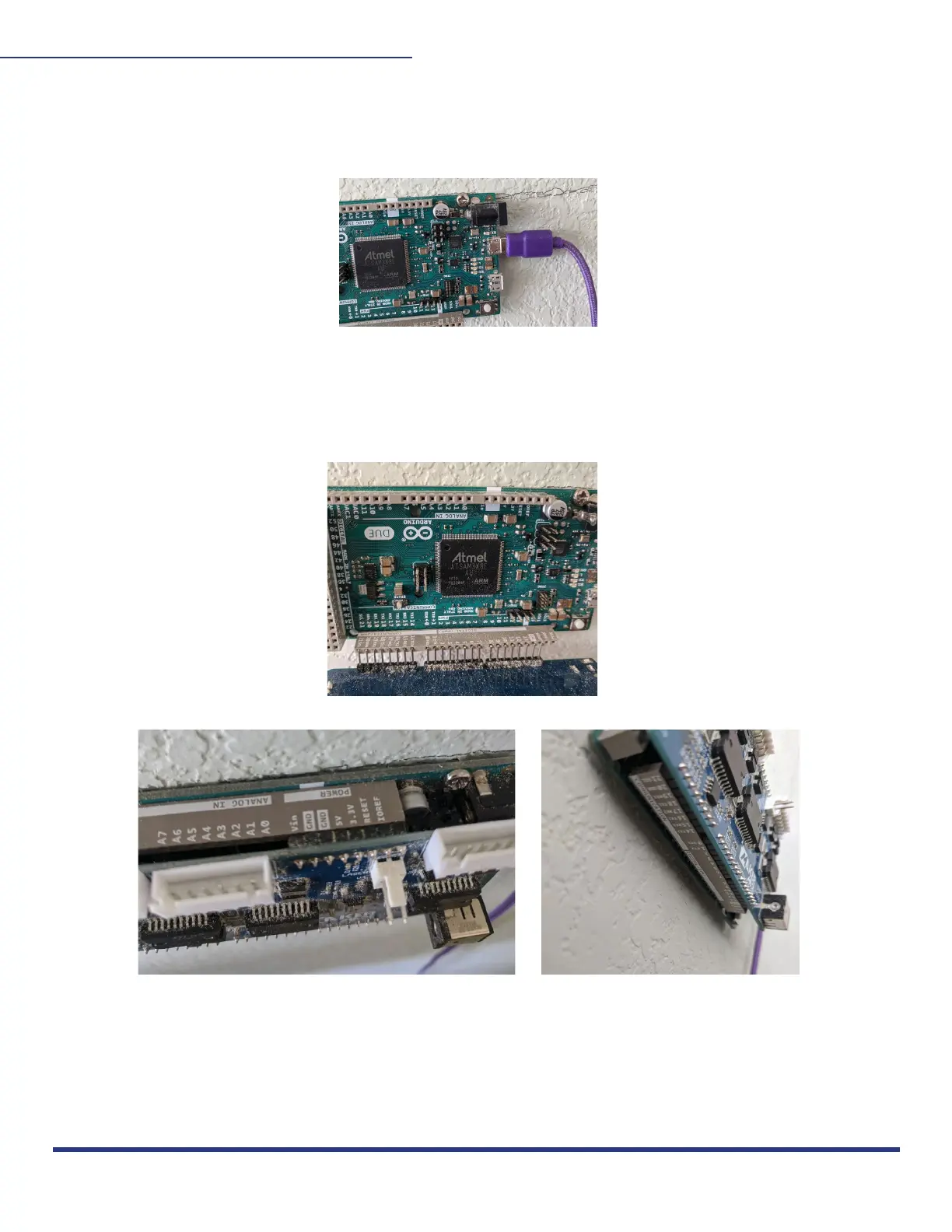

Plug in MicroUSB into top port next to power (RX) (shown here without case)
STEP 2b:
If mounting without case, mount Control Shield to DUE board. Line up the pins as shown and
be careful they don’t bend
Top View Bottom View
