M2 ASSEMBLY GUIDE
STEP 3:

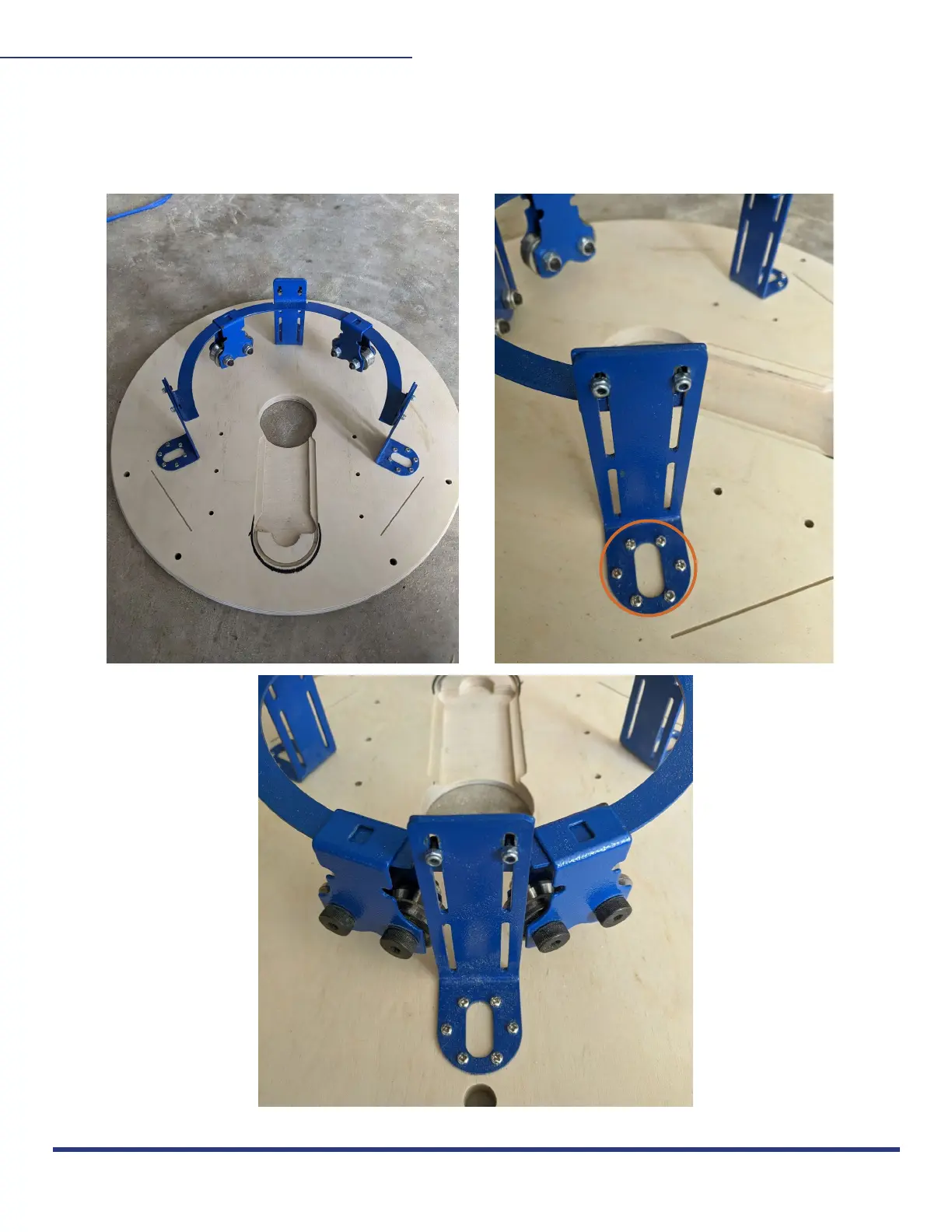

Attach ring to sled through predrilled holes by placing ring on sled centered around router.
Each L-bracket has six small holes, insert a small screw through each to tighten.
Bag G:
Wood Screws
#6 x3/8”
