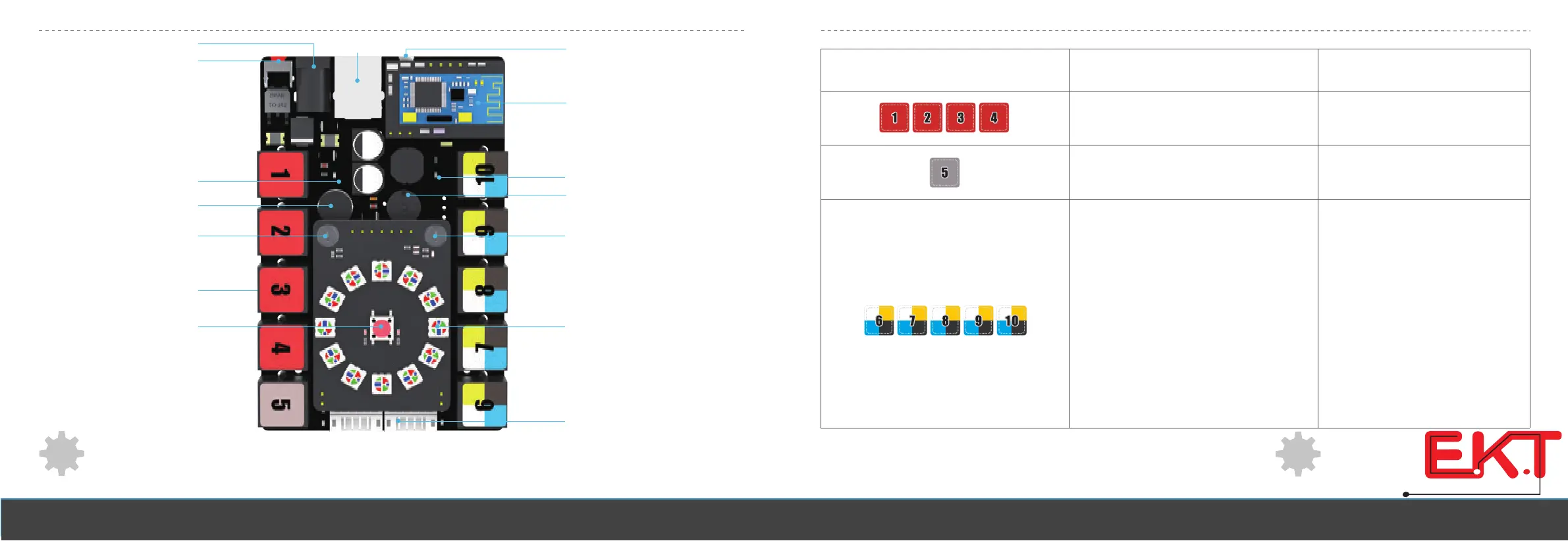

MakerBot mBot Ranger - Me Auriga; Introduction to Interfaces of Me Auriga

Me Auriga
Buzzer
Power Jack
Reset
Bluetooth Module
Light Sensor 2
5V Led Indicator
RGB LED Ring
Encoder Motor Port
Sound Sensor
Power Led Indicator
Light Sensor 1
RJ25 Port
Power Switch
Power Switch
M1
M2
Specifications:
Operating Voltage: 6-12V DC power
Microcontroller: ATmega2560
Dimensions (L*W*H): 100 x 65 x 20mm
06
USB Connector
Introduction to Interfaces of Me Auriga
Tag Color Compatible Module Types
Hardware serial port
(6-12V DC) Driven modules
Typical Me Modules
Me Motor Driver
Me Servo Driver
Me Stepper Driver
Me Bluetooth
Me Bluetooth Module
(Dual-Mode)
Me Ultrasonic Sensor
Me RGB LED
Me Limit Switch
Me 7 Segment Serial Display
Me PIR Motion Sensor
Me Shutter
Me Line Finder
Me Infrared Receiver Decode
Me 3 Axis Accelerometer
and Gyro Sensor
Me Potentiometer
Me Joystick
Me 4Button
Me Sound Sensor
...
One way digital interface
Dual digital interface
I²C port
Dual & one way analog interface
07
