P 4/ 4

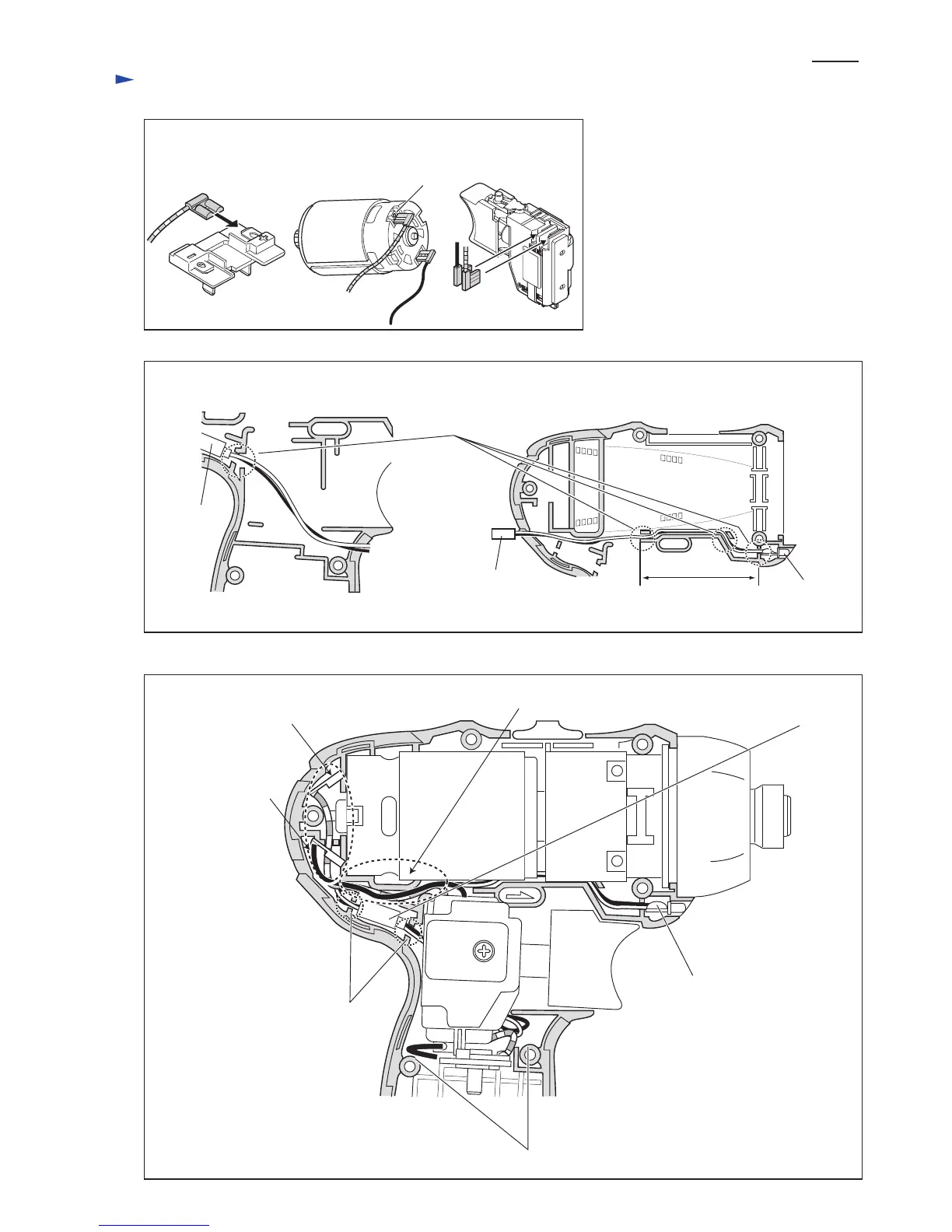

Wiring diagram
Fig. D-2
Fig. D-3
Pay attention to the directions of lead wires and connect Flag receptacles
to electrical parts.
Refer to the following illustration.
Fig. D-4
Before installing Switch in Housing R, route Lead wires as illustrated below and connect two Connectors.
Do not ride their Lead wires on ribs.
Route Lead wires between ribs. Insert Connectors between
their Lead wire holders.
Bend the terminals of DC motor
as illustrated.
Flag receptacles and
Lead wires have to
be far from DC motor.
Do not ride them
on the ribs.
Lead wires holders
Do not ride Lead wires on their embosses.
Face the glue-attached portion of LED
to DC motor side.
Terminal DC motor
Connector
Lead wire holders
LED
Lead wires in this area
must be tight.
red marking
Connector
(To Switch)
