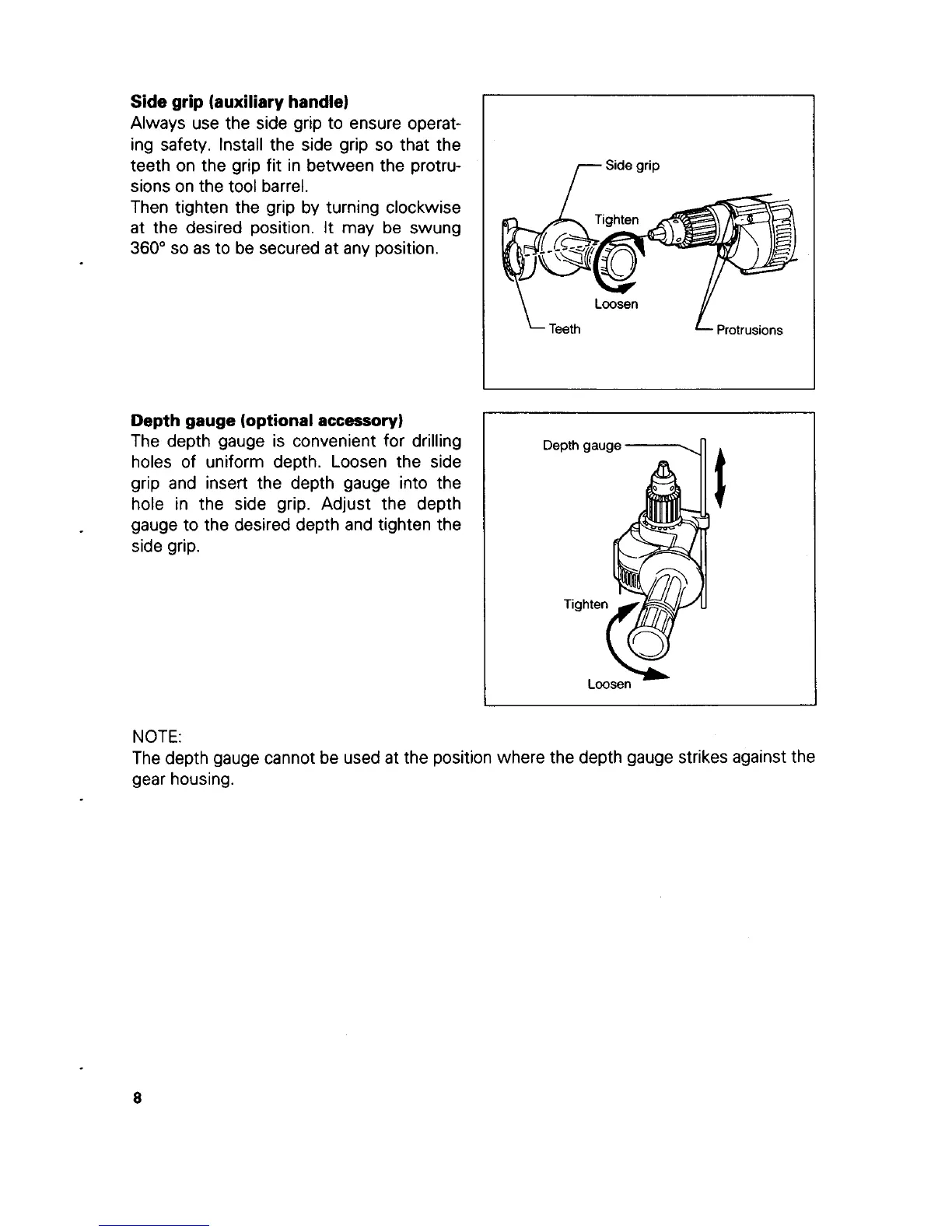

Side grip (auxiliary handle)
I
Always use the side grip to ensure operat-
ing safety. Install the side grip
so
that the
teeth on the grip fit in between the protru-
sions on the tool barrel.
Then tighten the grip by turning clockwise
at the desired position. It
may
be swung
360"
so
as to be secured
at
any position.
Depth gauge (optional accessory)
The depth gauge is convenient for drilling
holes
of
uniform depth. Loosen the side
grip and insert the depth gauge into the
hole in the side grip. Adjust the depth
gauge to the desired depth and tighten the
side grip.
.
NOTE:
r
Side
grip
Protrusions
Teeth
L
The depth gauge cannot be used at the position where the depth gauge strikes against the
gear housing.
8
