Makita DP4010 User Manual

5

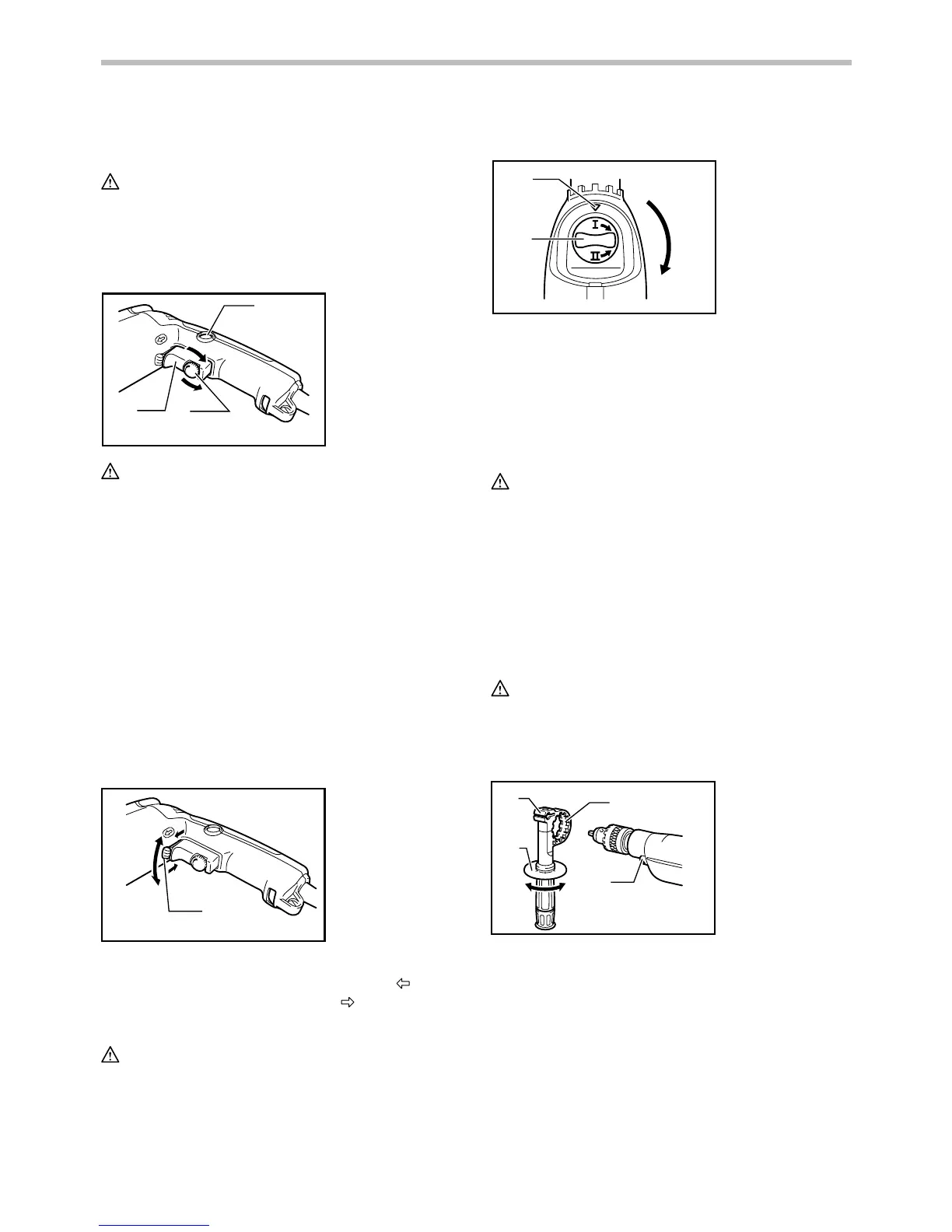

FUNCTIONAL DESCRIPTION
CAUTION:
• Always be sure that the tool is switched off and
unplugged before adjusting or checking function on
the tool.
Switch action
1
3
5
2
4
002990
CAUTION:
• Before plugging in the tool, always check to see
that the switch trigger actuates properly and returns
to the "OFF" position when released.
To start the tool, simply pull the switch trigger. Tool speed
is increased by increasing pressure on the switch trigger.
Release the switch trigger to stop.
For continuous operation, pull the switch trigger and then
push in the lock button.
To stop the tool from the locked position, pull the switch
trigger fully, then release it.
A speed control screw is provided so that maximum tool
speed can be limited (variable). Turn the speed control
screw clockwise for higher speed, and counterclockwise
for lower speed.
Reversing switch action
A
B
1
002991
This tool has a reversing switch to change the direction of
rotation. Move the reversing switch lever to the
position
(A side) for clockwise rotation or the
position (B side)
for counterclockwise rotation.
CAUTION:
• Always check the direction of rotation before operation.
• Use the reversing switch only after the tool comes
to a complete stop. Changing the direction of
rotation before the tool stops may damage the tool.
Speed change
1
2
002691
Two speed ranges can be preselected with the speed
change knob.
To change the speed, turn the speed change knob so that the
arrow on the tool body points toward the "I" position on the
knob for low speed or "II" position for high speed.
If it is hard to turn the knob, first turn the chuck slightly in
either direction and then turn the knob again.
CAUTION:
• Use the speed change knob only after the tool
comes to a complete stop. Changing the tool speed
before the tool stops may damage the tool.
• Always set the speed change knob to the correct
position. If you operate the tool with the speed
change knob positioned halfway between the "I"
and "II" position, the tool may be damaged.
ASSEMBLY
CAUTION:
• Always be sure that the tool is switched off and
unplugged before carrying out any work on the tool.
Installing side grip (auxiliary handle)
1
2
3
4
002693
Always use the side grip to ensure operating safety.
Install the side grip so that the teeth on the grip fit in
between the protrusions on the tool barrel.
Then tighten the grip by turning clockwise at the desired
position.
NOTE:
• The depth gauge cannot be used at the position
where the depth gauge strikes against the gear
housing.
1. Grip base
2. Side grip
(auxiliary
handle)
3. Teeth
4. Protrusions
1. Arrow
2. Speed change
knob
1. Reversing switch
lever
1. Lock button
2. Speed control
screw
3. Switch trigger
4. Higher
5. Lower
