English - 8 -
When observing the safety rules and using the original accessories, this hot air tool is intended for all appli-
cations with hot air that are listed in these operating instruction
A falling down nozzle can set an object on fire. Nozzles must be mounted firmly and secure on the
unit.
Touching a hot nozzle can lead to serious burns. Before attaching or replacing a nozzle, allow the
unit to cool down completely or use a suitable tool.
A hot nozzle can set a surface on fire. Place down hot nozzles only on fire-proof surfaces.
An incorrect or defective nozzle can lead to heat accumulation and damage the unit. Use only origi-
nal nozzles according to the table that are suitable for your unit.

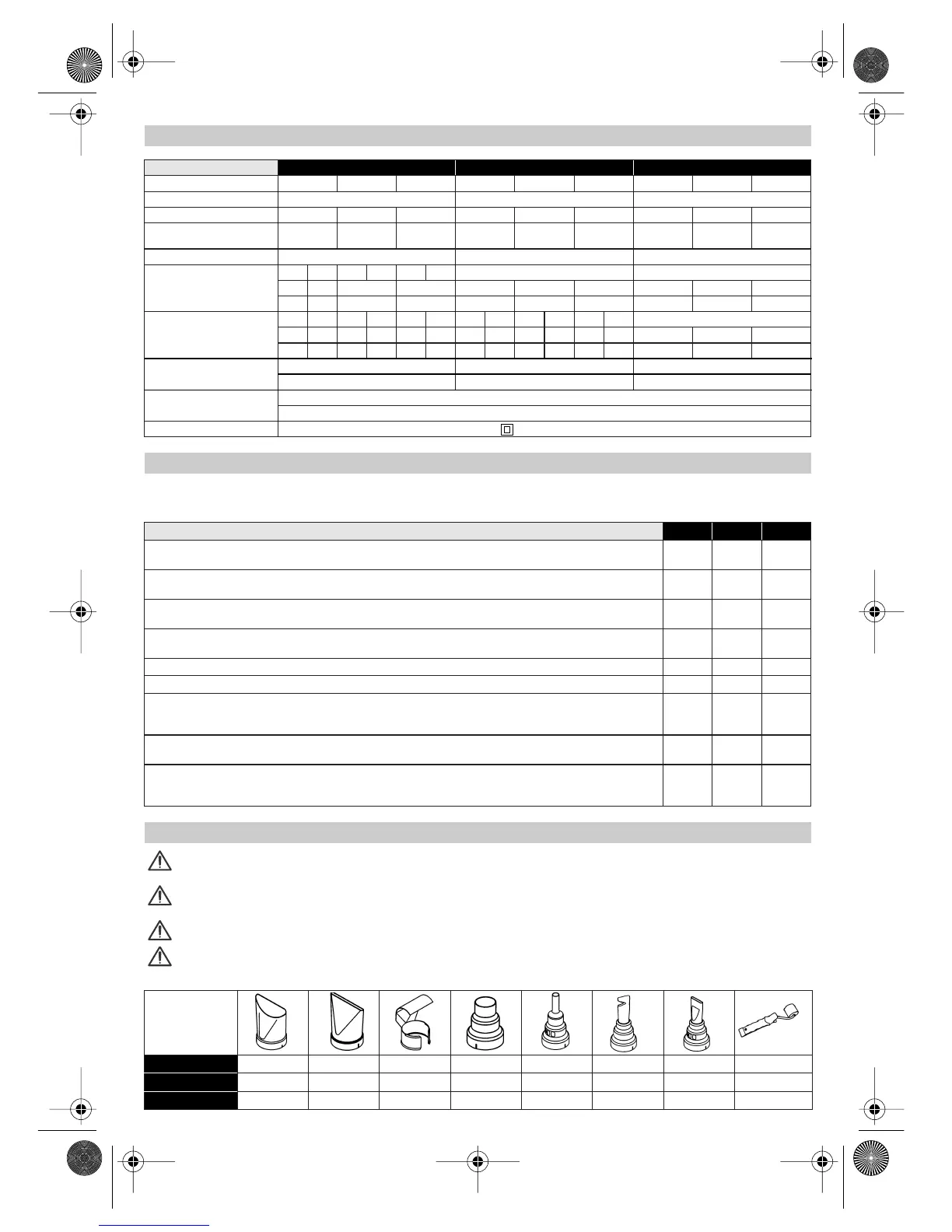

Technical Data
A B C
Voltage [V] 230 120 100 230 120 100 230 120 100
Frequency [Hz] 50/60 50/60 50/60
Power [W] 1600 1200 1100 1800 1400 1200 2000 1500 1300
Current con-
sumption
[A]
710118121291313
Switch positions 0 - l - ll 0 - l - ll 0 - l
Position I II I II I II Manually adjustable Electronically adjustable and controlled
Temperature [°C] 350 500 500 500 100–550 80–550 80–550 80–650 80–650 80–650
[°F] 660 930 930 930 210–1020 180–1020 180–1020 180–1200 180–1200 180–1200
Position I II I II I II I II I II I II Electronically adjustable
Air flow [l/min] 350 500 250 400 250 400 250 550 250 450 250 450 200–550 200–500 200–500
[cfm] 12.5 17.5 8.8 14 8.8 14 8.8 19.5 8.8 16 8.8 16 7–19.5 7–17.5 7–17.5
Weight
with cord
[kg] 0.68 0.74 0.74 0.72 0.78 0.78 0.78 0.84 0.84
[lbs] 1.5 1.63 1.63 1.6 1.72 1.72 1.72 1.85 1.85
Dimensions
L x B x H
[mm] 230 x 80 x 240
[inch] 9.1 x 3.2 x 9.5
Protection class II/ (Double insulated)
Intended Use
Applications A B C
Shrinking of shrinkdown tubing, solder connectors and solder terminals, packaging and electrical
components.
GGG
Deforming of articles made from acrylic, PVC, and polystyrene, tubing, plates and profiles, as well as
moist woods.
GGG
Welding of thermoplastic polymer, flooring materials of PVC and linoleum, PVC-coated fabric, tar-
paulins and foils.
GG
Soldering of tin, special silver solder, SMD elements, cable lugs, and for loosening soldered connec-
tions.
GG
Paint removal - Removal of old and even thick coatings of oil paint, varnish and synthetic plaster. GGG
Drying of colour shade samples, filler, adhesives, construction joints and stucco forms. GGG
Joining adhesives – Large-surface gluing with contact adhesives, activation of pressure-sensitive
adhesives, acceleration of bonding processes, releasing of bonding points as well as releasing or
bonding of edge band or venee.
GGG
Defrosting of icy stairs and steps, door locks, trunk lids, car doors or water pipes, as well as for
defrosting refrigerators and ice boxes.
GGG
Disinfection – With hot air of 600 °C, you can quickly rid animal sties/stables of bacteria. Wood-
worm infestation can be controlled (Caution: Danger of fire! Do not heat up the wooden surface exces-
sively).
GG
Attaching the Nozzle onto the Heating-element Tube 3
A
GGG
B
GGGG
C
GGGGGGG G
WELDY.book Seite 8 Mittwoch, 17. Mai 2006 1:02 13
0.58
1.28
0.60
1.32
0.63
1.39
Weight
without cord
Seite 8 /21.04.2009
