ENGLISH

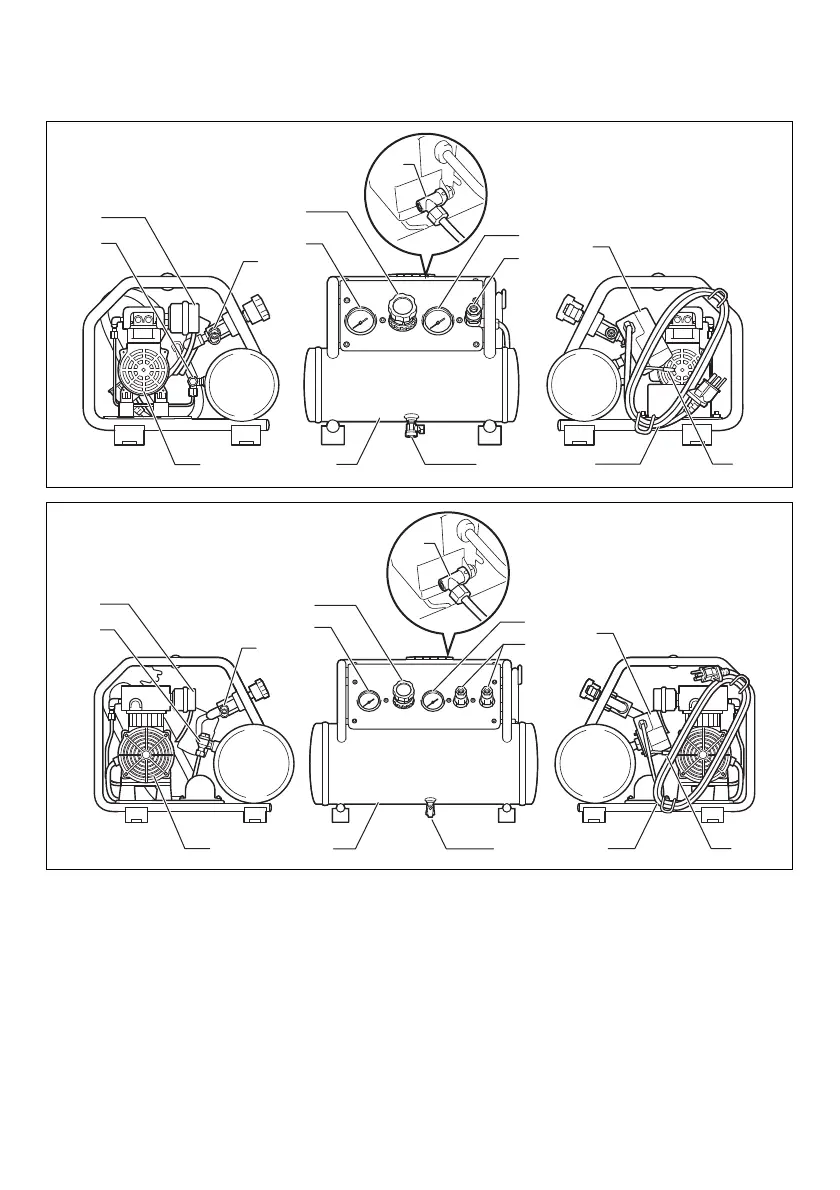

Parts description
1. Air filter (Air intake)
2. Check valve
3. Safety valve
4. Air compressor pump
5. Regulator
6. Tank pressure gauge
7. Outlet pressure gauge
8. Quick coupler
9. Air tank
10. Drain valve
11. Pressure switch
12. Power cord
13. ON/AUTO-OFF switch
14. Pressure switch unloading valve
Note:
The shape of the drain valve differs between MAC100Q and MAC210Q.
2
1
3
6
5
7
8
9 10
11
1312
14
4
MAC100Q, MAC210Q
2
1
3
6
5
7
9 10
11
1312
14
8
4
MAC320Q
