NOTE:

• If you remove the saw blade without rotating the

blade clamp sleeve fully, the sleeve may not be

fixed. In this case, rotate the blade clamp sleeve

fully, then make the sleeve fixed at the released

position.

For Model XRJ04

014045

014048

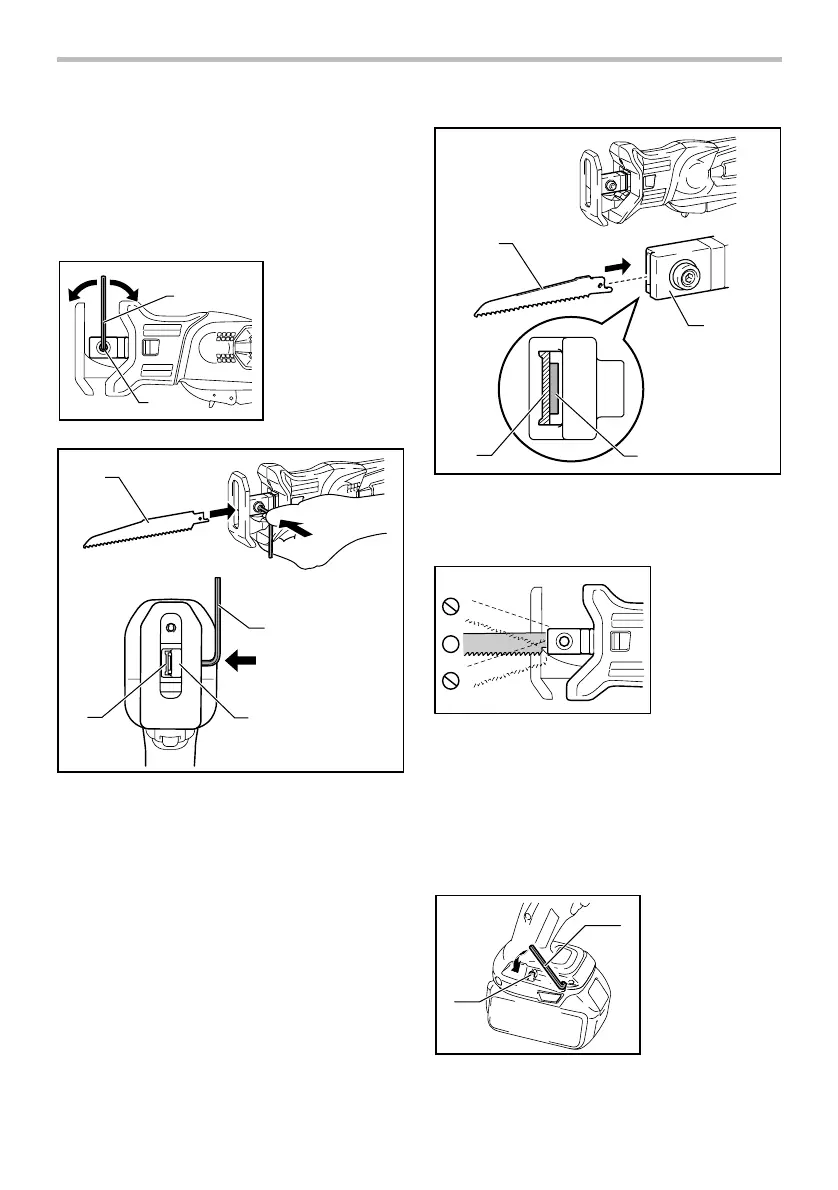

To install the saw blade, loosen the bolt by hex wrench.

When installing a recipro saw blade, press the bolt with

the hex wrench to open the slot during inserting the

blade.

014047

014086

You can use both jig saw blades (B type) and recipro

saw blades according to your work. Insert the saw blade

straight into the blade clamp and tighten it by hex

wrench. Pull the saw blade lightly to make sure that the

saw blade does not fall off during operation.

To remove the saw blade, follow the installation

procedure in reverse.

Hex wrench storage

014202

When not in use, store the hex wrench as shown in the

figure to keep it from being lost.

1. Hex wrench

2. Protrusion

1. Saw blade

2. Blade clamp

3. Hole for recipro saw blade

4. Hole for jig saw blade

1. Recipro saw blade

2. Hex wrench

3. Hole for recipro saw blade

4. Blade clamp

1. Hex wrench

2. Bolt

3. Loosen

4. Tighten
