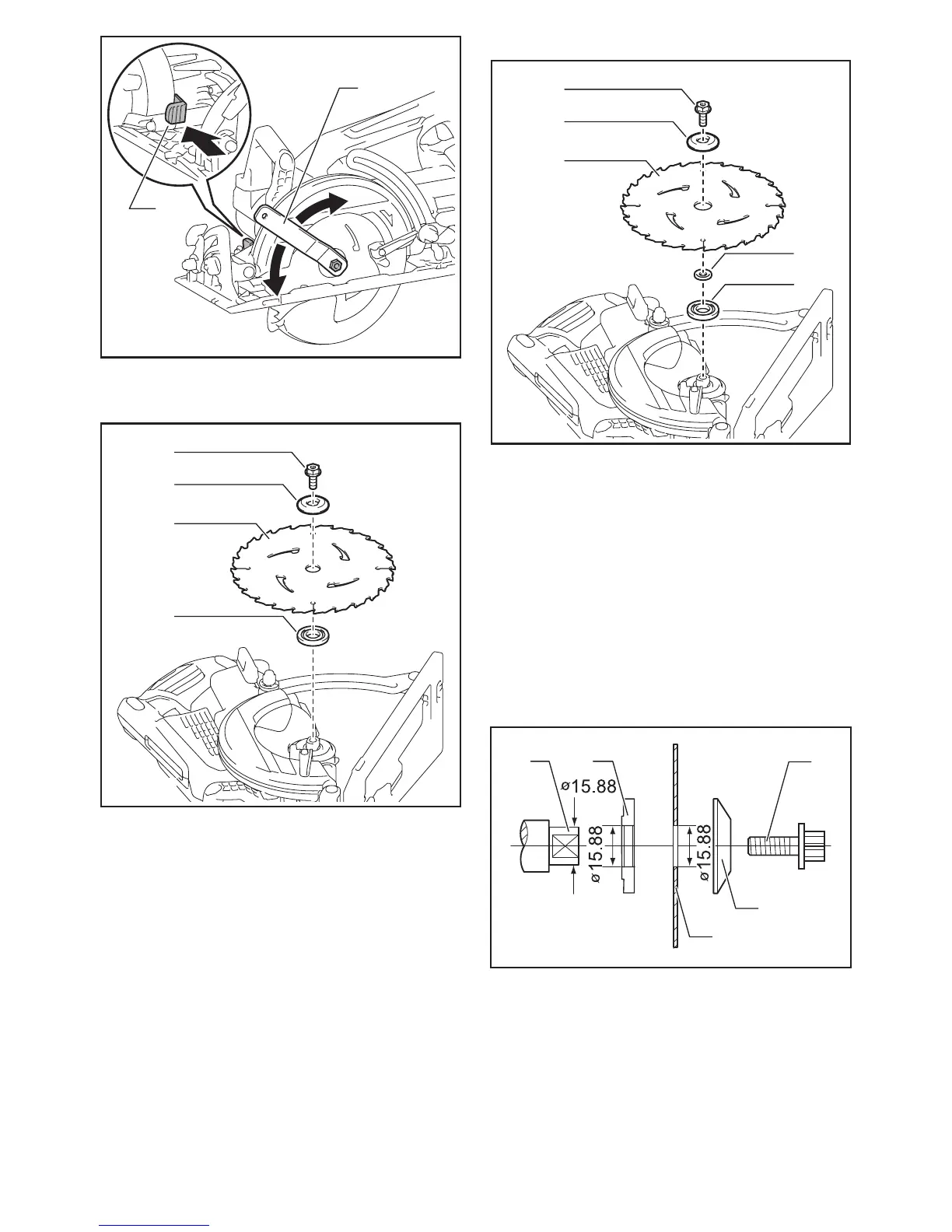

► 1. Shaft lock 2. Wrench
For tool without the ring
2
1
3
4
► 1. Hex bolt 2. Outer ange 3. Circular saw blade
4. Inner ange
For tool with the ring
2
1
3
4
5
► 1. Hex bolt 2. Outer ange 3. Circular saw blade
4. Ring 5. Inner ange
To install the circular saw blade, follow the removal
procedure in reverse.
For tool with the inner ange for a
15.88 mm hole-diameter saw blade
(country specic)
Mount the inner ange with its recessed side facing
outward onto the mounting shaft and then place saw
blade (with the ring attached if needed), outer ange
and hex bolt.
For tool without the ring
12
3
4
5
► 1. Mounting shaft 2. Inner ange 3. Circular saw
blade 4. Outer ange 5. Hex bolt
