Repair
P 5 / 9

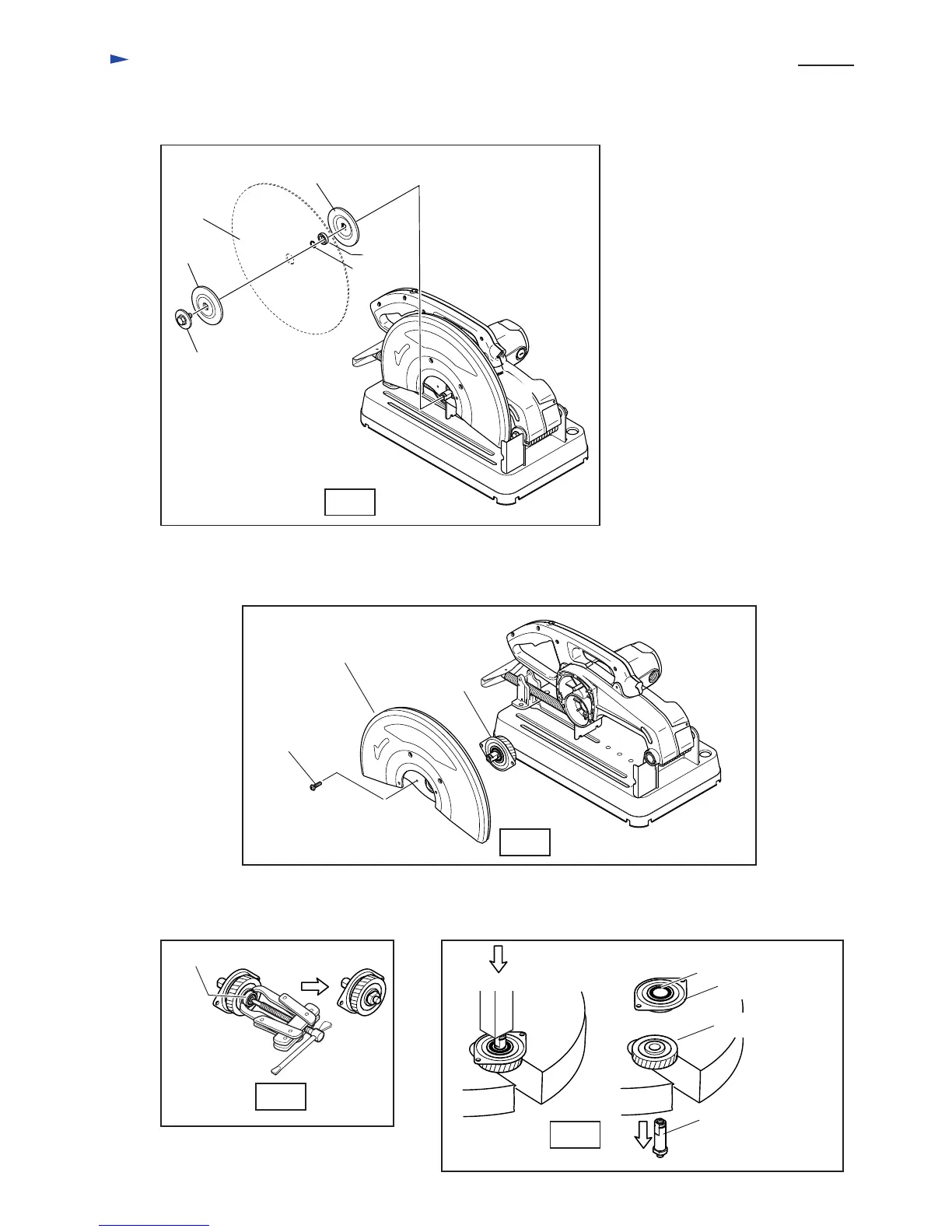

< 3 > Disassembling gear section
( 1 ) Take off hex bolt M10x25, outer flange 90, abrasive cut off wheel, O ring 14, ring 17 and inner flange 90 from
spindle. See Fig. 4.
( 2 ) Unscrew 4 pcs. of pan head screws M5x20. Then, safety cover and gear section can be removed from
the machine. See Fig. 5.
Fig. 4
Fig. 5
Fig. 7
Hex bolt M10x25
Outer flange 90
Inner flange 90
Abrasive cut off
wheel
O ring 14
Ring 17
Pan head
screws M5x20
( 4 pcs.)
Safety cover
Gear section
( 3 ) Remove ball bearing 6000ZZ with No.1R269 "Bearing extractor" as illustrated in Fig. 6.
( 4 ) Press spindle with arbor press. Then, helical gear 49 can be removed. See Fig. 7.
Fig. 6
Ball bearing 6000ZZ
Ball bearing 6203ZZ
Spindle
Helical gear 49
Bearing box
