8

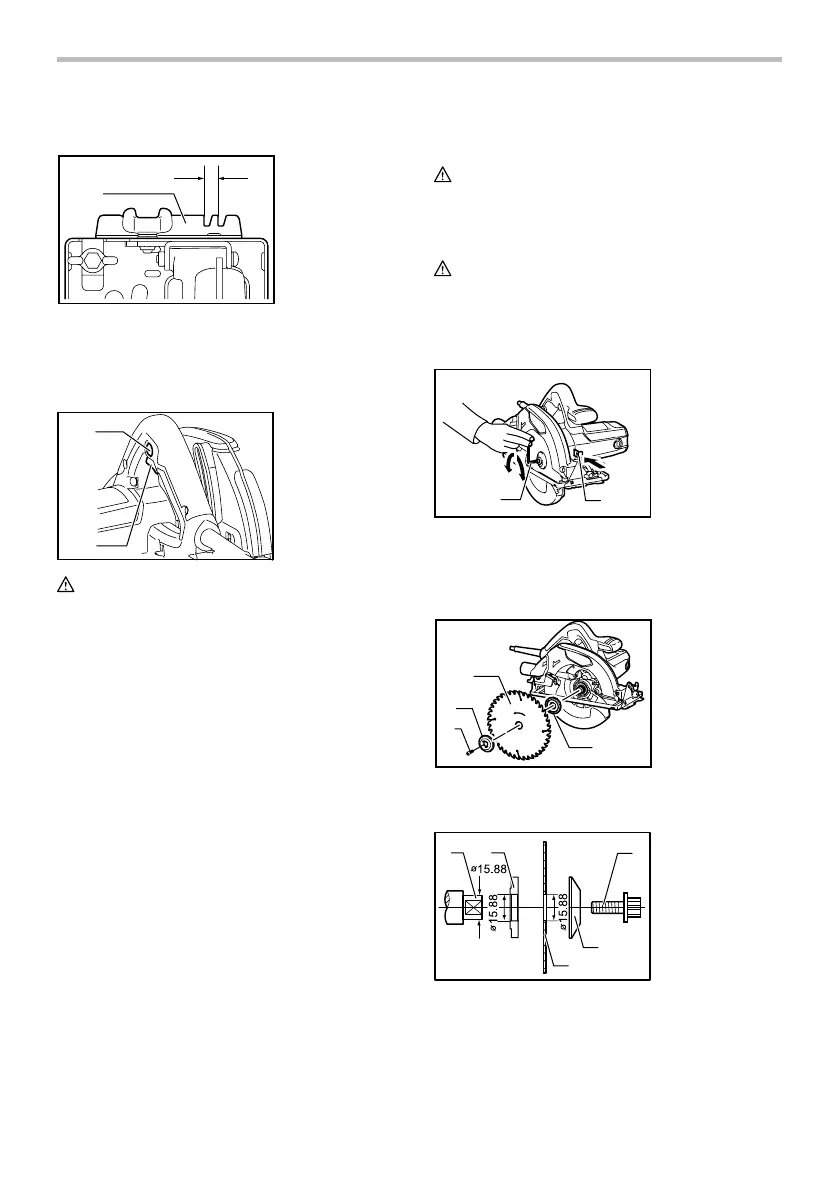

Sighting
AB
1
011196
For straight cuts, align the A position on the front of the
base with your cutting line. For 45° bevel cuts, align the B
position with it.
Switch action
1
2
011197
CAUTION:
• Before plugging in the tool, always check to see
that the switch trigger actuates properly and returns
to the "OFF" position when released.
For tool with lock button
To s ta rt t he t oo l, s im pl y p ul l the s wi tc h t ri gg er. R elea se
the switch trigger to stop.
For continuous operation, pull the switch trigger and
push in the lock button and then release the switch
trigger.
To st op th e to ol fr om the lo cked position, pull the switch
trigger fully, then release it.
For tool with lock-off button
To p re ve nt t he s wi tc h t ri gg er f r om be in g ac ci de n ta lly
pulled, a lock-off button is provided. To start the tool,
push in the lock-off button and pull the switch trigger.
Release the switch trigger to stop.
For tool without lock button and lock-off button
To s ta rt t he t oo l, s im pl y p ul l the s wi tc h t ri gg er. R elea se
the switch trigger to stop.
ASSEMBLY
CAUTION:
•
Always be sure that the tool is switched off and
unplugged before carrying out any work on the tool.
Removing or installing saw blade
CAUTION:
• Be sure the blade is installed with teeth pointing up
at the front of the tool.
• Use only the Makita wrench to install or remove the
blade.
1
2
011198
To r em ove t he b la de , pr es s the shaft lock so that the
blade cannot revolve and use the hex wrench to loosen
the hex bolt counterclockwise. Then remove the hex bolt,
outer flange and blade.
1
2
3
4
011199
For tool with the inner flange for a 15.88 mm
hole-diameter saw blade
12
3
4
5
011231
Mount the inner flange with its recessed side facing
outward onto the mounting shaft and then place saw
blade, outer flange and hex bolt.
BE SURE TO TIGHTEN THE HEX BOLT CLOCKWISE
SECURELY.
1. Mounting shaft
2. Inner flange
3. Saw blade
4. Outer flange
5. Hex bolt
1. Saw blade
2. Outer flange
3. Hex bolt
4. Inner flange
1. Hex wrench
2. Shaft lock
1. Lock button /
Lock-off button
2. Switch trigger
1. Base plate
