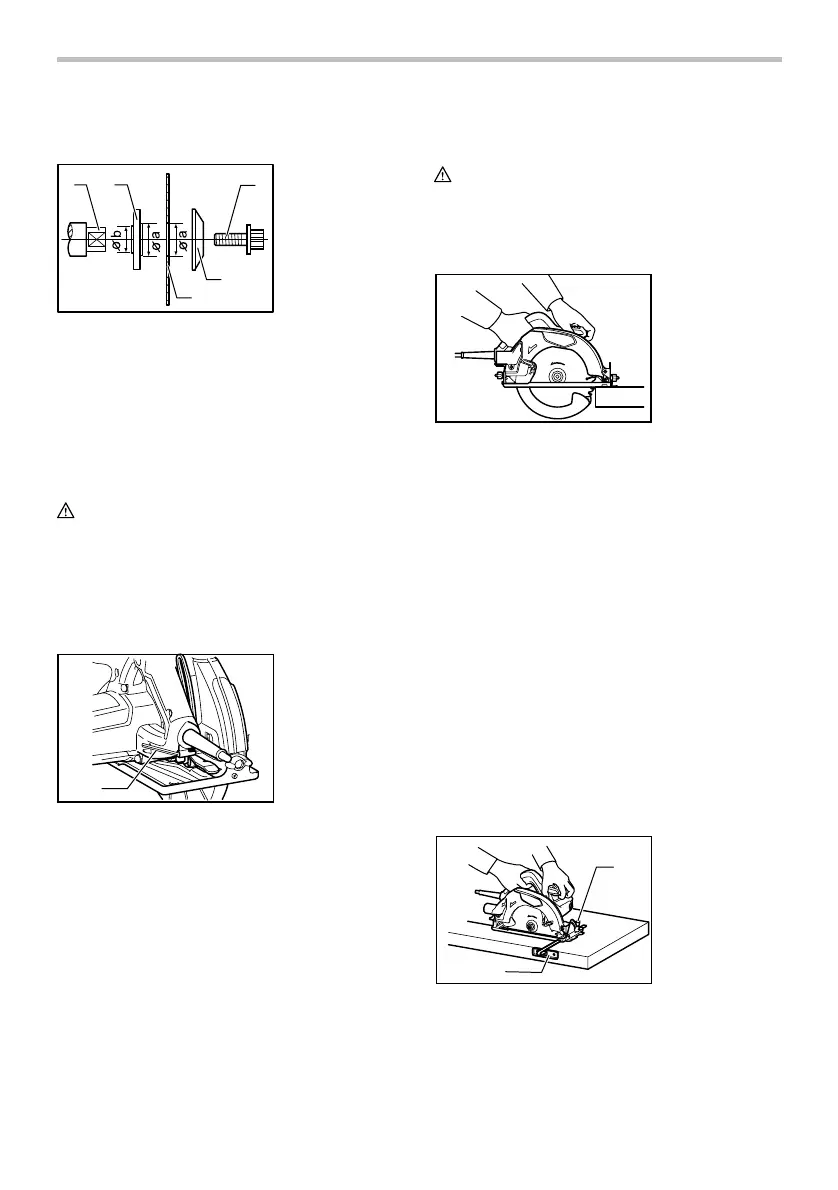

9
For tool with the inner flange for a other than 15.88
mm hole-diameter saw blade
12
3
4
5
011230
The inner flange has a certain diameter protrusion on
one side of it and a different diameter protrusion on the
other side. Choose a correct side on which protrusion fits
into the saw blade hole perfectly.
Next, mount the inner flange onto the mounting shaft so
that the correct side of protrusion on the inner flange
faces outward and then place saw blade and outer flange.
BE SURE TO TIGHTEN THE HEX BOLT CLOCKWISE
SECURELY.
CAUTION:
• Make sure that the protrusion "a" on the inner
flange that is positioned outside fits into the
saw blade hole "a" perfectly. Mounting the blade
on the wrong side can result in the dangerous
vibration.
Hex wrench storage
1
011225
When not in use, store the hex wrench as shown in the
figure to keep it from being lost.
OPERATION
CAUTION:
• Be sure to move the tool forward in a straight line
gently. Forcing or twisting the tool will result in
overheating the motor and dangerous kickback,
possibly causing severe injury.
011200
Always use a front grip and rear handle and firmly hold
the tool by both the front grip and rear handle during
operations. The tool is provided with both the front grip
and rear handle. If both hands are holding saw, they
cannot be cut by the blade. Set the base on the
workpiece to be cut without the blade making any contact.
Then turn the tool on and wait until the blade attains full
speed. Now simply move the tool forward over the
workpiece surface, keeping it flat and advancing
smoothly until the sawing is completed.
To g et c le an cut s, kee p yo ur s aw in g l in e s tr ai gh t a nd yo ur
speed of advance uniform. If the cut fails to properly
follow your intended cut line, do not attempt to turn or
force the tool back to the cut line. Doing so may bind the
blade and lead to dangerous kickback and possible
serious injury. Release switch, wait for blade to stop and
then withdraw tool. Realign tool on new cut line, and start
cut again. Attempt to avoid positioning which exposes
operator to chips and wood dust being ejected from saw.
Use eye protection to help avoid injury.
Rip fence (guide rule) (Accessory)
1
2
011201
The handy rip fence allows you to do extra-accurate
straight cuts. Simply slide the rip fence up snugly against
the side of the workpiece and secure it in position with
the screw on the front of the base. It also makes repeated
cuts of uniform width possible.
1. Screw
2. Rip fence
1. Hex wrench
1. Mounting shaft
2. Inner flange
3. Saw blade
4. Outer flange
5. Hex bolt
