Malber TD6003 - Drum Support Surround Replacement

15.A 13-05-03

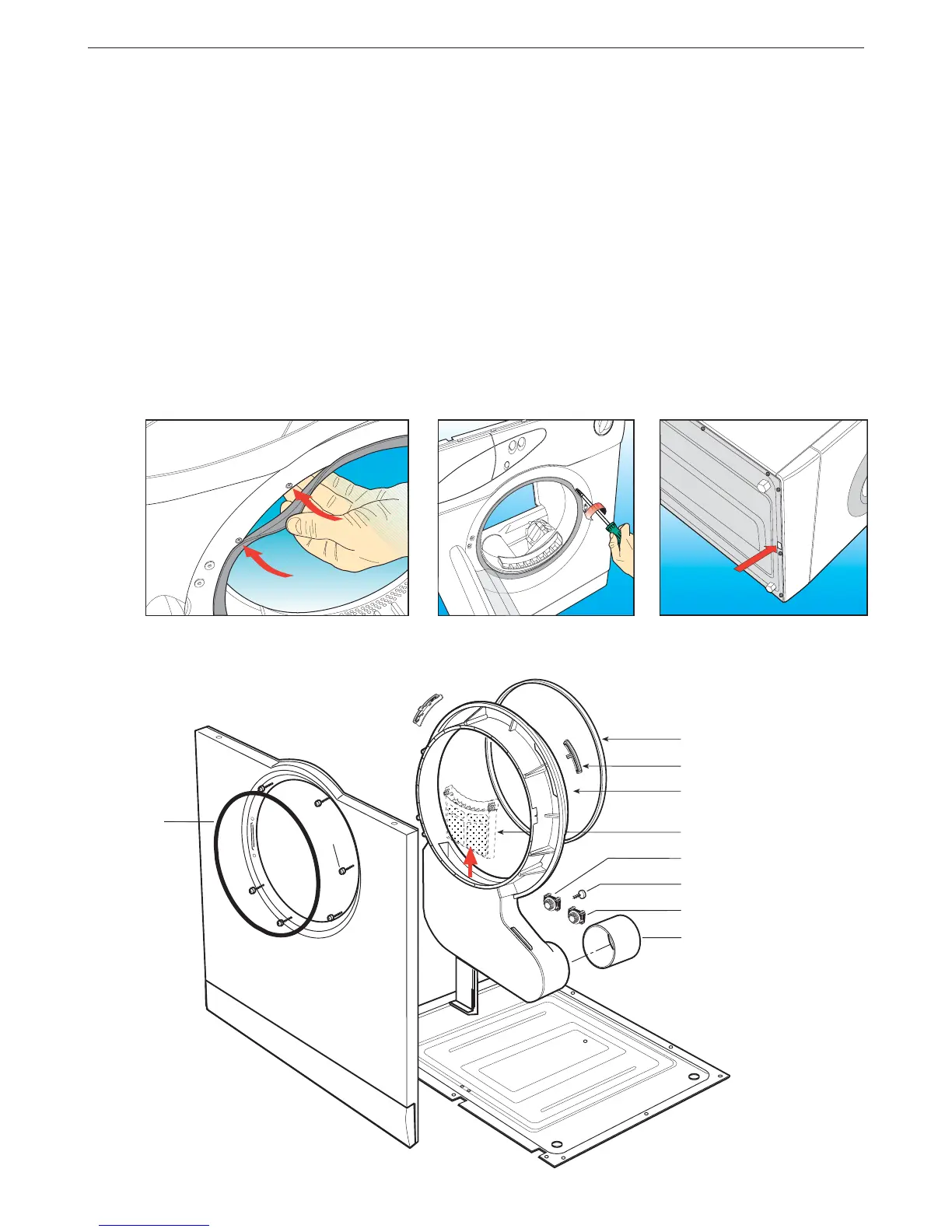

Step 23 Removing and/or replacing the drum support surround (A340):
(a) Remove the top cover (B360) as described in Step 1.
(b) Remove the rear panel (B580) following Step 16, dismantling only those parts necessary.
(c) Manually remove the belt (A290) from the drum and motor following Step 18.
(d) Remove the drum assembly (A300) following Step 19.
(e) Disconnect the wires from the two thermostats (A108) and (A220) noting their positions.
(f) Manually lift the door seal (B100) to gain access to the seven fixing screws (B200).
Remove these screws using a screwdriver to release the drum support surround.
(g) Disengage the drum support surround from its lower housing (on the front part of the drier)
and then remove it from the rubber coupling (A230).
NB: When replacing the drum support surround (A340), recover the following components for refitting:
- Filter housing (A450)
- 95°C automatic reset safety thermostat (A108)
- 50°C minimum temperature thermostat (A220)
When ordering, it is advisable to specify the exploded view reference code LVK067 in order to receive
the Drum Support Surround (A340) already assembled with the Felt seal (A410) and Slide Blocks (A530).
(h) To re-assemble, follow the same procedure in reverse order, following Step 19
to re-assemble the drum and then Step 18 to refit the belt.
