16.A 13-05-03

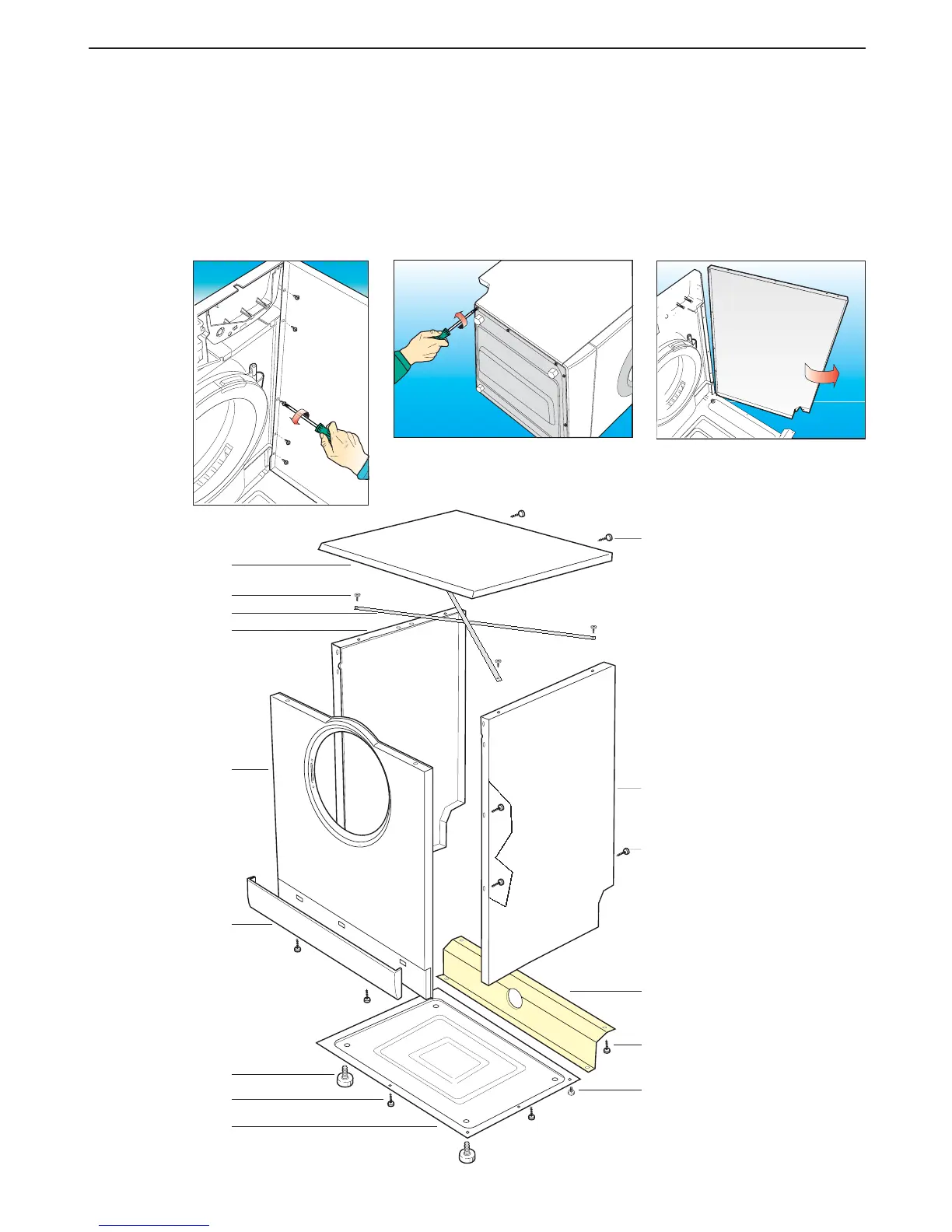

Step 24 Replacing and/or removing the left hand side panel (B040) and/or the right hand side panel (B230):
(a) Remove the top cover (B360) as described in Step 1.
(b) Remove the rear panel (B580) following Step 16, dismantling only those parts necessary.
(c) Manually remove the belt (A290) from the drum and motor following Step 18.
(d) Remove the drum assembly (A300) following Step 19.
(e) Remove the five fixing screws (A480) from the front panel, then remove the screws securing
the bottom panel (A260).
(f) To re-assemble, follow the same procedure in reverse order, following Step 19 to re-assemble
the drum and then Step 18 to refit the belt.
MAINTENANCE PROCEDURES
A460
B070
B440
B040
A510
B350
B360
B007
A250
A260
A370
B680
A460
A480
B230
