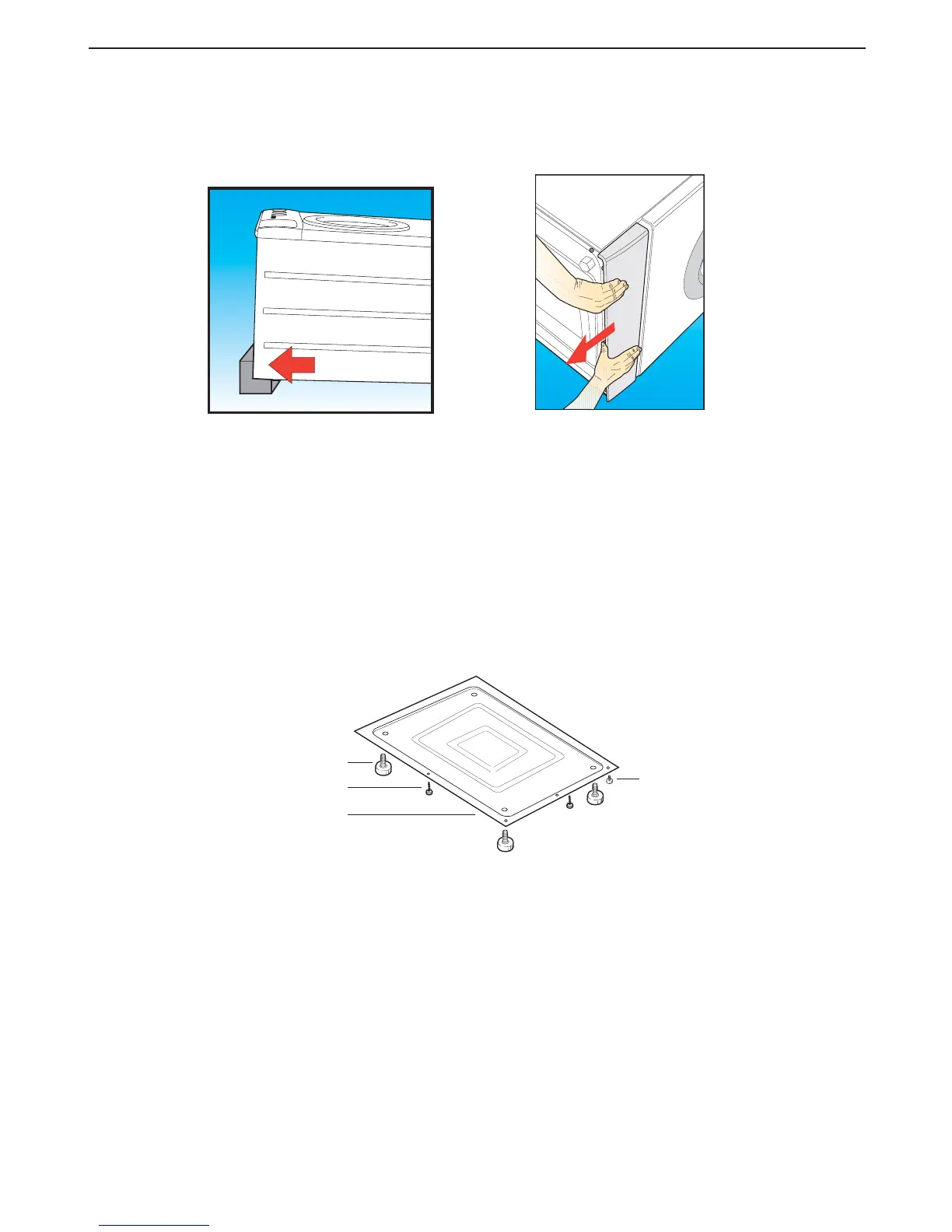

Step 25 Removing and/or replacing the plastic plinth (B007) from the front panel (B070):
(a) To carry out this operation, lean the drier backwards to gain access to the three plinth fixing screws.
Remove these screws using a cross-head screwdriver.
(b) Remove the plinth (B007) manually by sliding it downwards.
(c) To re-assemble, follow the same procedure in reverse order, making sure that the plinth lugs
enter the holes in the front panel.
MAINTENANCE PROCEDURES
Step 26 Replacing the bottom panel (A260):
(a) Remove the top cover (B360) as described in Step 1.
(b) Remove the rear panel (B580) following Step 16, dismantling only those parts necessary.
(c) Manually remove the belt (A290) from the drum and motor following Step 18.
(d) Remove the drum assembly (A300) following Step 19.
(e) Remove the five fixing screws (A480) from the front panel, then remove the screws securing
the bottom panel (A260).
(f) Remove the motor (A120) following Step 22. Remove the bottom panel (A260) fixing screws
and recover the four adjustable feet (A250).
(g) To re-assemble, follow the same procedure in reverse order, following Step 19 to re-assemble
the drum and then Step 18 to refit the belt.
