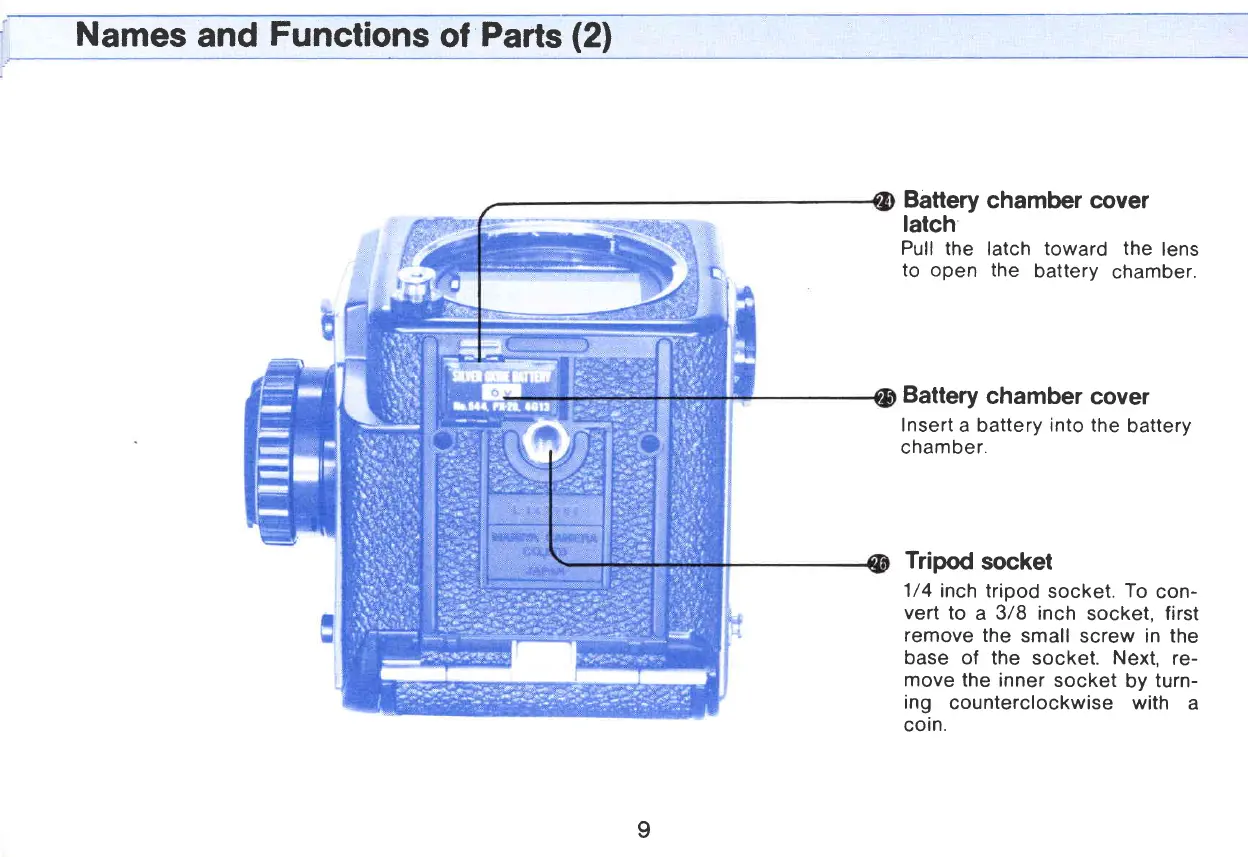

Names
and
Functions
of
Parts
(2)
Battery
chamber cover
latch
Pull
the latch toward
the
lens
to open the
battery
chamber.
Battery
chamber
cover
Insert
a battery
into
the
battery
chamber.
Tripod
socket
1/4
inch
tripod
socket.
To
con-
vert
to
a
3/8 inch
socket,
first
remove
the
small
screw in the
base
of the socket.
Next,
re-
move
the inner
socket
by
turn-
ing
counterclockwise with
a
coin.
9
