Mamiya ZM User Manual

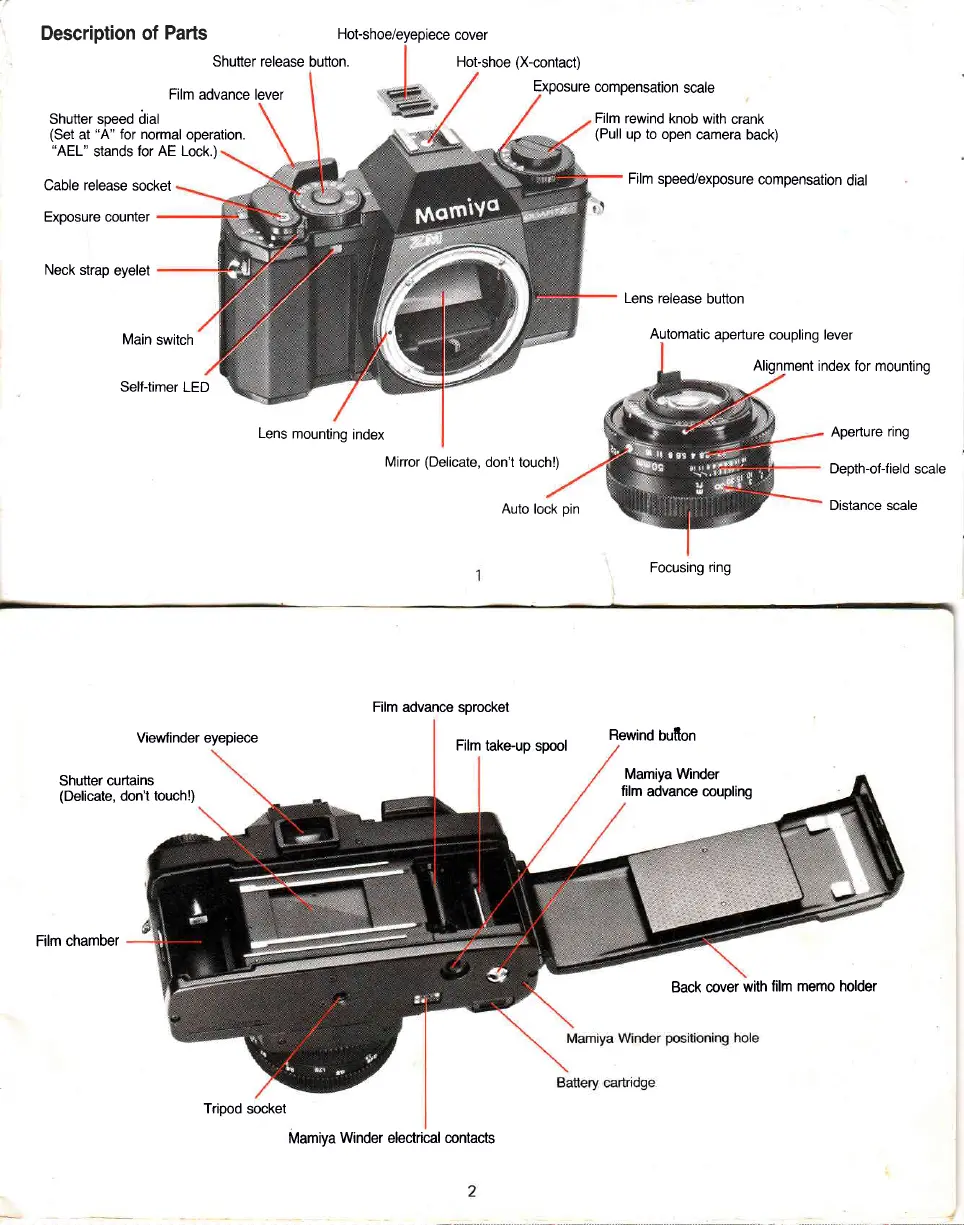

Description of
Parts
Shutter release
button.
Film
advance
lever
Shutter soeed dial
(Set
at
"A"
for normal
operation.
"AEL"
stands
for AE Lock.)
Cable release
socket
Exposure counter
Neck
strap
eyelet
Main
switch
Self-timer
LED
Lens
mounting
index
Hot-shoe/eyepiece
cover
Hot-shoe
(X-contact)
Minor
(Delicate,
don't touch!)
Exposure
compensation
scale
Film
rewind knob
with
crank
(Pull
up to open
camera back)
Auto lock
pin
Film
speecVexposure
compensation
dial
Lens
release
button
Automatic
aperture
coupling lever
Alignment
index for mounting
Aperture
ring
Depth-of-field
scale
Distance scale
Focusing
ring
Film advance
sprocket
Mamiya
Winder electrical contacts
Shutter curtains
(Delicate,
don't
touch!)
Film chamber
Viewfinder eyepiece
Film
take-up spool
Rewind
bufton
Mamiya Winder
film
advance coupling
Tripod
socket
Back
cover
with
film memo holder

Mamiya ZM Specifications

Power

power source	Two 1.5V alkaline-manganese LR44 or two 1.5V silver oxide SR44 batteries
battery type	LR44 (A-76), SR44 (G-13)
battery voltage	1.5V

Camera Specifications

type of camera	35mm single-lens reflex (SLR), aperture priority automatic exposure camera with manual override
picture format	24mm x 36mm
shutter speed range auto	4 sec. to 1/1000 sec.
shutter speed range manual	2 sec. to 1/1000 sec.
film speed range	ASA/ISO 12-3200

Weight and Dimensions

dimensions	140mm x 88mm x 52mm
weight	480 g
tripod socket depth	7/32 in (5.5 mm)
