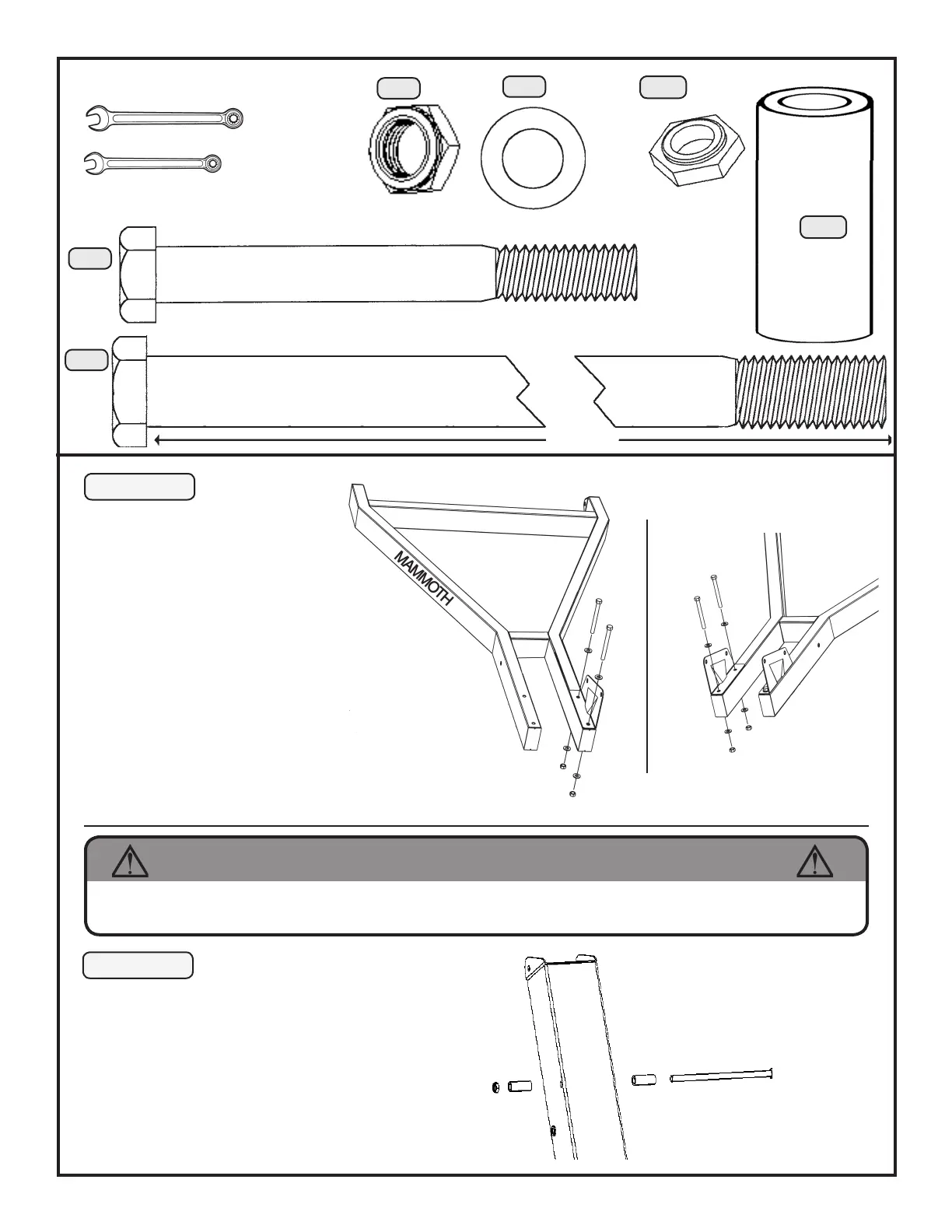

STEP 6
a. Place the Lower Extension Arm (AT) on
a at surface.
b. Place the Right Spring Cam (AQ) on
the right side of the Lower Extension
Arm.
c. Slide a 1/2” Flat Washer (EF) over each
1/2” x 4 1/4” Hex Bolt (ED). Slide a Bolt
through each hole in the Spring Cam and
Extension Arm and through another
1/2” Flat Washer (EF). Secure the Bolts
with 1/2” Nylock Jam Nuts (EB).
d. Repeat for the Left Spring Cam (AR) and
left side of the Lower Extension Arm.
STEP 7
a. Slide a Rubber Arm Stop (EG) over a 5/8” x 11
1/4” Hex Bolt (EJ). Slide the Bolt through the holes
near the top of the Pole (PL) and through the other
Rubber Arm Stop. Secure the Bolt with a 5/8” Nylock
Jam Nut (EC).
