Maintenance and care
24

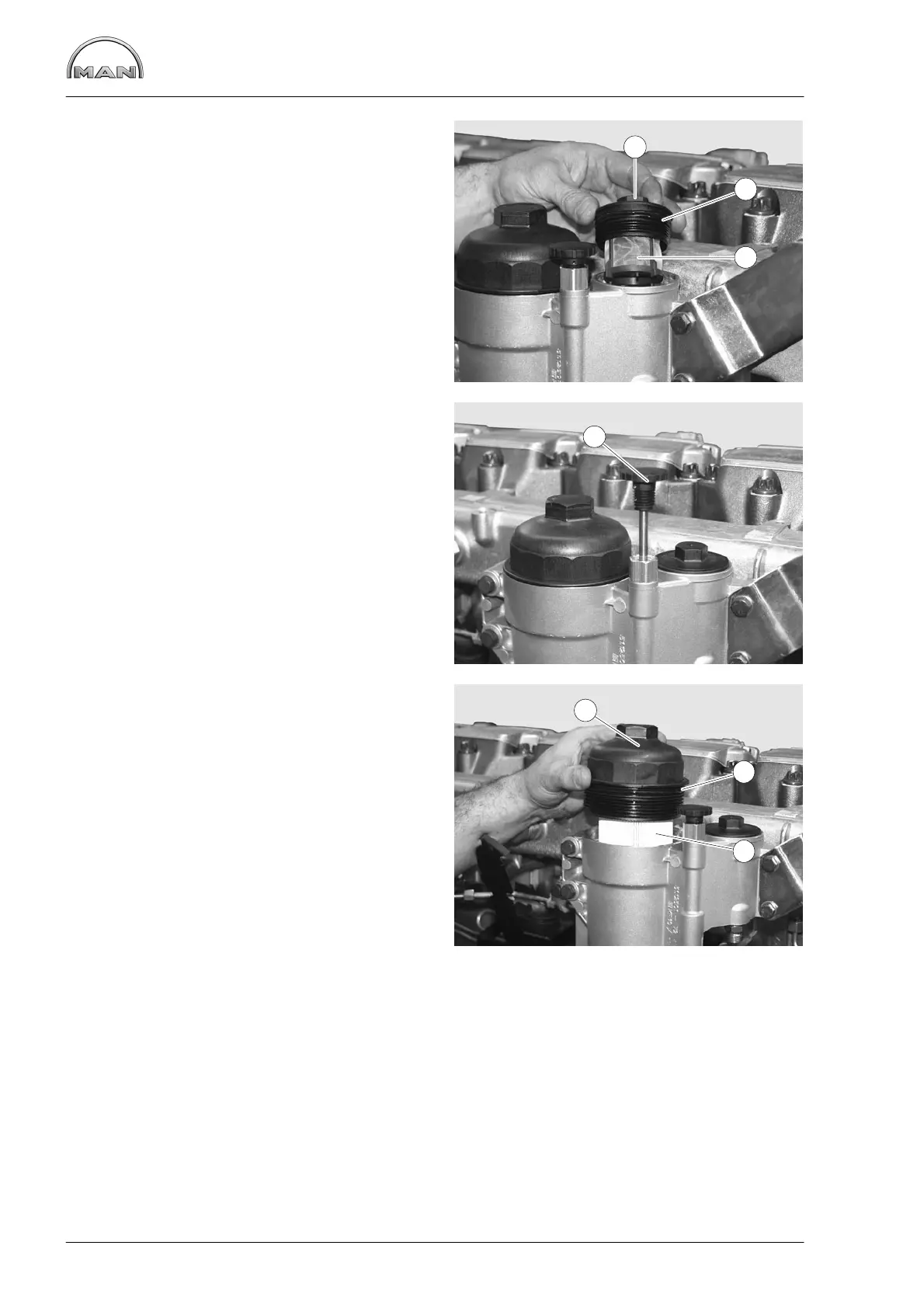

Fuel service center KSC
Cleaning fuel pre-cleaner
D Screw off housing cap À
D Remove and clean cap and strainer el-
ement Â
D Replace sealing ring Á
D Screw in strainer element and cap and
tighten down to 25 Nm
D Bleeding the fuel system
D Check filter for leaks
Bleeding the fuel system
D Unscrew plunger À on hand pump and
operate until injection pump overflow
valve can be heard to open
D Screw in and tighten plunger on hand
pump
D Start engine
D Check fuel system for leaks
Changing fuel filter
Only when the engine is switched off.
D Screw off housing cap À
D Remove cap and filter element
D Detach filter element  from cap
D Detach sealing ring Á
D Clean cap
D Replace sealing ring
D Attach new filter element
D Screw in filter element and cap and
tighten down to 25 Nm
D Bleeding the fuel system
D Check filter for leaks
1
2
3
1
1
2
3
