Commissioning and operation
68
To shift an instrument, click to select it and drag with the mouse button pressed (drag and drop).

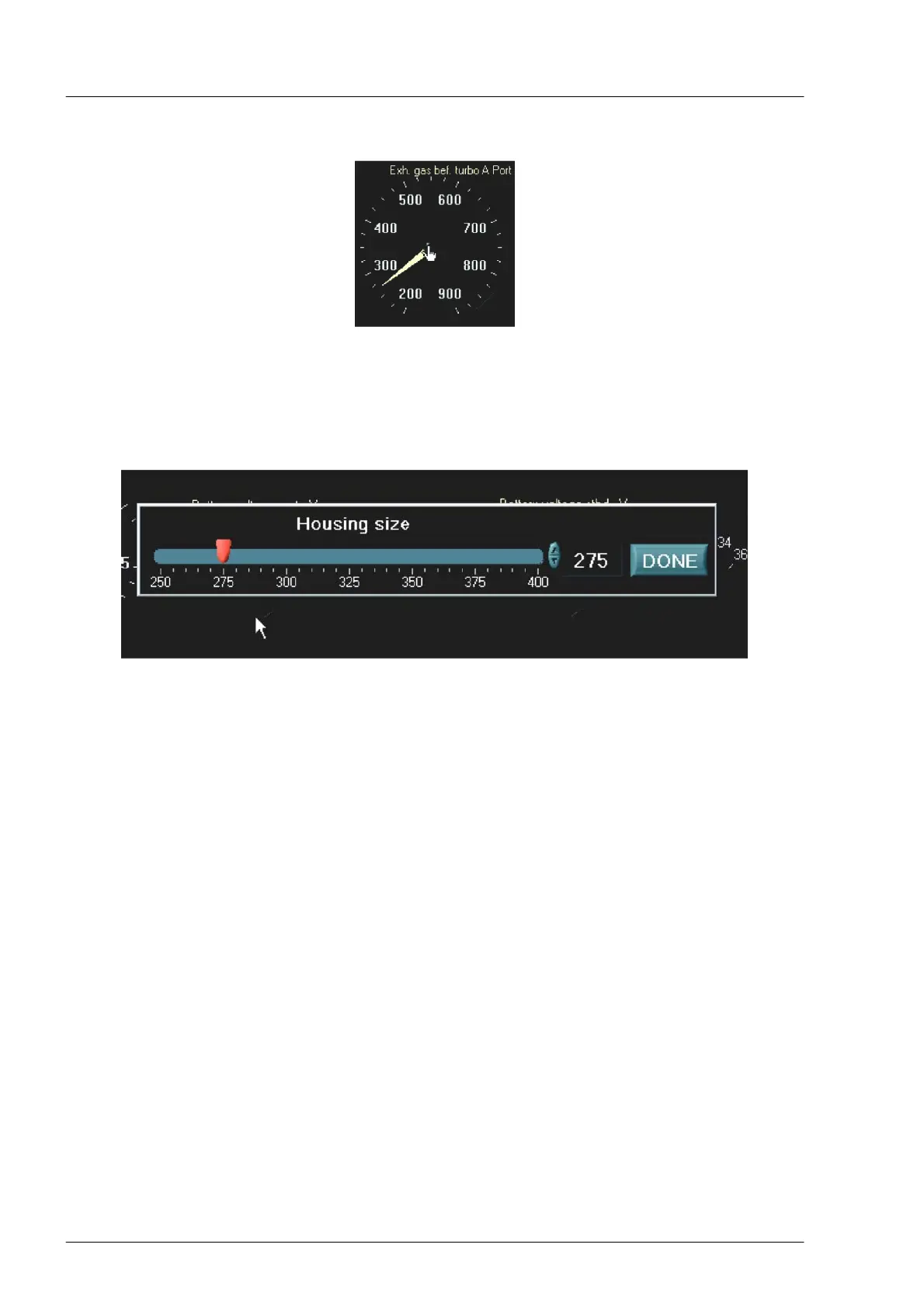

Figure: shifting an instrument
The following configuration window appears on clicking an instrument while holding down the [Shift] key.
The size of an instrument can be adjusted here between 250 and 400 pixels. To do this, the orange indic
ator on the scale is dragged with the mouse or the value is entered directly into the adjacent field. The
changes are accepted and the configuration window is closed by clicking the “DONE" button.
Figure: the configuration window

Man D2862 LE423 Specifications

General

Engine Model	D2862 LE423
Bore	128 mm
Aspiration	Turbocharged and intercooled
Fuel Type	Diesel
Manufacturer	MAN
Fuel System	Common Rail
Cooling System	Liquid Cooled
