6.3 Engine installation

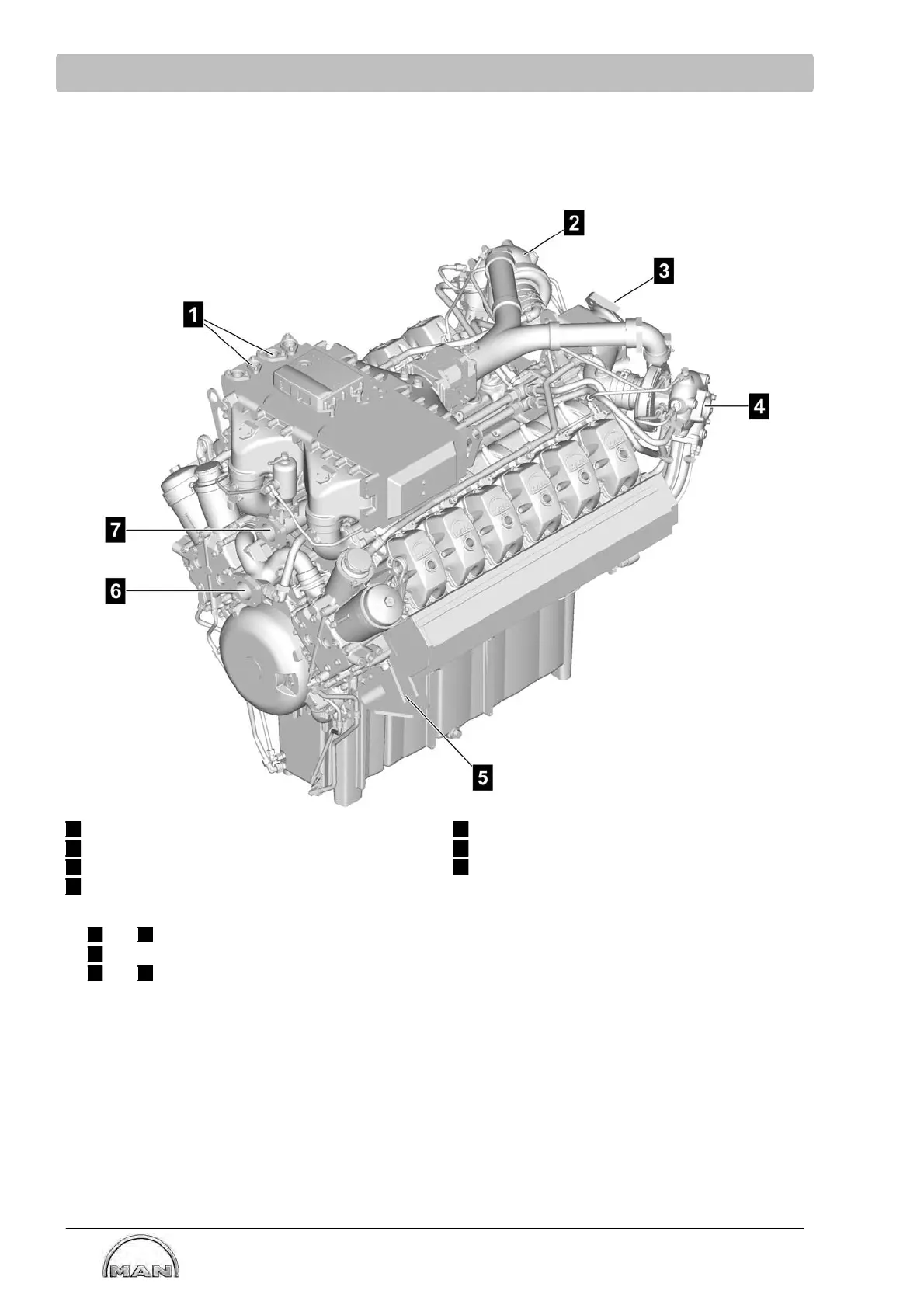

6.3.1 Interfaces between engine and plant
1
Coolant connections on charge mixture cooler
2
Exhaust turbocharger
3
Intake manifold
4
Exhaust turbocharger
5
Engine mounting
6
Coolant inlet
7
Coolant outlet
2
and
4
Mount exhaust system, see page 49
3
Mount gas inlet, see page 48
6
and
7
Connect cooling system, see page 47
