Ref. # Part # Description Qty.
1 14100 Cover, Steering Wheel 1
2 14237 Bolt, M6 x 1 x 12 HHCS 3
3 14102 Steering Wheel 1
4 14385 Shaft, Steering - 6150 1
5 14104 Bushing, Steering Shaft 3
6 14432 Bolt, M8 x 1.25 x 12 FHCS 1
7 14518 Sprocket, 06B-13T Steel 1
8 14293 Washer, M8 Flat 1
9 14435 Bolt, M8 x 1.25 X 22 FHCS 1
10 14519 Chain, KMC 06B-1RX82L 1
11 14520 Circlip, M15 1
12 14521 Link, Steering Chain 1
13 14550 Washer, 18 x 8.2 x 2.5 1
14 14522 Sprocket, 06B-13T - Plastic 1
15 14523 Shaft, Steering Adjustment - 6150 1
16 14088 Nut, M8 x 1.25 Locking Flange 1
17 14439 Bolt, M8 x 1.25 X 40 FHCS 1
18 14238 Washer, M6 Split Lock 2
19 14496 Washer, M5 Flat ZN 2
20 14088 Nut, M8 x 1.25 Locking Flange 1
21 14441 Bolt, M8 x 1.25 x 100 FHCS 1
22 14430 Bolt, M6 x 1 x 25 FHCS 2
23 14386 Asm, Hyd Brake - 6150 1
24 14524 Kit, Brake Pad - 6150 1
25 14426 Bolt M6 x 1 x 14 FHCS 1
26 14442 Bolt, M8 x 1.25 x 145 HHCS 1
27 14120 Spring, Brake Pedal 1
28 14119 Bushing, Pedal 4
14387-48 Pedal, Brake - 6150 - Charcoal 1
14387-47 Pedal, Brake - 6150 - Silver 2
30 14236 Nut, M6 x 1 2
31 14430 Bolt, M6 x 1 x 25 FHCS 1
14388-48 Pedal, Throttle - 6150 - Charcoal 1
14388-47 Pedal, Throttle - 6150 - Silver 1
33 14113 Spring, Throttle Pedal 1
34 14389 Cap, Brake Master Cylinder - 6150 1
35 14525 Hose, Brake - 6150 1
36 14390 Asm, Brake Caliper - 6150 1
37 14526 Cap, Throttle Pedal - 6150 1
38 14527 Cap, Brake Pedial - 6150 1
39 14437 Bolt, M8 x 1.25 x 25 FHCS 1
40 14088 Nut, M8 x 1.25 Locking Flange 1
41 14528 Lever, Parking Brake - 6150 1

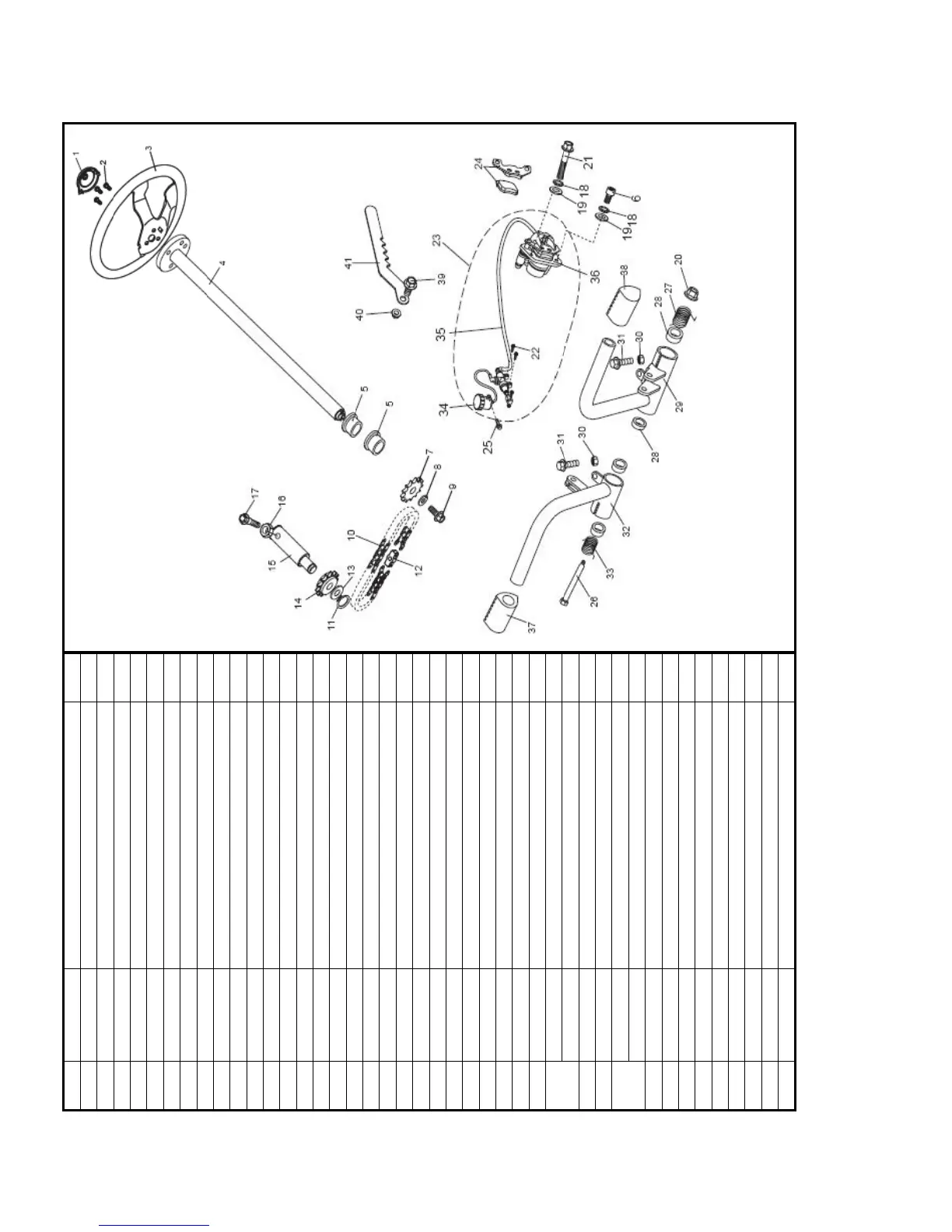

Section 18 - Steering Assembly
29
32
10-31-07
ILLUSTRATED PARTS MANUAL - 6150
PART NUMBER 14570R2
