Ref. # Part # Description Qty.
1 14435 Bolt, M8 x 1.25 x 22 FHCS 4
2 14202 Disc, Rear Brake - 150cc 1
3 14088 Nut, M8 x 1.25 Locking Flange 16
4 14203 Axle - 150cc 1
5 14204 Chain, 50 x 56P INC ML 1
6 14205 Sprocket, 50P 32T 1
7 14436 Bolt, M8 x 1.25 x 25 FHCS 4
8 14206 Seal, M50 x 34 x 7 Dust 2
9 14207 Housing, Axle Bearing - 150cc 2
10 14208 Bearing - 6206 2
11 14209 Flange, Bearing - 150cc 2
12 14439 Bolt, M8 x 1.25 x 40 FHCS 6
13 14210 Seal, M42 x 30 x 7 Dust 2
14 14147 Stud, M10 x 1.25 x 31 Wheel 8
15 14578 Hub, Rear Wheel - 150cc 2
16 14398 Asm, LH Rear Wheel/Tire 1
17 14215 Master Link 50 1
18 14243 Nut, M10 x 1.25 Locking Flange 8
19 14399 Asm, RH Rear Wheel/Tire 1
20 14248 Spacer, M16 x 16 x 4 2
21 14249 Nut, M16 x 2.00 Castle 2
22 14213 Pin, M4 x 30 Cotter 2
23 14151 Cap, Hub Nose - Black 2
24 14217 Sprocket, 50P 16T 1
25 14218 Keeper, Drive Sprocket 1
26 14296 Bolt, M6 x 1.25 x 12 2

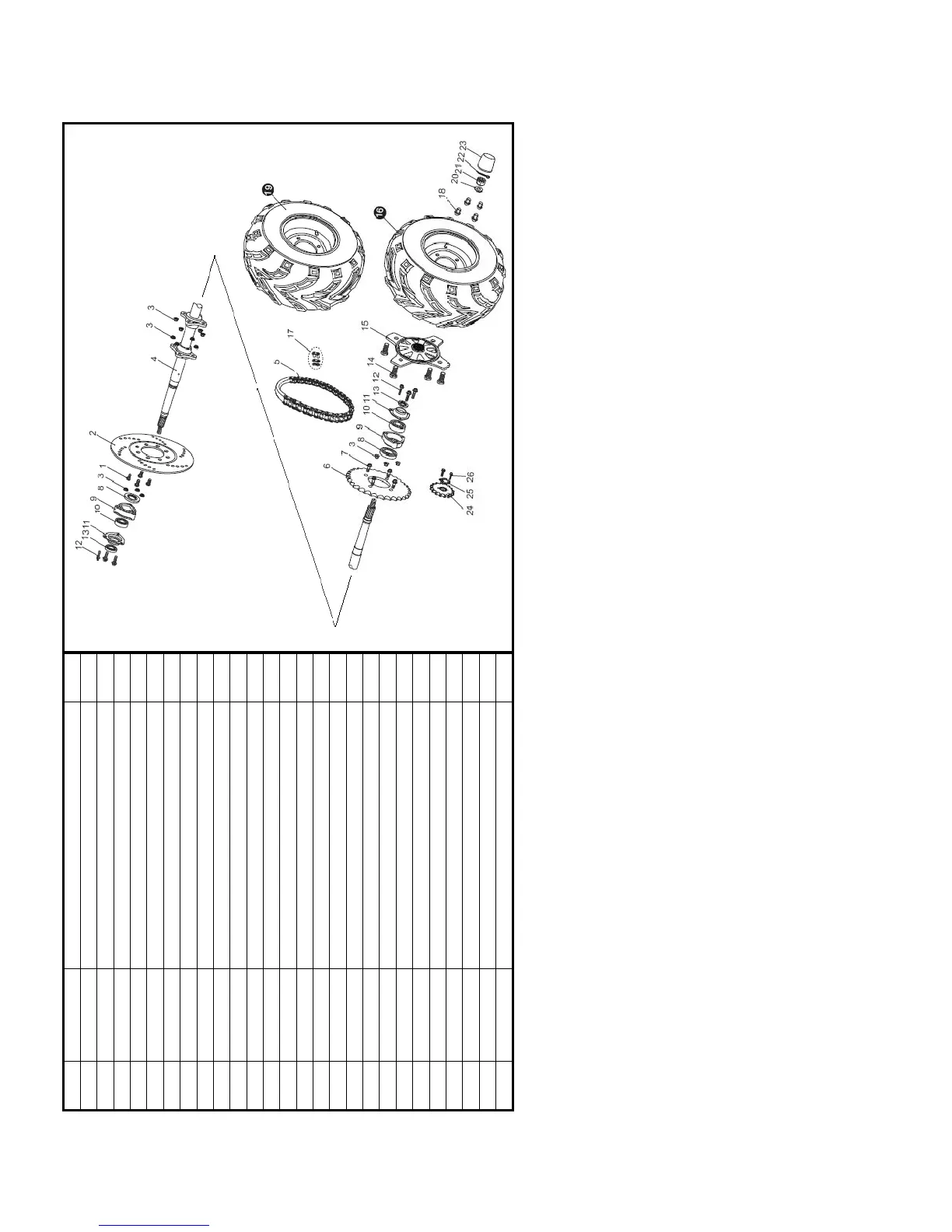

Section 23 - Rear Axle
10-31-07
ILLUSTRATED PARTS MANUAL - 6150
PART NUMBER 14570R2
