Mandik FDMR - I. GENERAL; Description of FDMR Fire Dampers; Damper Characteristics and Certifications

3

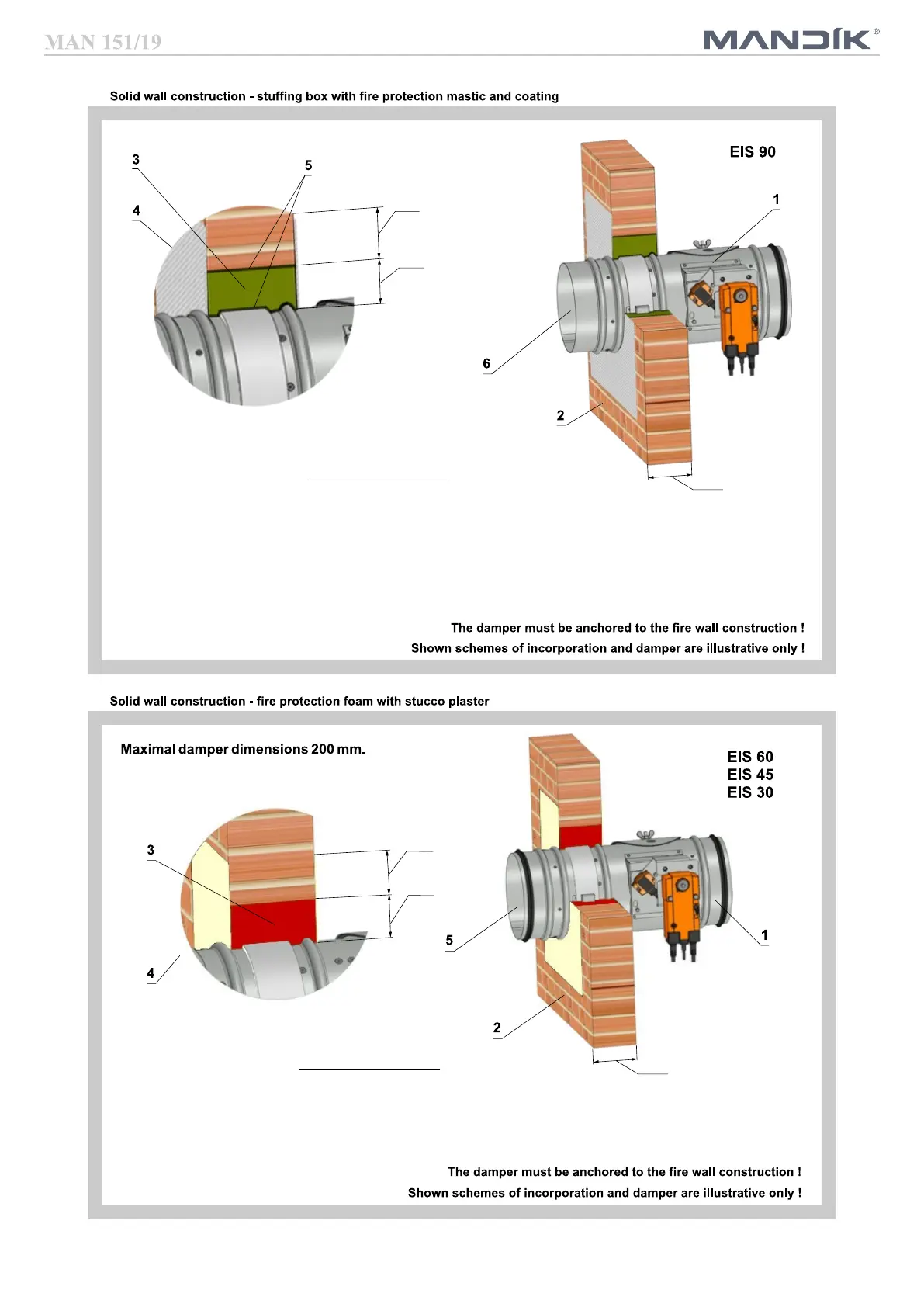

Position:
1 Fire damper
2 Solid wall construction
3 Stuffing box (mineral stone wool min. density 150 kg/m³)
4 Fire protection coating th. 1 mm
5 Fire protection mastic th. 1 mm
6 Duct
Used materials - example:*
3
HILTI CFS-CT B 1S 140/50 or
ROCKWOOL HARDROCK + coating HILTI CFS-CT
4 HILTI CFS-CT
5 HILTI CFS-S ACR
* Fire resistant insulation and fire resistant board can be
replaced by another approved fire sealing system for
damper installation with equivalent material properties.
≥ 40
≥ 40
≥ 50
≥ 40
≥ 100
Position:
1 Fire damper
2 Solid wall construction
3 Fire protection foam
4 Stucco plaster
5 Duct
Used materials - example:
3 HILTI CFS-F FX - EIS 60
PROMAFOAM-C - EIS 45
SOUDAL, Soudafoam FR-B1 - EIS 30
DenBraven, Fire protection foam - EIS 30
≥ 100
