Mandik FDMR - II. DESIGN; Design with Manual Control

4
≥ 40
≥ 50
≥ 100
Screws has to be fixed in wall/ceiling construction.
(If it is needed use steel bracket).
≤ 300
≤ 300
Screw
(min. 4x50)
≥ 25
≥ 25
Position:

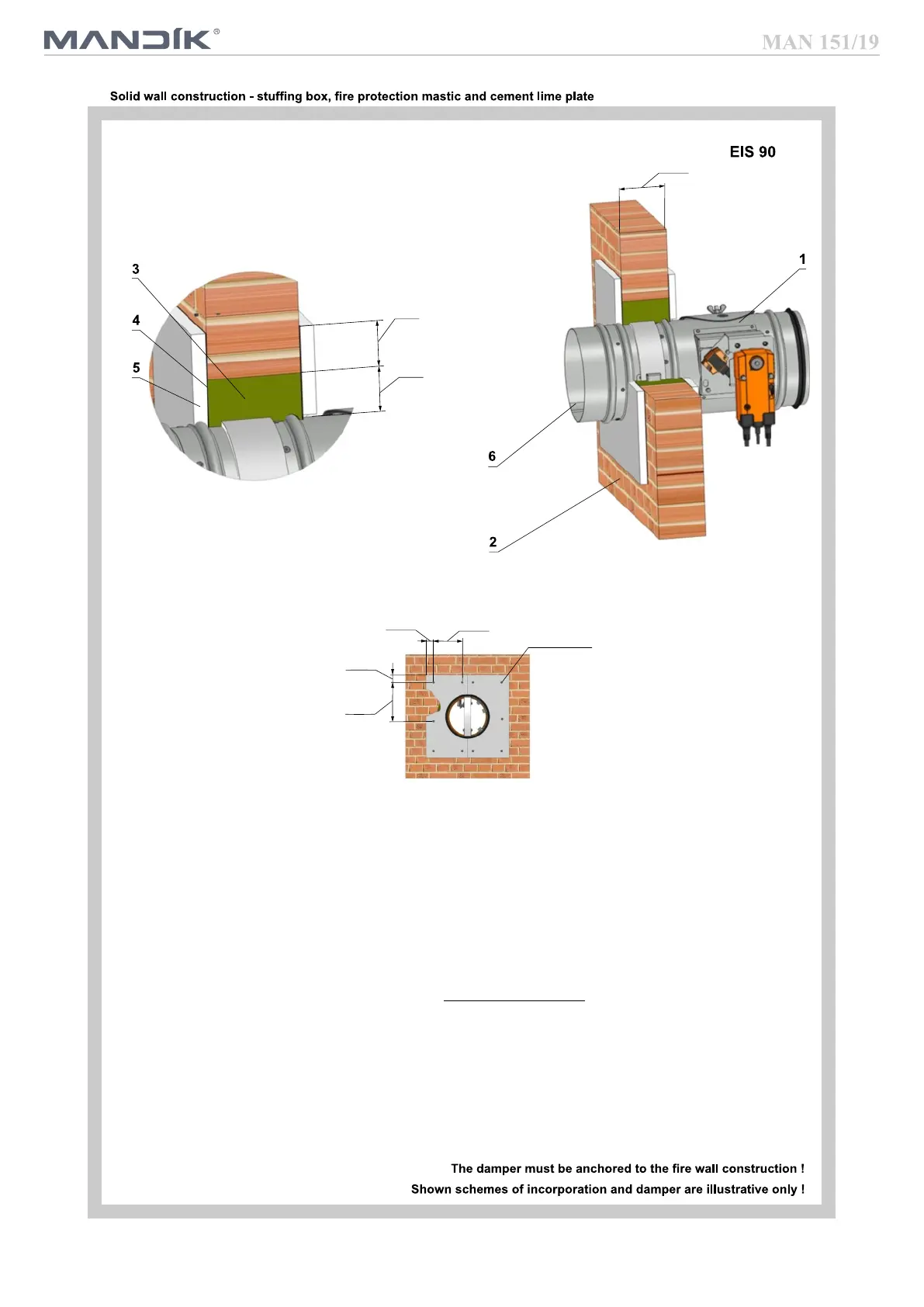

1 Fire damper
2 Solid wall construction
3 Stuffing box (mineral stone wool min. density 140 kg/m³)
4 Fire protection mastic min. thickness 1 mm
5
Cement lime plate min. thickness 15 mm min. density 870 kg/m³
6 Duct
Used materials - example:*
3
Promapyr, Rockwool Steprock HD, Hilti CFS-CT B 1S 140/50
4 Promastop - P, K, Hilti CFS-CT
5 Promatect - H
* Fire resistant insulation and fire resistant board can
be replaced by another approved fire sealing sys-
tem for damper installation with equivalent material
properties.
