5
RCA
2
S-video
SVGA
1
3 4
2

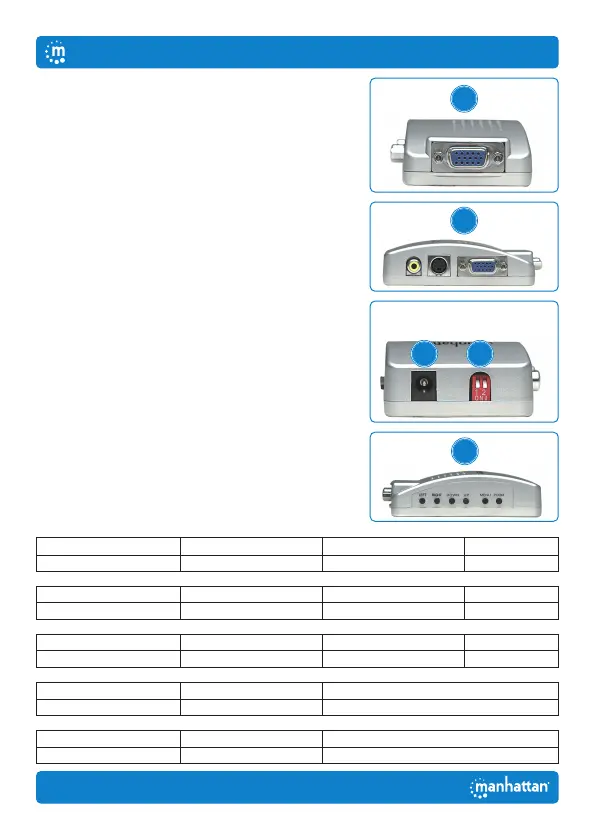

Setup
1 Connect the VGA-In port to the computer.
2 Use the appropriate cable (RCA/composite,
S-video or SVGA) to connect to the TV,
projector or other display device.
3 Connect the DC jack to a USB port on
your computer using the USB cable.
Operation
4 Flip Switch 1 up to set the video standard
to PAL; flip it down for NTSC. Switch
2 is kept Down on this model.
5 Press the buttons to control
the image options.
• Left/Right/Down/Up position
the image on screen.
• Menu presents on-screen image
controls: brightness, contrast, size, etc.
• Zoom lets you zoom in or out.
Mode & Resolution Chart
The converter supports these VGA display modes:
Resolution: 640 x 480 800 x 600 1024 x 768
Vertical Frequency (Hz): 60, 72, 75, 85 56, 60, 72, 75, 85 60, 70, 72, 75
The Zoom function supports these VGA display modes:
Resolution: 640 x 480 800 x 600 1024 x 768
Vertical Frequency (Hz): 60, 72, 75, 85 56, 60, 72, 75 60
The Size function supports these VGA display modes (NTSC, NTSC-EIAJ [Japan], PAL-M):
Resolution: 640 x 480 800 x 600 1024 x 768
Vertical Frequency (Hz): 60, 72, 75, 85 60, 72, 75 60, 70, 72, 75
The Size function supports these VGA display modes (PAL, PAL-N):
Resolution: 800 x 600 1024 x 768
Vertical Frequency (Hz): 56, 60, 72, 75 60, 70, 72, 75
The converter supports these Mac display modes:
Resolution: 640 x 480 832 x 624
Vertical Frequency (Hz): 66 75
PC TV Converter
Instructions
English
