Manitou A Series Operator's Manual

3 - 12

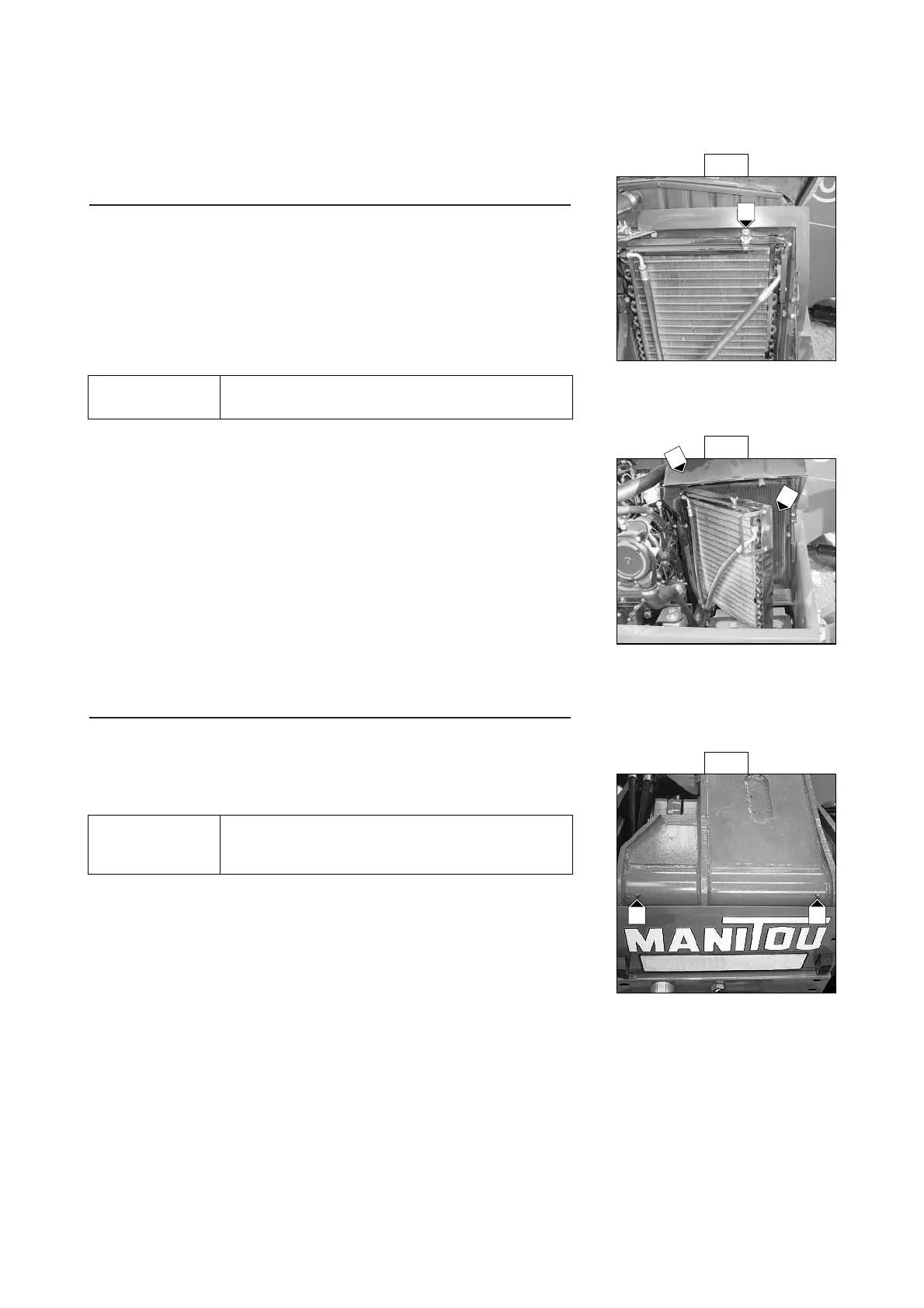

B3 - CONDENSER CORE
(OPTION AIR
CONDITIONING)
CLEAN
- Open the engine compartment.
- Loosen the wingnut 1 (Fig. B3/1).
- Raise and lock into place the radiator cowling 1 (Fig. B3/2).
- Swing the condenser unit forward 2 (Fig. B3/2).
- Clean the core with a blast of compressed air aimed from the inside towards
the outside. This is the only effective way of removing the impurities.
B4 - BOOM
GREASE
To be carried out weekly, if the lift truck has been operated for less than 50
hours during the week.
Clean and lubricate the following points with grease (See LUBRICANTS AND
FUEL in SECTION 3 - MAINTENANCE) and remove the surplus of grease.
1 - Lubricators of the boom axle (2 lubricators) (Fig. B4/1).
2 - Lubricators of the carriage axle (2 lubricators) (Fig. B4/2).
3 - Lubricator of the tilt cylinder head axle (1 lubricator) (Fig. B4/3).
4 - Lubricator of the tilt cylinder foot axle (1 lubricator) (Fig. B4/4).
5 -
Lubricators of the carriage connecting rod axle (2 lubricators) (Fig. B4/5).
Except MT 732/932 Série A
MT 732 Turbo Série A
6 - Lubricator of the lifting cylinder foot axle (1 lubricator) (Fig. B4/6).
7 - Lubricator of the lifting cylinder head axle (1 lubricator) (Fig. B4/7).
8 - Lubricator of the compensation cylinder foot axle (1 lubricator)
(Fig. B4/6).
9 - Lubricator of the compensation cylinder head axle (1 lubricator)
(Fig. B4/8).
B3/1
1
B3/2
B4/1
1
1
1
2
When handling straw, grain or cereals, clean the
condenser core every day.
IMPORTANT
In the event of prolonged use in an extremely dusty or
damp atmosphere, reduce this interval to 10 working
hours or every day.
IMPORTANT
