Manitou A Series Operator's Manual

3 - 14

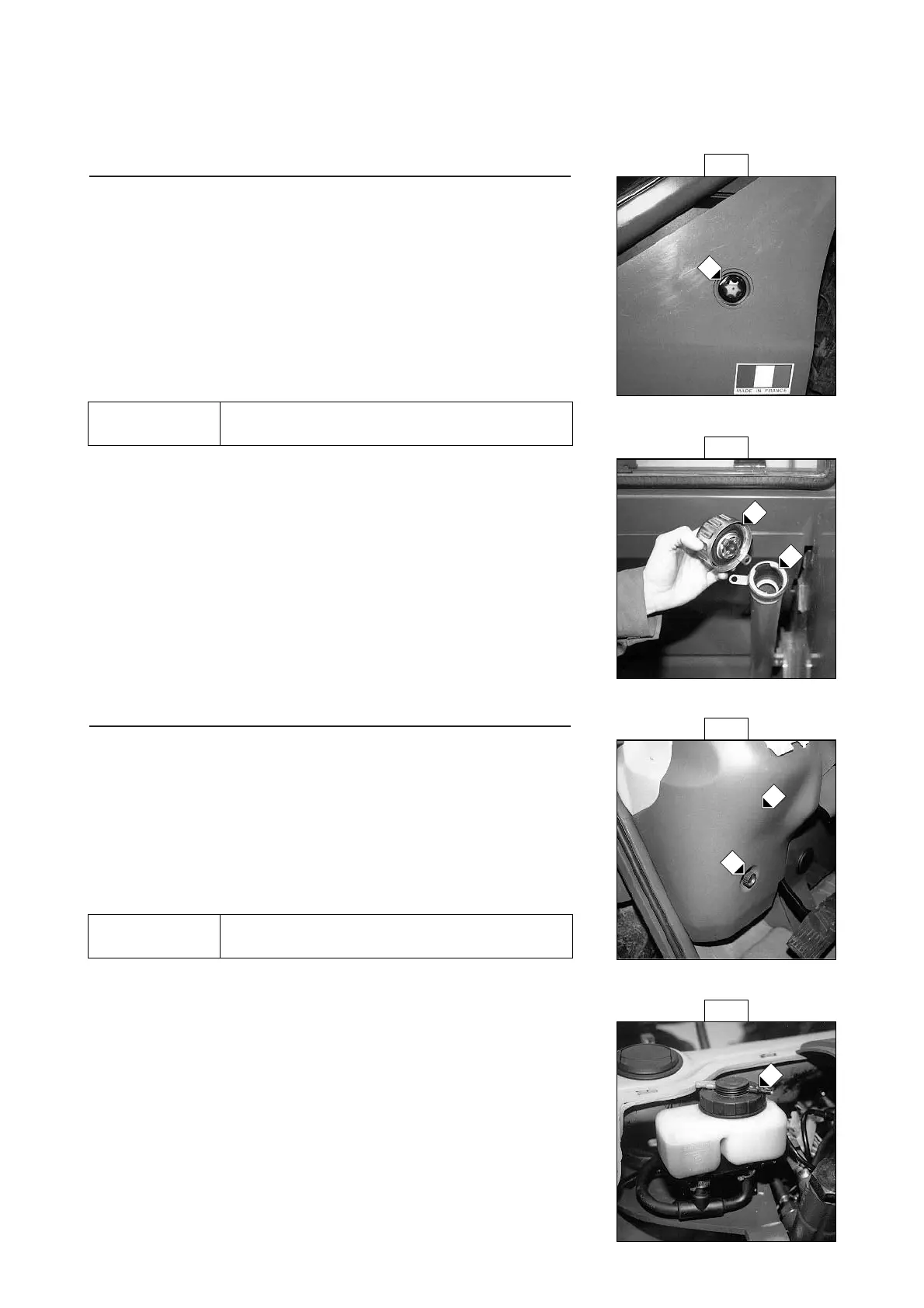

B5 - HYDRAULIC OIL LEVEL
CHECK
Place the lift truck on level ground with the I.C. engine stopped, and the boom
retracted and lowered as far as possible.
- Refer to gauge 1 (Fig. B5/1).
- The oil level is correct when it is at the level of the red point.
- If necessary, add oil (See LUBRICANTS AND FUEL in SECTION 3 -
MAINTENANCE).
- Remove cap 2 (Fig. B5/2).
- Add oil by filler port 3 (Fig. B5/2).
- Put the cap back.
Always maintain the oil level at maximum as cooling depends on the oil
flowing through the tank.
B6 - B
RAKE OIL LEVEL
CHECK
Place the lift truck on level ground.
- Loosen screw 1 (Fig. B6/1) and remove the access panel for braking oil tank
and windscreen washer tank 2 (Fig. B6/1).
- The level is correct when it is at the MAXI level on the tank.
- If necessary, add oil (See LUBRICANTS AND FUEL in SECTION 3 -
MAINTENANCE) by the filler port 3 (Fig. B6/2).
B6/1
B6/2
1
2
3
B5/1
B5/2
1
2
3
Clean the oil filler tube before adding fluid. Always use
a clean funnel when filling.
IMPORTANT
If the braking oil level is abnormally low, consult your
dealer.
IMPORTANT
