NOTE : After an accident, replace the seat belt.
E10 - F

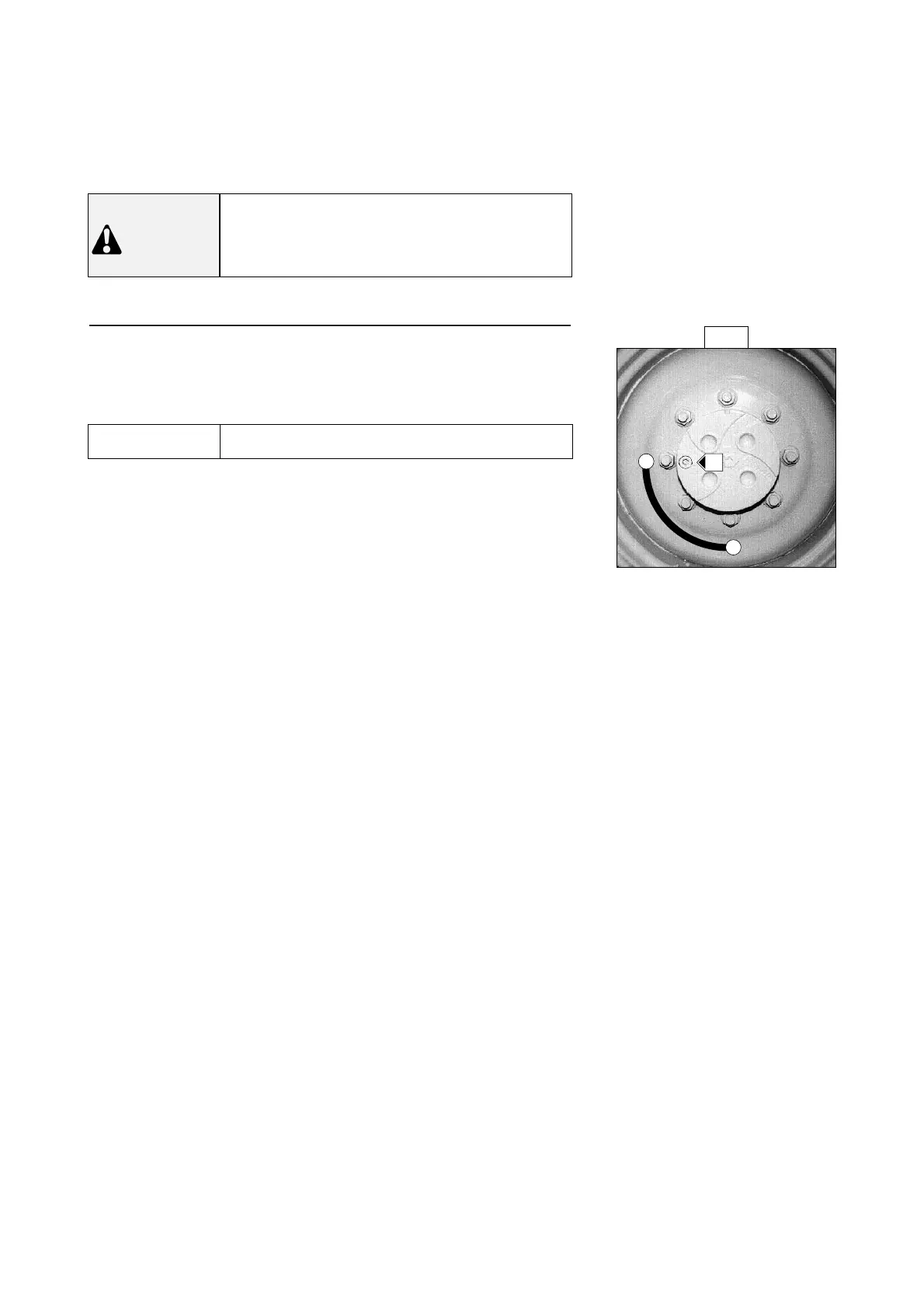

RONT AND REAR WHEELS REDUCERS OIL
DRAIN
Place the lift truck on level ground with the I.C. engine stopped and the
reducers oil still warm.
- Drain and change each front wheel reducer.
- Place drain plug 1 (Fig. E10) in position A.
- Place a container under the drain plug and unscrew the plug.
- Let the oil drain fully.
- Place the drain port in position B, i.e. in a level position.
- Fill up with oil (See LUBRICANTS AND FUEL in SECTION 3 -
MAINTENANCE) by level port 1 (Fig. E10).
- The level is correct when the oil level is flush with the edge of the hole.
-
Refit and tighten the drain plug 1 (Fig. E10) (Tightening torque 34 to 49 N.m or
25-36 ft/lbs).
- Repeat this operation on each wheel reducer.
E10
B
A
1
Under no circumstances should you use the lift truck if
the seat belt is faulty (fixing, locking, it has cuts or
tears, etc).
Repair or replace the seat belt immediately.
WARNING
Dispose the drain oil in an ecological manner.
IMPORTANT
