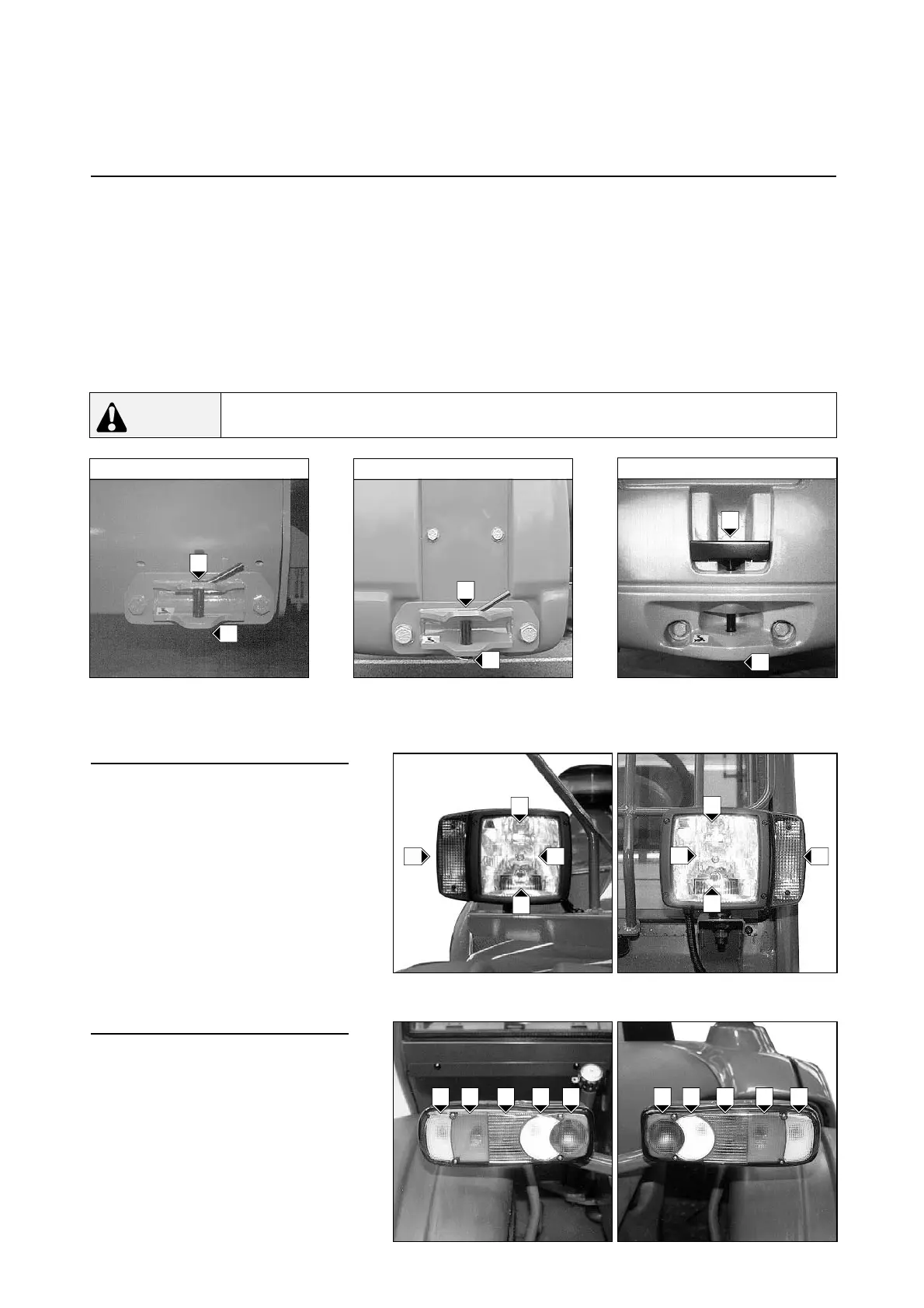

32 - TOWING PIN
Located at the back of the lift truck, this pin makes it possible to couple a trailer. The capacity is limited for each lift truck
by the authorized total towed weight (ATTW), the drawbar pull and the maximum vertical drawbar pull on the towing pin.
This information is indicated on the manufacturer's plate on each lift truck (See IDENTIFICATION OF THE LIFT TRUCK
in SECTION 2 - DESCRIPTION).
NOTE : For towing, optional solutions exist, consult your dealer.
- Check the braking and lighting devices of the trailer and connect them on the lift truck.
- Reduce the speed of the lift truck.
- Consult the Highway Code currently in force in your country.
33 - F
RONT LIGHTS
A - Left front indicator.
B - Left front dipped headlight.
C - Left front main beam.
D - Left front sidelight.
E - Right front indicator.
F - Right front dipped headlight.
G - Right front main beam.
H - Right front sidelight.
34 - REAR LIGHTS
A - Left rear indicator.
B - Left rear stoplight.
C - Left tail light.
D - Left rear reverse light.
E - Left rear fog light.
F - Right rear fog light.
G - Right rear reverse light.
H - Right tail light.
I - Right rear stoplight.
J - Right rear indicator.
A
B
C
F
G
E
A B C D E F G H I J
D
H
MLT 629
..........
MLT 633/730
..........
2
2
Before towing trailers, ensure that the clip (1) is fully engaged in the towing pin (2).
WARNING
2
1
MT 732/932 . .....
1
1
