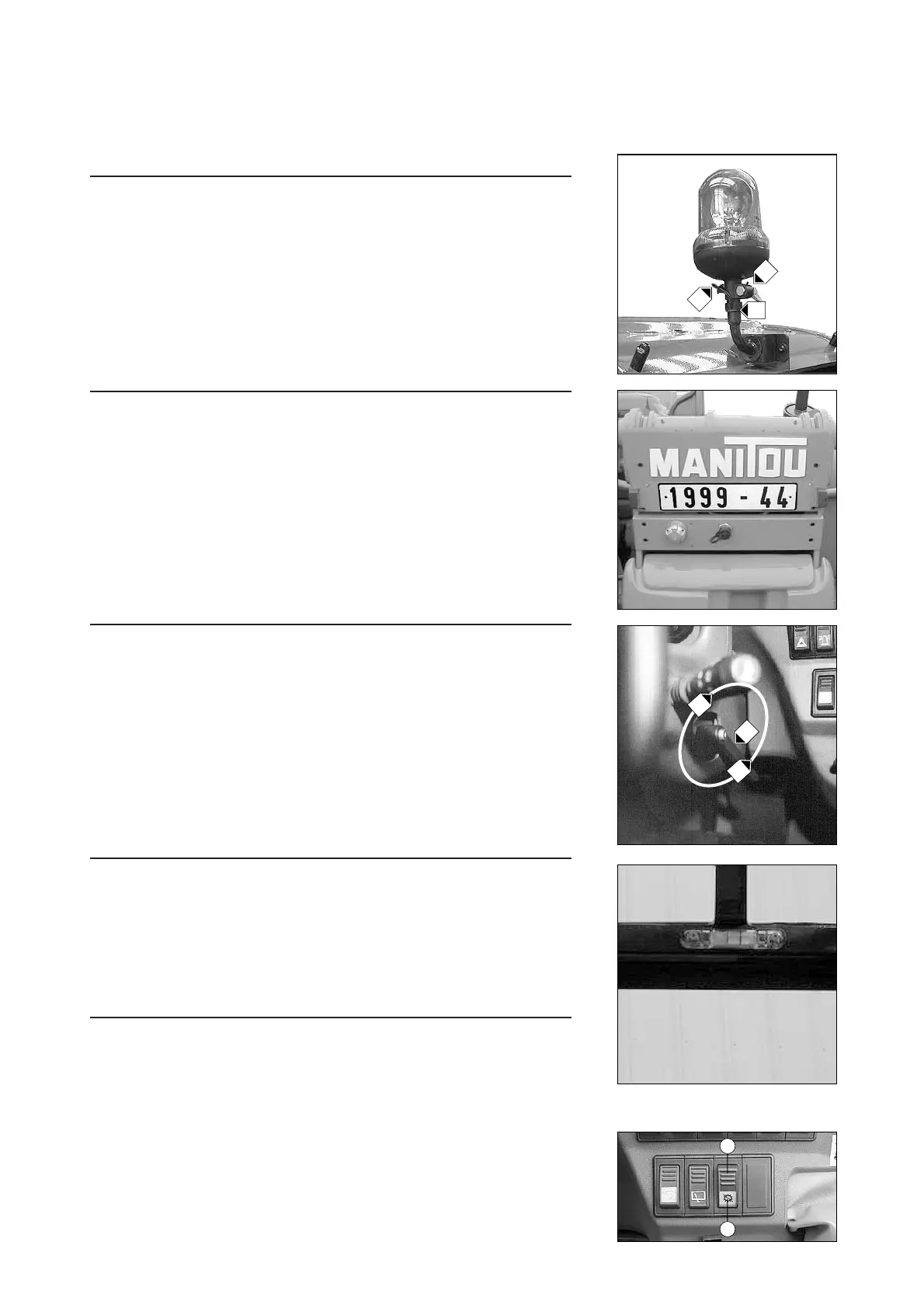

35 - REVOLVING LIGHT
The revolving light pivots for space-saving on the lift truck and can be
detached to prevent theft.
- Loosen nut 1 and remove the revolving light.
- Protect mounting 2 with cap 3.
36 - SERVICE PLATE (OPTION)
37 - S
TEERING WHEEL REGULATING HANDLE
This handle enables the angle and height of the steering wheel to be
adjusted.
- Turn handle 1 towards A to loosen and adjust steering wheel.
- Turn handle 1 towards B to lock steering wheel in the position required.
38 - SPIRIT LEVEL
Enables the operator to check that the lift truck is in the horizontal position.
39 - U
SE OF TRANSMISSION CUT-OFF
NOTE : In all cases transmission cut-off can be effected using the gear lever
TRANSMISSION CUT-OFF TO BRAKE PEDAL (POSITION A)
• When loading.
TRANSMISION CUT-OFF TO HYDRAULIC CONTROLS LEVER (POSITION B)
• When driving.
• For inching and continuous stopping and starting (Delicate
handling). In order to optimise hydraulic movements, cut off
transmission to the hydraulic controls lever.
• Starting up on a slope.
A
B
1
3
1
2
B
A
