Manitou A Series User Manual

2 - 76

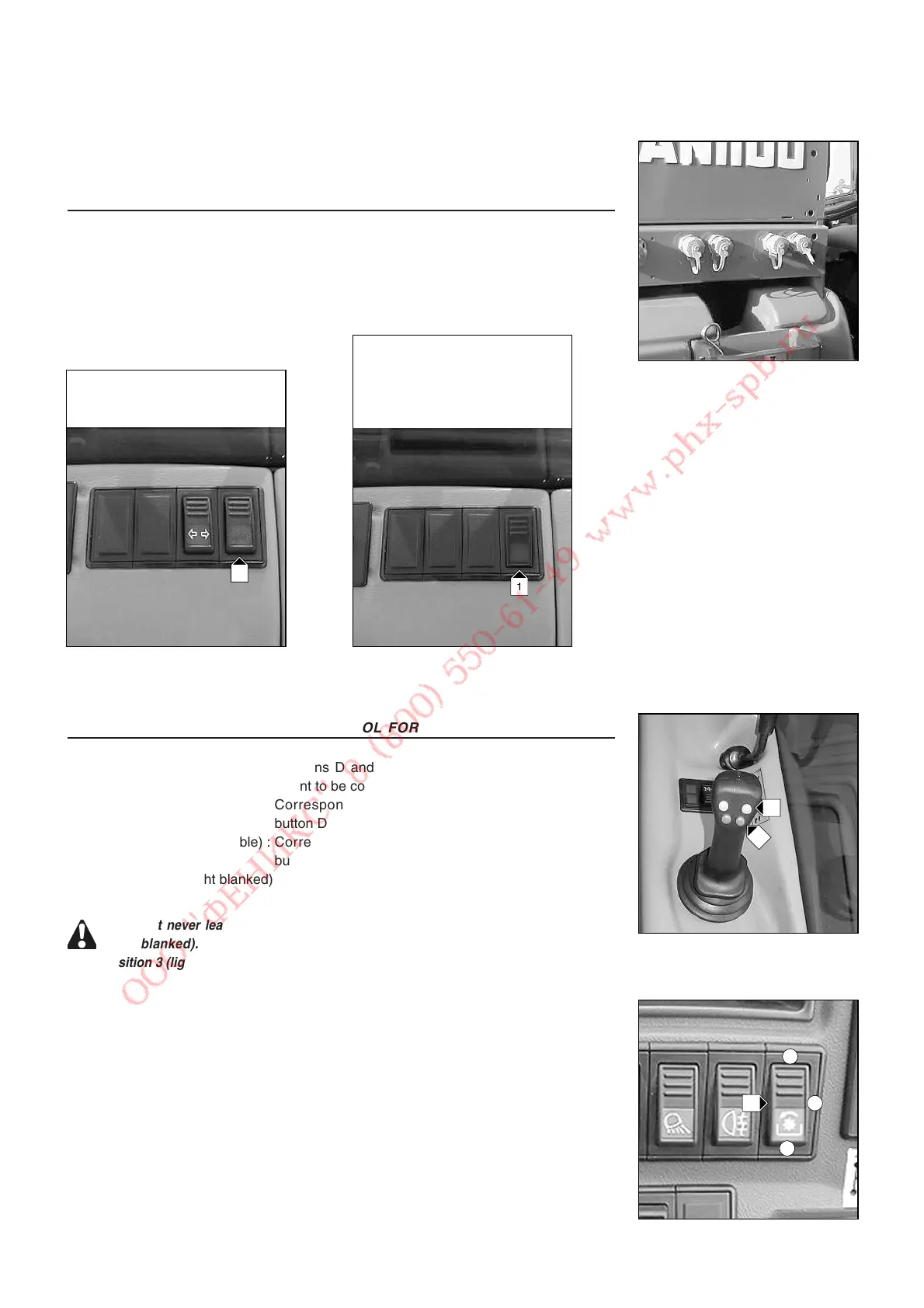

19 - DUAL EFFECT REAR HYDRAULIC CONTROL PREDISPOSITION +
SINGLE OR DUAL EFFECT REAR HYDRAULIC CONTROL
PREDISPOSITION
Switch 1 controls one or the other of the rear hydraulic predispositions.
20 - A
TTACHMENT HYDRAULIC CONTROL FORCED OPERATION SWITCH
Unlike the pulse controls of push-buttons D and E, this 3-position switch 1 allows the
hydraulic movements of the attachment to be controlled on a continual basis.
- Position 1 (light visible) : Corresponds to the movement controlled by push-
button D.
- Position 2 (light visible) : Corresponds to the movement controlled by push-
button E.
- Position 3 (light blanked) : Forced operation of attachment hydraulic control not
in use.
You must never leave the operator station before putting the switch into position 3
(light blanked). Before starting up the lift truck make sure that this switch is in
position 3 (light blanked).
1
MLT 629/730 Série A
MLT 629/730 Turbo Série A
MLT 730 Turbo POWERSHIFT Série A
MT 732/932 Série A
MT 732 Turbo Série A
1
MLT 629/633/730 -120 LS Série A
MLT 633/730 LS Turbo Série A
MLT 633/730 -120 LS POWERSHIFT Série A
D
E
3
1
2
1
