3 - 24
C8
1
2
C9
1
C7
1

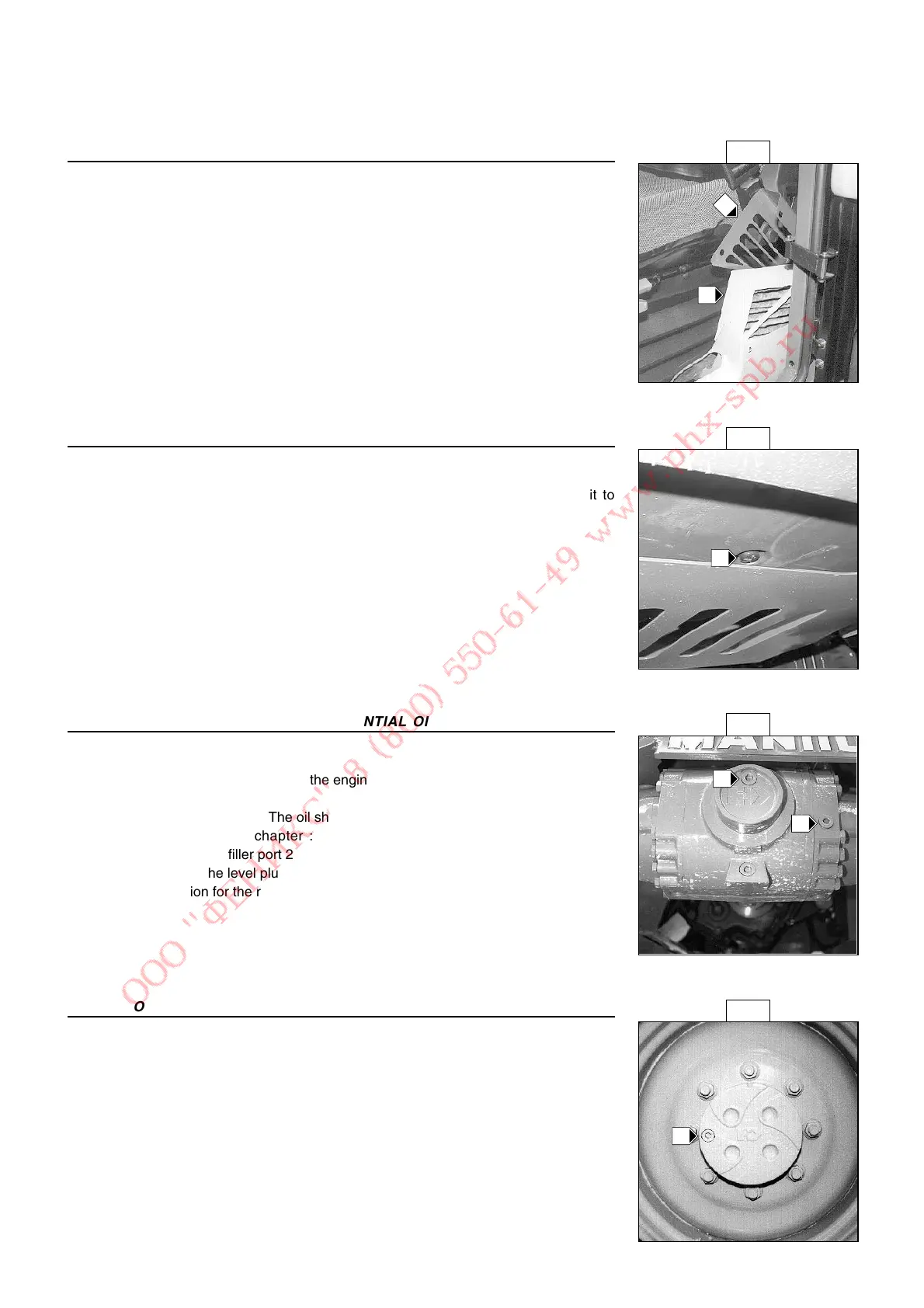

C6 - CAB VENTILATION FILTER (OPTION AIR CONDITIONING)
CHANGE
- Lift up protective casing 1 (Fig. C6).
- Lift out cabin ventilation filter 2 (Fig. C6) and fit new replacement filter (See chapter :
FILTERS CARTRIDGES AND BELTS in paragraph : 3 - MAINTENANCE).
- Refit the protective casing.
C7 - HEATING BLOCK NON-RETURN VALVE
CLEAN
- Since non-return valve 1 (Fig. C7) is located under the cab, it is possible for it to
become obstructed with spattered mud for example. Clean if necessary.
C8 - FRONT AND REAR AXLE DIFFERENTIAL OIL LEVEL
CHECK
Place the lift truck on level ground with the engine stopped.
- Remove level plug 1 (Fig. C8). The oil should be flush with the edge of the hole.
- If necessary, add oil (See chapter : LUBRICANTS AND FUEL in paragraph : 3 -
MAINTENANCE) by the filler port 2 (Fig. C8).
- Replace and tighten the level plug 1 (Fig. C8) (Tightening torque 34 to 49 N.m).
- Repeat this operation for the rear axle differential.
C9 - F
RONT AND REAR WHEELS REDUCERS OIL LEVEL
CHECK
Place the lift truck on level ground with the I.C. engine stopped.
- Check the level on each front wheel reducer.
- Place level plug 1 (Fig. C9) in the horizontal position.
- Remove the level plug ; the oil should be flush with the edge of the hole.
- If necessary, add oil (See chapter : LUBRICANTS AND FUEL in paragraph : 3 -
MAINTENANCE) by the same hole.
- Replace and tighten the level plug 1 (Fig. C9) (Tightening torque 34 to 49 N.m).
- Repeat the same operation on each rear wheel reducer.
C6
1
2
