Manitou A Series - Page 147

G4/3
3 - 42
G3 - LIFT TRUCK
TOW
Do not tow the lift truck at more than 25 km/h.
- Put the forward/reverse lever and the gear shift in neutral (As model of lift truck).
- Release the parking brake.
- Put the warning lights on.
- If the I.C. engine is not running there will be no steering or braking assistance. Operate the steering and pedal slowly avoiding
sudden jerky movements.
G4 - LIFT TRUCK
SLING

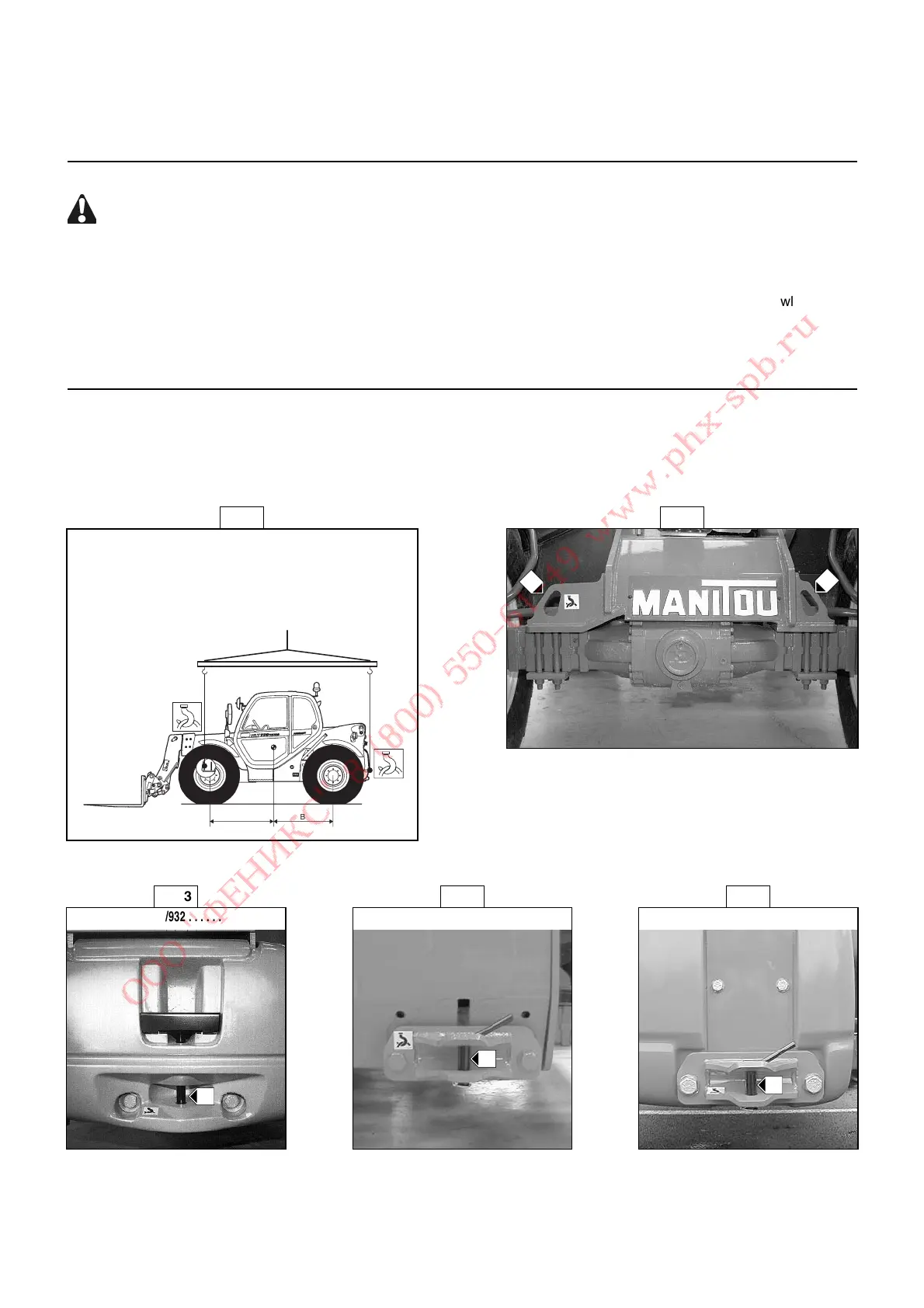

- Take into account the position of the lift truck gravity center for lifting (Fig. G4/1).
- Place the hooks in the fastening points provided (Fig. G4/2 and G4/3).
A B
G4/1 G4/2
A = 1290 mm B = 1270 mm MLT 629 . .....
A = 1445 mm B = 1115 mm MLT 633 . .....
A = 1370 mm B = 1190 mm MLT 730 . .....
A = 1480 mm B = 1080 mm MT 732 . .....
A = 1465 mm B = 1095 mm MT 932 Série A
G4/3 G4/3
MLT 629 . ..... MLT 633/730 . .....MT 732/932 . .....
