A - ATTACHMENT WITHOUT HYDRAULICS AND HAND LOCKING DEVICE

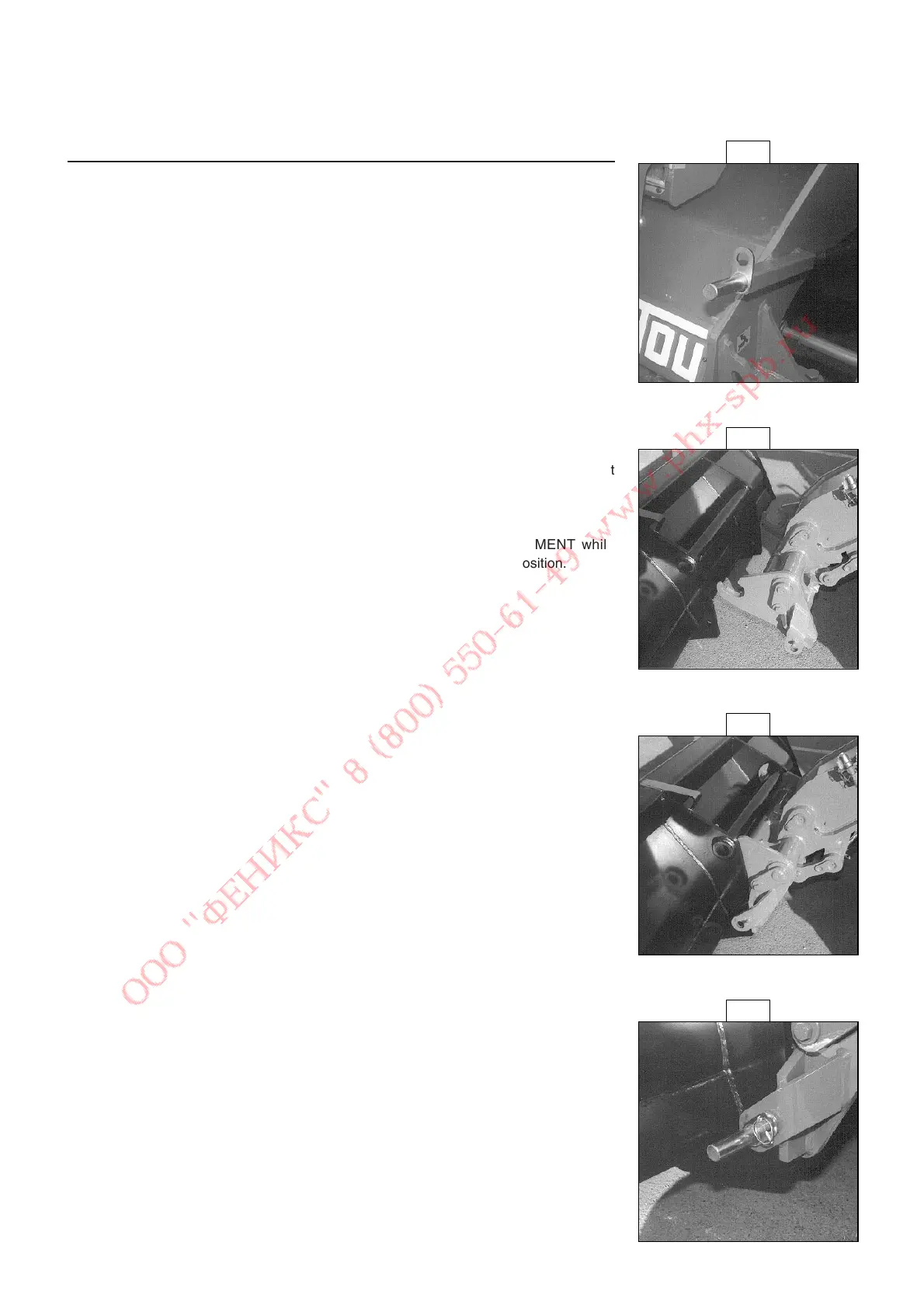

TAKING UP AN ATTACHMENT
- Ensure that the attachment is in a position facilitating the locking to the carriage. If it is
not correctly oriented, take the necessary precautions in order to move it safely.
- Check that the locking pin and the clip are in position in the bracket (Fig. A).
- Place the lift truck with the jib lowered in front of and parallel to the attachment, tilt the
carriage forwards (Fig. B).
- Bring the carriage under the locking tube of the attachment, slightly lift the jib, incline
the carriage backwards in order to position the attachment (Fig. C).
- Lift the attachment off the ground to facilitate locking.
HAND LOCKING
- Take the locking pin and the clip on the bracket (Fig. A) and lock the attachment (Fig.
D). Do not forget to refit the clip.
HAND RELEASING
- Proceed in the reverse order of paragraph HAND LOCKING while making sure you put
back the locking pin and the clip in the bracket (Fig. A).
LAYING AN ATTACHMENT
- Proceed in the reverse order of paragraph TAKING UP AN ATTACHMENT while
making sure you place the attachment flat on the ground and in closed position.
B
C
D
A
