3 - 34
F - EVERY 2000 HOURS SERVICE
Carry out the operations described previously as well as the following operations.
F1 - COOLING LIQUID
DRAIN
These operations are to be carried out if necessary or every two years at the beginning of
winter. Place the lift truck on level ground with the I.C. engine stopped and cold.
DRAINING THE LIQUID
- Open the I.C. engine bonnet.

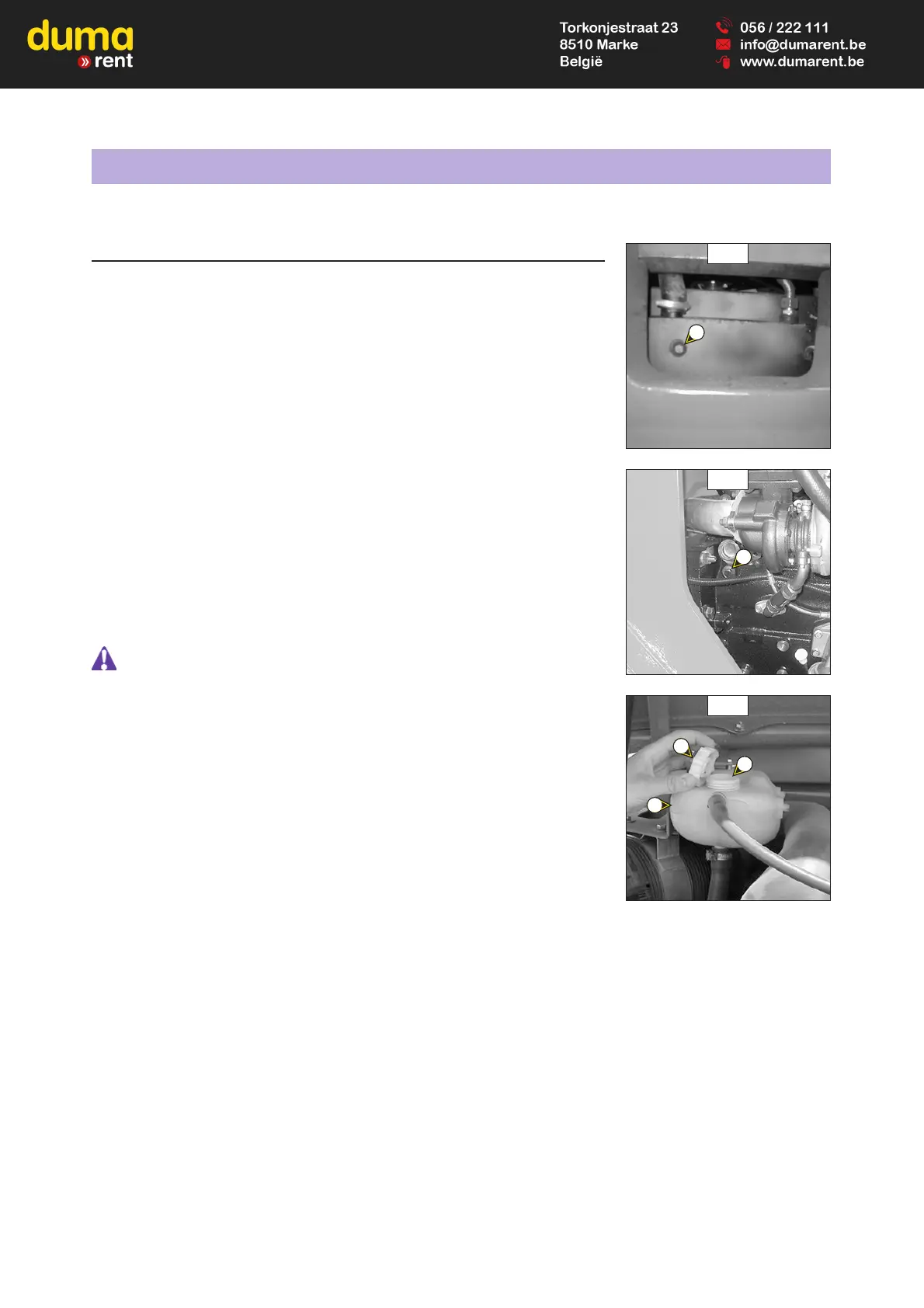

- Place a container under drain plug 1 (fig. F1/1) of the radiator and drain plug 2 (fig. F1/2)
of the I.C. engine block and unscrew the plugs.
- Remove filler cap 3 (fig. F1/3) of the expansion pan 4 (fig. F1/3).
- Let the cooling circuit drain entirely while ensuring that the ports do not get clogged.
- Check the condition of the hoses as well as the fastening devices and change the hoses
if necessary.
- Rinse the circuit with clean water and use a cleaning agent if necessary.
FILLING THE LIQUID
- Retighten drain plug 1 (fig. F1/1) (tightening torque 20 N.m) and 3 (fig. F1/3) (tightening
torque 40 N.m).
- Slowly fill up the cooling circuit (see: 3 - MAINTENANCE: LUBRICANTS AND FUEL) to half
way up the expansion pan 5 (fig. F1/3) through filler port 5 (fig. F1/3).
- Put back filler cap 3 (fig. F1/3).
- Run the I.C. engine at idle for a few minutes.
- Check for any possible leaks.
- Check the level and refill if necessary.
The I.C. engine does not contain any corrosion resistor and must be filled during the whole
year with a mixture containing 25 % of ethylene glycol-based antifreeze.
F1/1
F1/2
F1/3
2
1
3
5
4
