3 - 17

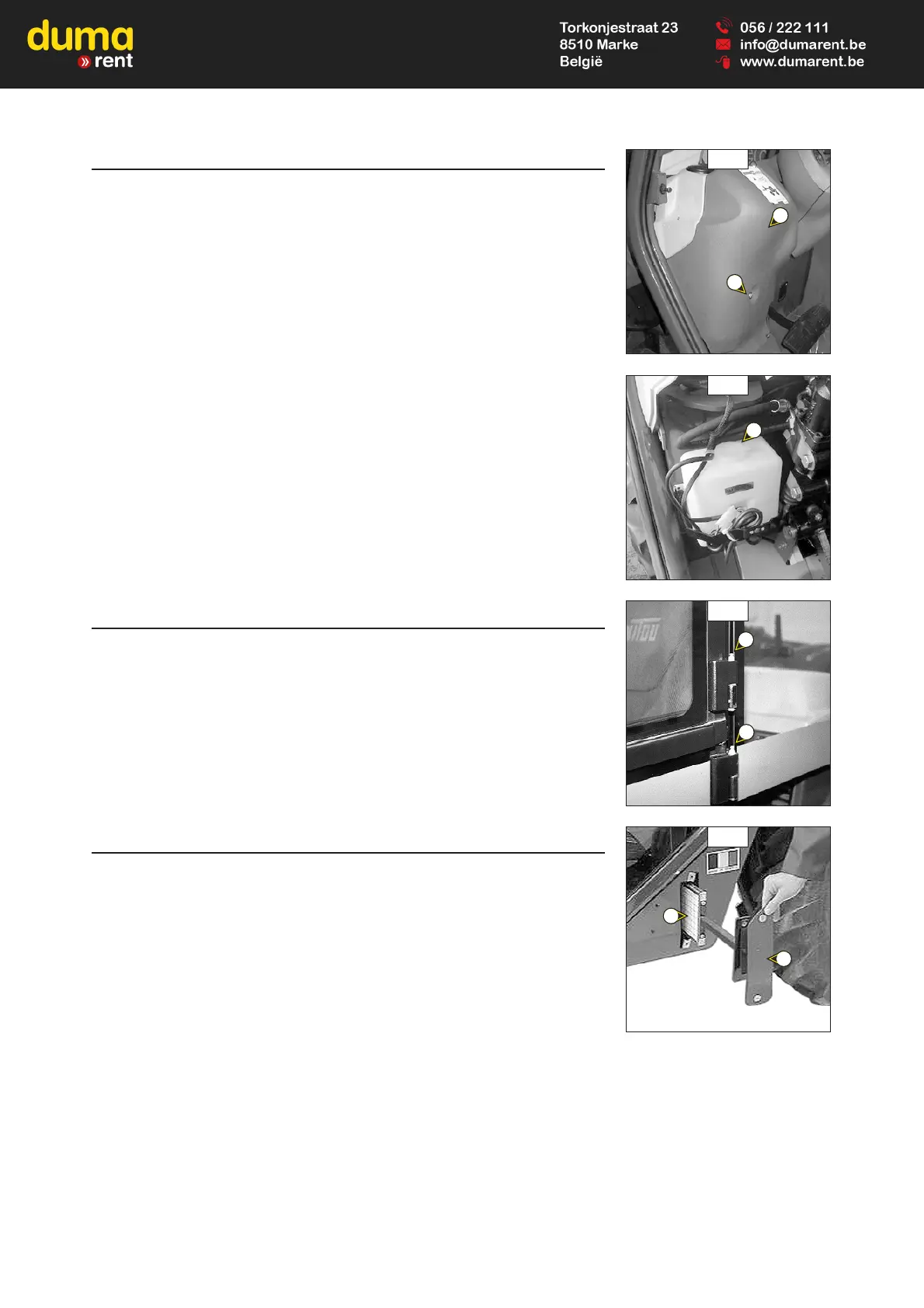

B7 - WINDSCREEN WASHER LIQUID LEVEL
CHECK
- Loosen screw 1 (fig. B7/1) and remove the access panel for braking oil tank and
windscreen washer tank 2 (fig. B7/1).
- Check visually the level.
- If necessary add windscreen washer liquid (see: 3 - MAINTENANCE: LUBRICANTS AND
FUEL) by filler port 3 (fig. B7/2).
B8 - CAB DOOR
GREASE
STANDARD
MLT 523 Turbo Série B-E2
MLT 523 Turbo MONO-ULTRA Série B-E2
OPTION
MT 523 Série B-E2
MT 523 Série MONO-ULTRA B-E2
MT 620 Série B-E2
Clean and lubricate the points 1 (4 lubricators) (fig. B8) with grease (see: 3 -
MAINTENANCE: LUBRICANTS AND FUEL) and remove the surplus of grease.
B9 - CAB VENTILATION FILTER (OPTION AIR CONDITIONING)
CLEAN
MLT 523 Turbo Série B-E2
MLT 523 Turbo MONO-ULTRA Série B-E2
- Lift up protective casing 1 (fig. B9).
- Lift out cabin ventilation filter 2 (fig. B9).
- Clean the filter with a compressed air jet.
- Check its condition and change if necessary (see: 3 - MAINTENANCE: FILTERS
CARTRIDGES AND BELTS).
- Refit the filter and protective casing.
B7/1
B7/2
B8
2
1
3
1
1
B9
1
2
