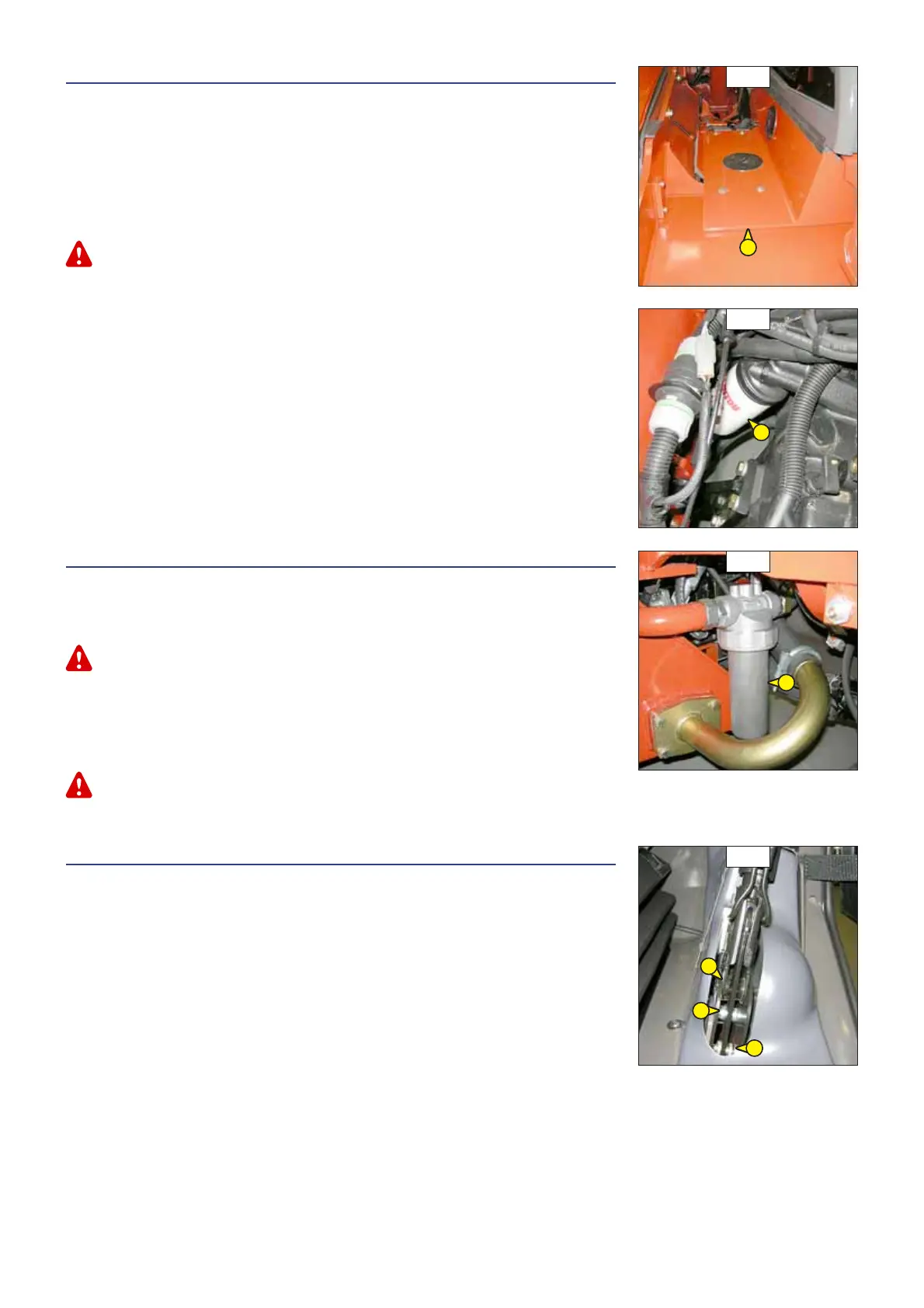

D7 - GEAR BOX OIL FILTER
CHANGE
- Remove the cover plate 1 (fig. D7/1).
- Unscrew and discard gear box oil filter 2 (fig. D7/2).
- Carefully clean the filter head with a clean, lint-free cloth.
- Slightly lubricate the new seal and fit the seal on the filter.
- Fill up the new gear box oil filter (see: 3 - MAINTENANCE: FILTERS CARTRIDGES AND BELTS) with
oil (see: 3 - MAINTENANCE: LUBRICANTS AND FUEL).
- Refit the filter, making sure that the seal is correctly positioned and tightened.
Tighten the gear box oil filter by hand pressure only and lock the filter in place by a quarter turn.
- Put back the cover plate 1 (fig. D7/1).
D8 - HYDRAULIC RETURN OIL FILTER CARTRIDGE
CHANGE
Stop the I.C. engine and remove the pressure from the circuits by acting on the hydraulic
controls.
Thoroughly clean the outside of the filter and its surroundings before any intervention in order to prevent any
risk of polluting the hydraulic circuit.
- Place a container under hydraulic drain filter 1 (fig. D8).
- Unscrew the body of the filter.
- Remove the hydraulic return oil filter cartridge and fit new replacement cartridge (see:
3 - MAINTENANCE: FILTERS CARTRIDGES AND BELTS).
- Make sure that the cartridge is correctly positioned and refit the body of the filter.
Tighten the body of the filter by hand pressure only and lock the body of the filter in place by a quarter turn.
D9 - PARKING BRAKE LEVER MECHANISM
GREASE
- Clean and grease articulation axles 1 (fig. D9) with grease (see: 3 - MAINTENANCE: LUBRICANTS
AND FUEL).
D7/1
2
D7/1
1
D8
1
D9
1
1
1
