10 - HYDRAULIC ATTACHMENT LOCKING
Enables the attachment to be locked onto the carriage and a hydraulic attachment to be used
by the same hydraulic circuit.
MT 732 Série E-E3
MT 932 Série E-E3

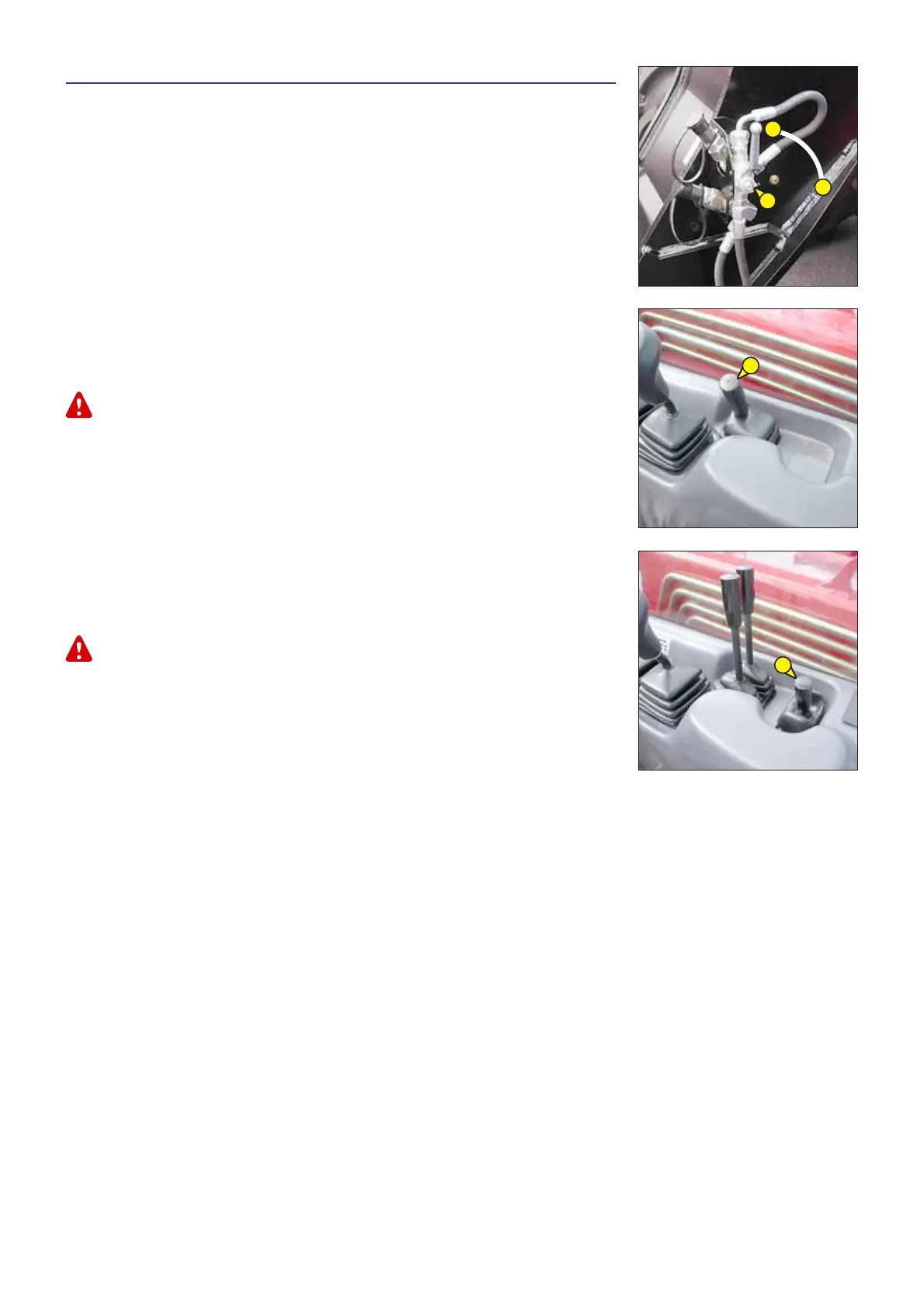

ATTACHMENT LOCKING CONTROL
- Set valve 1 to position A.
- Move the lever 2 to the right to lock the attachment or to the left to unlock the attachment.
After locking the attachment, return valve 1 to position B to prevent accidental release of the attachment.
NOTE: Set lever 1 to position B to control the hydraulic attachment line (see: 2 - DESCRIPTION: 18
- HYDRAULIC CONTROLS AND TRANSMISSION CUT-OFF).
MT 1030 S Turbo Série 5-E3
HYDRAULIC ATTACHMENT CONTROL
- Set valve 1 to position A.
- Lift and move the lever 2 to the right to lock the attachment or to the left to unlock the
attachment.
After locking the attachment, return valve 1 to position B to prevent accidental release of the attachment.
NOTE: Set lever 1 to position B to control the hydraulic attachment line (see: 2 - DESCRIPTION: 18
- HYDRAULIC CONTROLS AND TRANSMISSION CUT-OFF).
A
B
1
2
2
647083 EN (21/06/2011)
