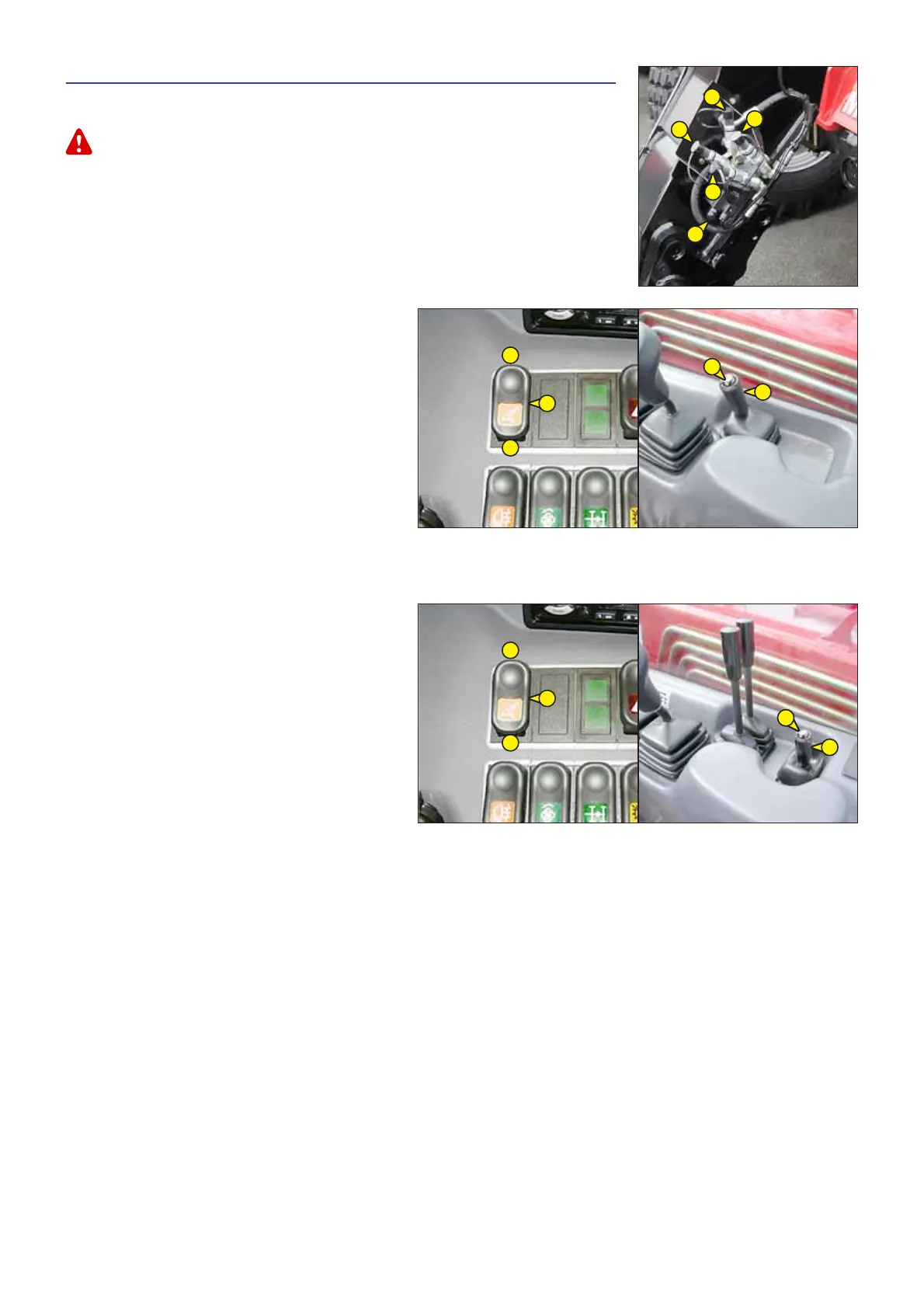

9 - JIB HEAD ELECTROVALVE
Enables use of two hydraulic functions on the attachment circuit.
To make connection of the rapid connectors easier, decompress the hydraulic circuit by pressing button 1 on
the electrovalve.
MT 732 Série E-E3
MT 932 Série E-E3
ATTACHMENT LINE L1 CONTROL
- Set switch 2 to position A (indicator light off).
- Move the lever 3 to left or right.
NOTE: Attachment line L2 is not accessible, button 4 is
inoperative.
ATTACHMENT LINES L1 AND L2 CONTROL
- Set switch 2 to position B (indicator light on).
ATTACHMENT LINE L1
- Move the lever 3 to left or right.
ATTACHMENT LINE L2
- Hold button 4 down and move the lever 3 to left or
right.
MT 1030 S Turbo Série 5-E3
ATTACHMENT LINE L1 CONTROL
- Set switch 2 to position A (indicator light off).
- Lift and move the lever 3 to left or right.
NOTE: Attachment line L2 is not accessible, button 4 is
inoperative.
ATTACHMENT LINES L1 AND L2 CONTROL
- Set switch 2 to position B (indicator light on).
ATTACHMENT LINE L1
- Lift and move the lever 3 to left or right.
ATTACHMENT LINE L2
- Hold button 4 down, lift and move the lever 3 to left or
right.
L2
L1
L1
L2
1
2
B
A
4
3
2
B
A
4
3
