2-63

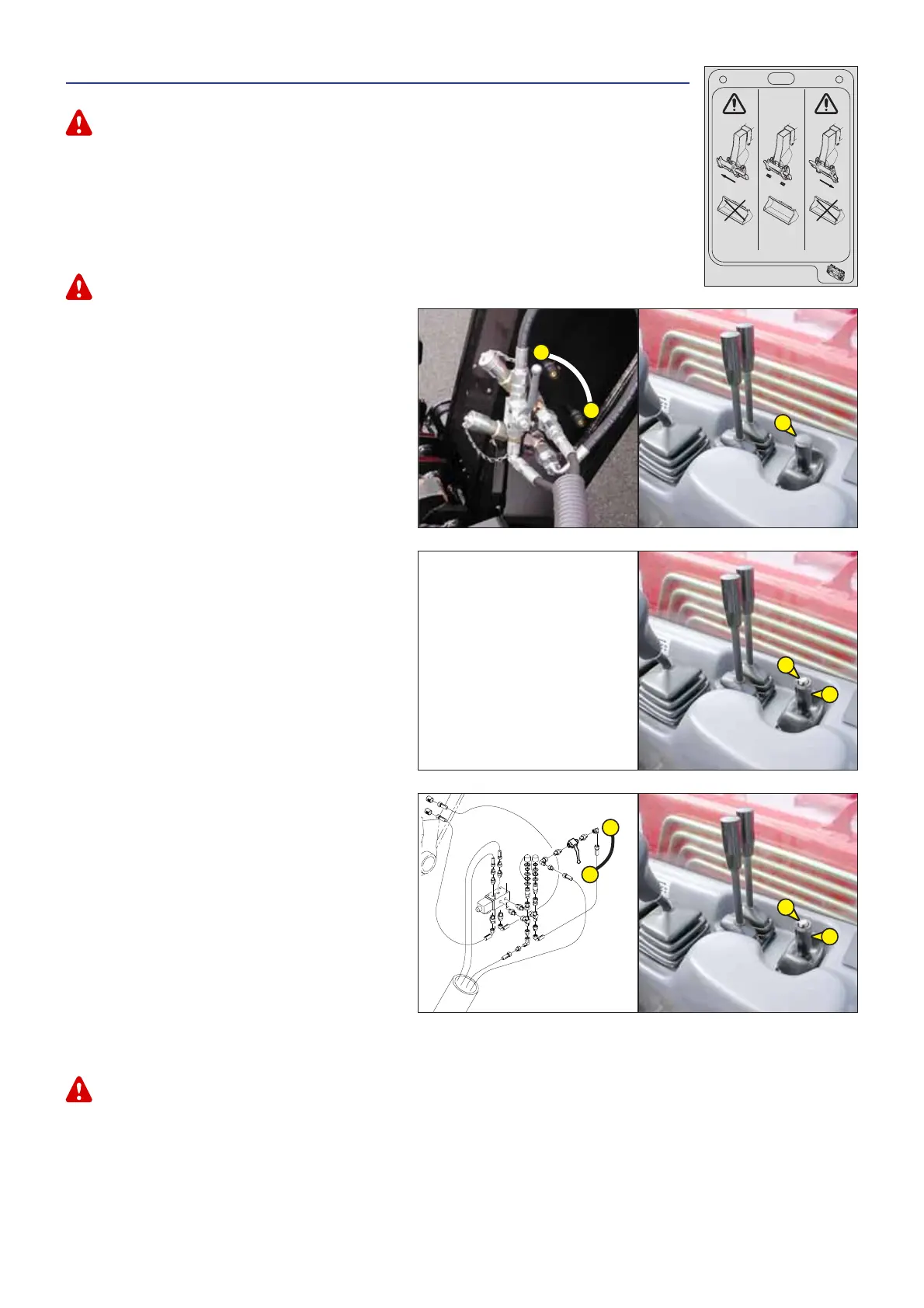

15 - SINGLE SIDE-SHIFT CARRIAGE (TSDL)
MT 1030 S Turbo Série 5-E3
The single side-shift carriage (TSDL) is only compatible with the following attachments:
floating fork carriage (TFF)
tilting fork carriage (PFB)
loading bucket (CBR)
concrete bucket (BB, BBG)
spout bucket (GL)
crane boom and crane boom with winch (P, PT, PO, PC)
winch (H)
It is prohibited to use any other attachments on the TSDL.
If it is being used with a loading bucket (CBR), the single side-shift carriage MUST be centred and no side-shift operations
performed.
WITH COUPLER ON BOOM HEAD
SINGLE SIDE-SHIFT CARRIAGE
- Put the valve in position A.
- Lift and move lever 1 to the left or right.
ATTACHMENT
- Put the valve in position B.
- Lift and move lever 1 to the left or right.
WITH BOOM HEAD ELECTROVALVE
SINGLE SIDE-SHIFT CARRIAGE
- Lift and move lever 1 to the left or right.
ATTACHMENT
- Hold down button 2, lift and move lever 1 to the left or
right.
WITH BOOM HEAD ELECTROVALVE +PREARRANGED
HYDRAULIC ATTACHMENT LOCKING
SINGLE SIDE-SHIFT CARRIAGE
- Lift and move lever 1 to the left or right.
ATTACHMENT
- Put the valve in position A.
- Hold down button 2, lift and move lever 1 to the left or
right.
PREARRANGED HYDRAULIC ATTACHMENT LOCKING
- Put the valve in position B.
- Hold down button 2, lift and move lever 2 to the right
to lock the attachment or to the right to unlock the
attachment.
Once the attachment is locked, return valve to position B to prevent accidental release of the attachment.
N°241645
TSDL
A
B
1
2
1
2
1
B
A
647083 EN (21/06/2011)
